Moving the Cursors (Cursor1/Cursor2)
Use Cursor1 and Cursor2 to move the cursors.
Taking the center of the waveform display window to be 0 div, you can move the cursors within the range of −5 to
5 div in 0.01 div steps.
Measurement Items (Item Setup)
You can measure the following vertical values at the cursor positions.
Y1 Vertical value at Cursor1
Y2 Vertical value at Cursor2
ΔY Difference between the vertical values of Cursor1 and Cursor2

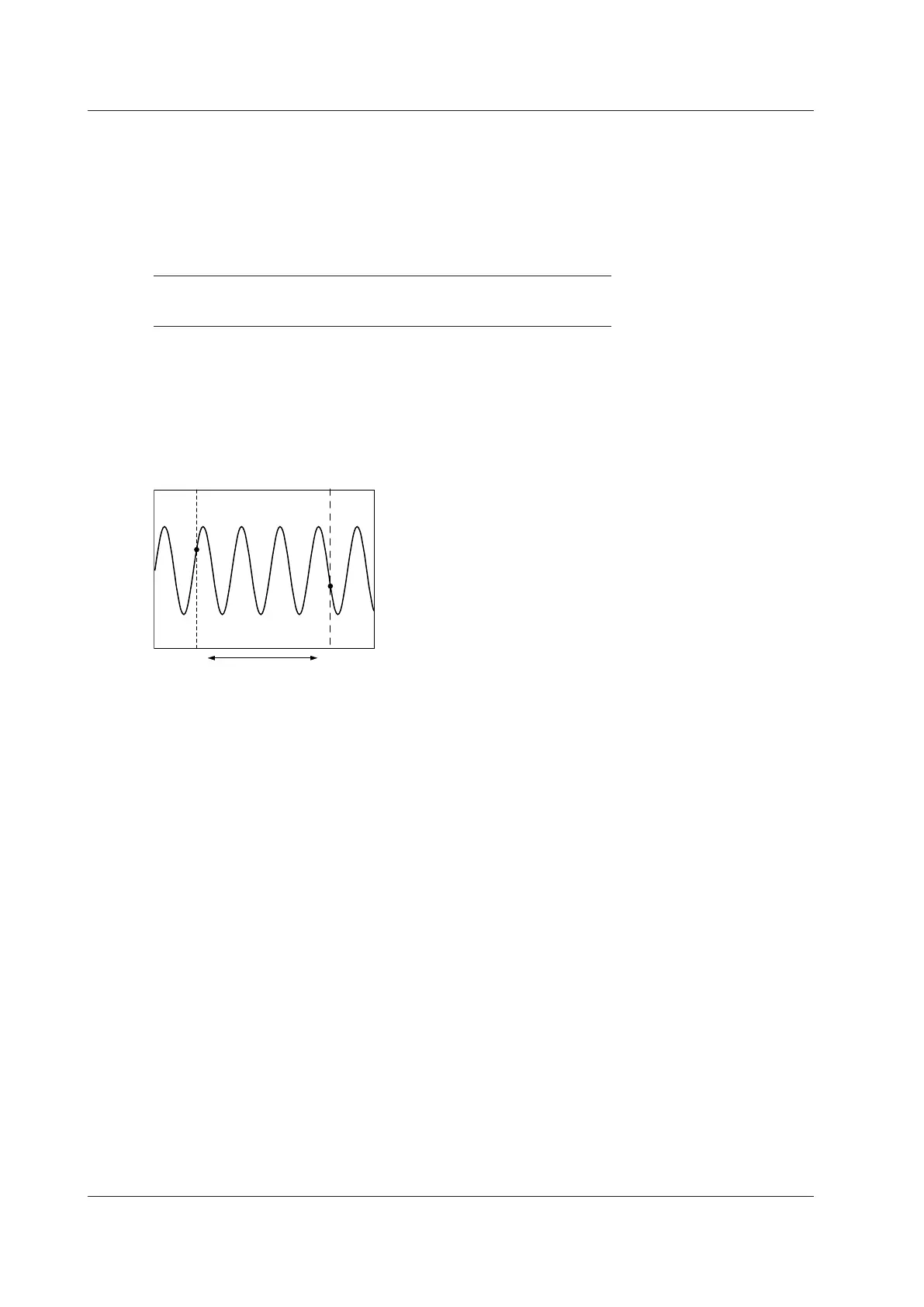

Vertical Cursors (Vertical) - T-Y waveforms
Two straight dashed lines appear on the vertical axis (these are the vertical cursors). You can measure the time
between the trigger position and each cursor, the time difference between the two cursors, and the reciprocal
of the time difference between the two cursors. You can also measure the vertical signal value at each cursor
position and the level difference between the two cursors.
Cursor1 Cursor2
ΔX
X1 X2
Measurement Source Waveform (Trace)
Set the measurement source waveform to one of the waveforms below.
CH1 to CH16,
1
16chVOLT,
2
16chTEMP/VOLT,
2
CAN,
3
LIN,
3
Math1 to Math8, All
4
1 You can select the channel of an installed module.
2 When a 16-CH voltage input module or 16-CH temperature/voltage input module is installed. After you select
16chVOLT or 16chTEMP/VOLT, select a sub channel.
3 On the DL850EV when a CAN bus monitor module or CAN & LIN bus monitor module is installed. After you
select CAN or LIN, select a sub channel.
4 Cursor measurement is performed on all channels. However, measured values that do not fit on the screen
are not displayed.
Moving the Cursors (Cursor1/Cursor2)
Use Cursor1 and Cursor2 to move the cursors.
T
aking the
center of the waveform display window to be 0 div, you can move the cursors within the range of −5 to
5 div in steps of the following size: Time/div × 10 ÷ display record length.
Cursor Jumping (Cursor Jump)
You can make Cursor1 and Cursor2 jump to the center of the specified zoom window.
Cursor1 to Zoom1: Cursor1 jumps to the Zoom1 window.
Cursor1 to Zoom2: Cursor1 jumps to the Zoom2 window.
Cursor2 to Zoom1: Cursor2 jumps to the Zoom1 window.
Cursor2 to Zoom2: Cursor2 jumps to the Zoom2 window.
9 Cursor Measurement
