YOKOGAWA ScopeCorder DL850E User Manual

10-3
IM DL850E-01EN

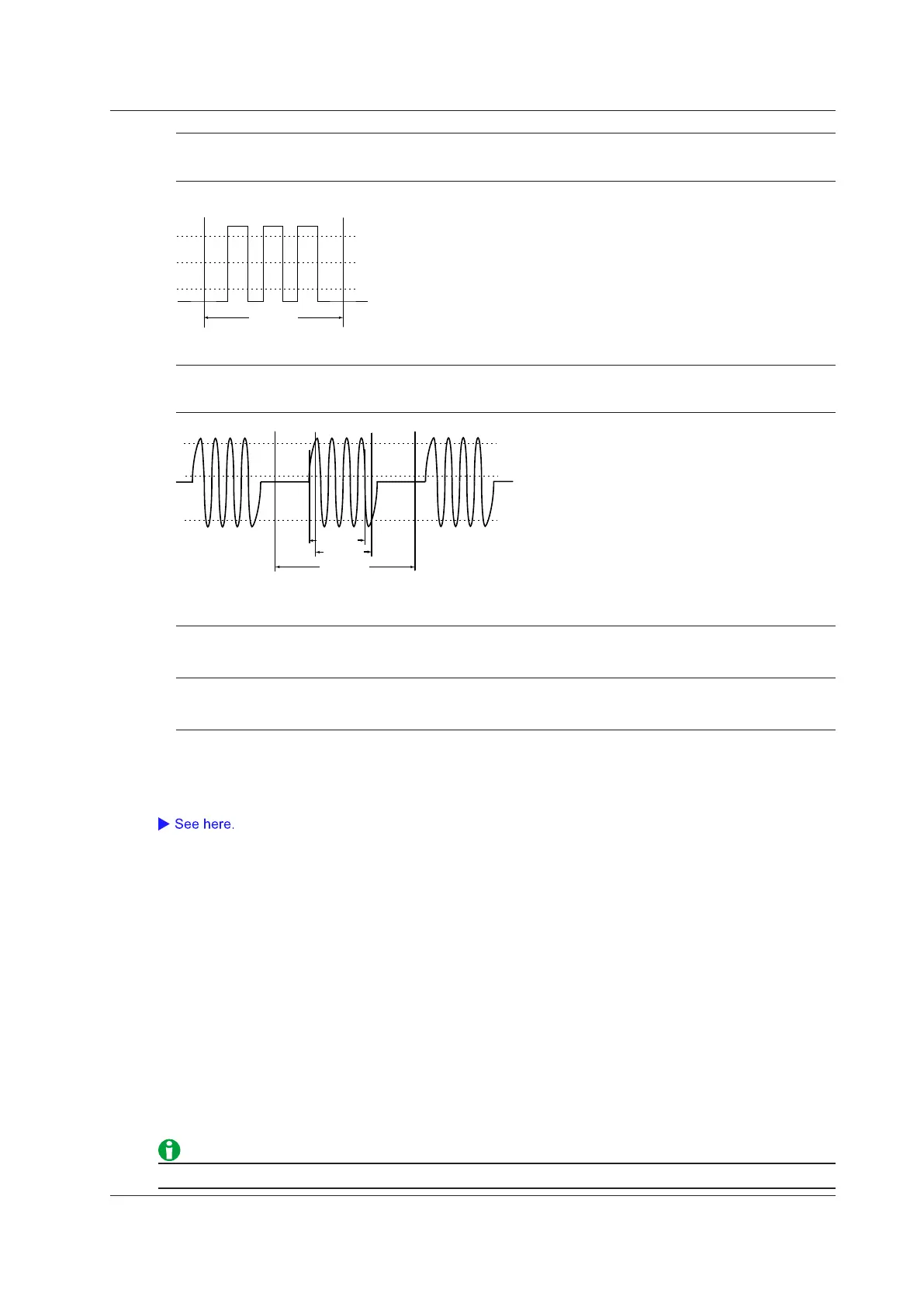

Pulse Pulse count
Set the measurement time period (Time Range) to a value appropriate for the pulse that you
want to measure.
Period
Mesial line (50%)
When Pulse = 3
Distal line (90%)
Proximal line (10%)
T1
T2
Burst1 and Burst2 Burst period [s]
Set the measurement time period (Time Range) to a value appropriate for the burst period
that you want to measure.
Burst1
Distal line (90%)
Proximal line (10%)
Period
T1 T2
Mesial line (50%)
Burst2
• Other Measurement Items
When Trace Is Set to CH, Sub Channel, or Math
Integ1TY(Integ1) Area of the positive amplitude
Integ2TY(Integ2)
Area of the positive amplitude
−
area of the negative amplitude
When Trace Is Set to XY
Integ1XY(Integ1) Total triangular area of the X-Y waveform
Integ2XY(Integ2) Total trapezoidal area of the X-Y waveform
* The names in parentheses are the measurement item names that appear when the measured values
are displayed.
For detailed information about how the area of the X-Y waveform is computed, see Appendix 1, “How to
Calculate the Area of a Waveform.”
All Clear (All Clear)
You can turn off all the items for the waveform selected for Trace at once.
Copy (Copy to)
You can copy the settings of the waveform selected for Trace to other traces.
•
You can turn the following channels on and off separately: CH1 to CH16,
1
16chVOLT,
2
16chTEMP/VOLT,
2
CAN,
3
LIN,
3
Math1 to Math8.
1 You can select the channel of an installed module. For logic modules, settings are copied between logic
modules.
2 When a 16-CH voltage input module or 16-CH temperature/voltage input module is installed. After you
select 16chVOLT or 16chTEMP/VOL
T, select a sub channel.
3 On the DL850EV when a CAN bus monitor module or CAN & LIN bus monitor module is installed. After
you select CAN or LIN, select a sub channel. You cannot select waveforms whose data type (V
alue Type)
is set to Logic.
•
All ON: All traces are turned on.
• All OFF: All traces are turned off.
•
Execute: Select Execute to copy the settings.
When Trace is set to XY, All Clear and Copy to are not available.
10 Automated Measurement of Waveform Parameters
