YOKOGAWA ScopeCorder DL850E

To Next Page

To Previous Page

2-38

IM DL850E-01EN

Pull Up (Pull Up)

You can choose whether to enable the pull-up function only when Preset is set to Pull-up 5V. You cannot

configure the pull-up setting when another preset is selected.

If you enable the pull-up function, set the input voltage to a value from 0 V to 5 V. If you apply a voltage that is

outside of this range, the internal protection circuit will cut off the pull-up circuit.

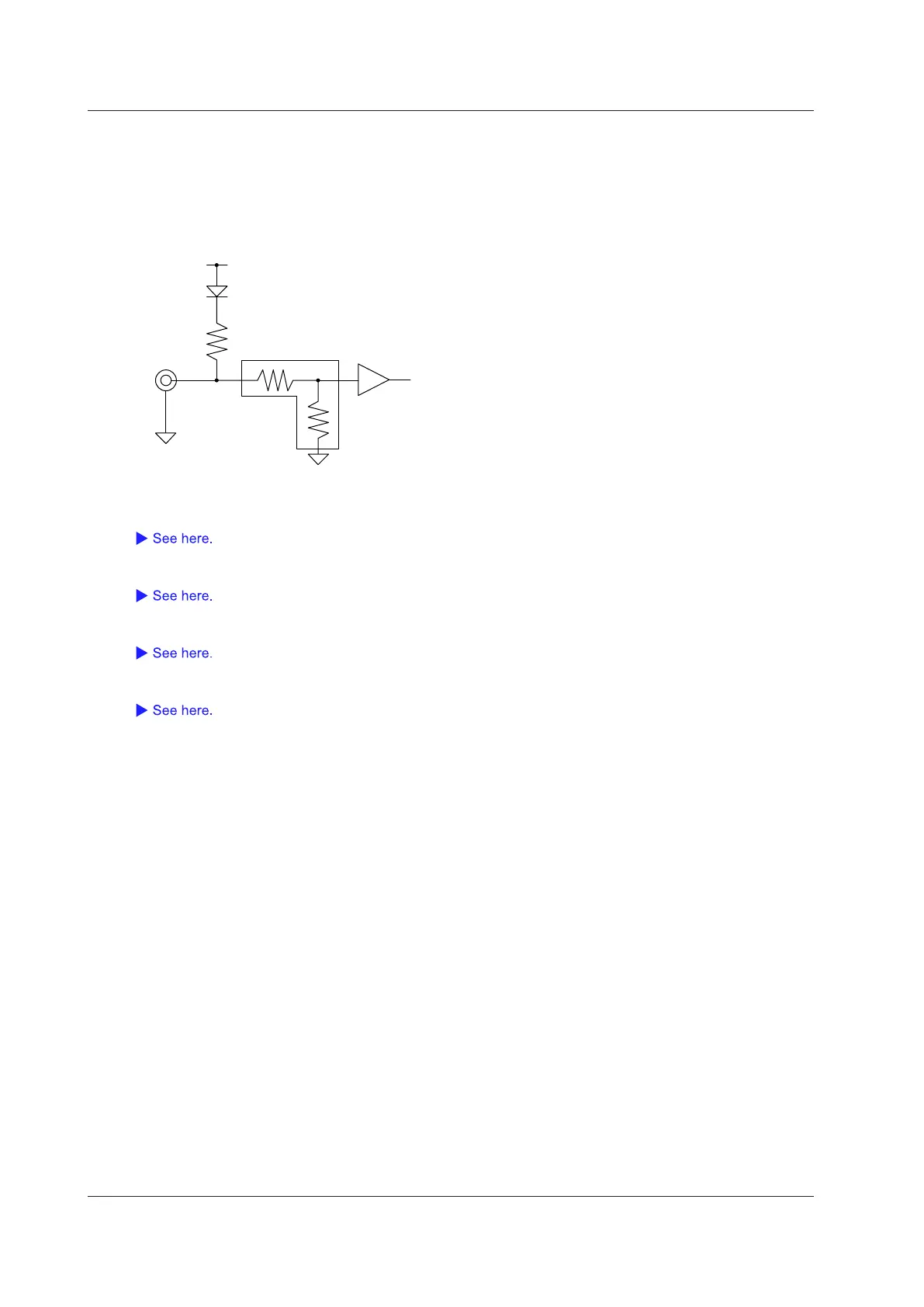

Internal Equivalent Circuit for When the Pull-up Function Is Enabled

+5 V

4.7 kΩ

990 kΩ

10 kΩ

Zoom Method (V Scale), Zooming by Setting a Magnification (V Zoom), Zooming by

Setting Upper and Lower Display Limits (Upper/Lower)

Offset (Offset)

Trace Settings (Trace Setup)

Linear Scaling (Linear Scale)

2 Vertical Axis
