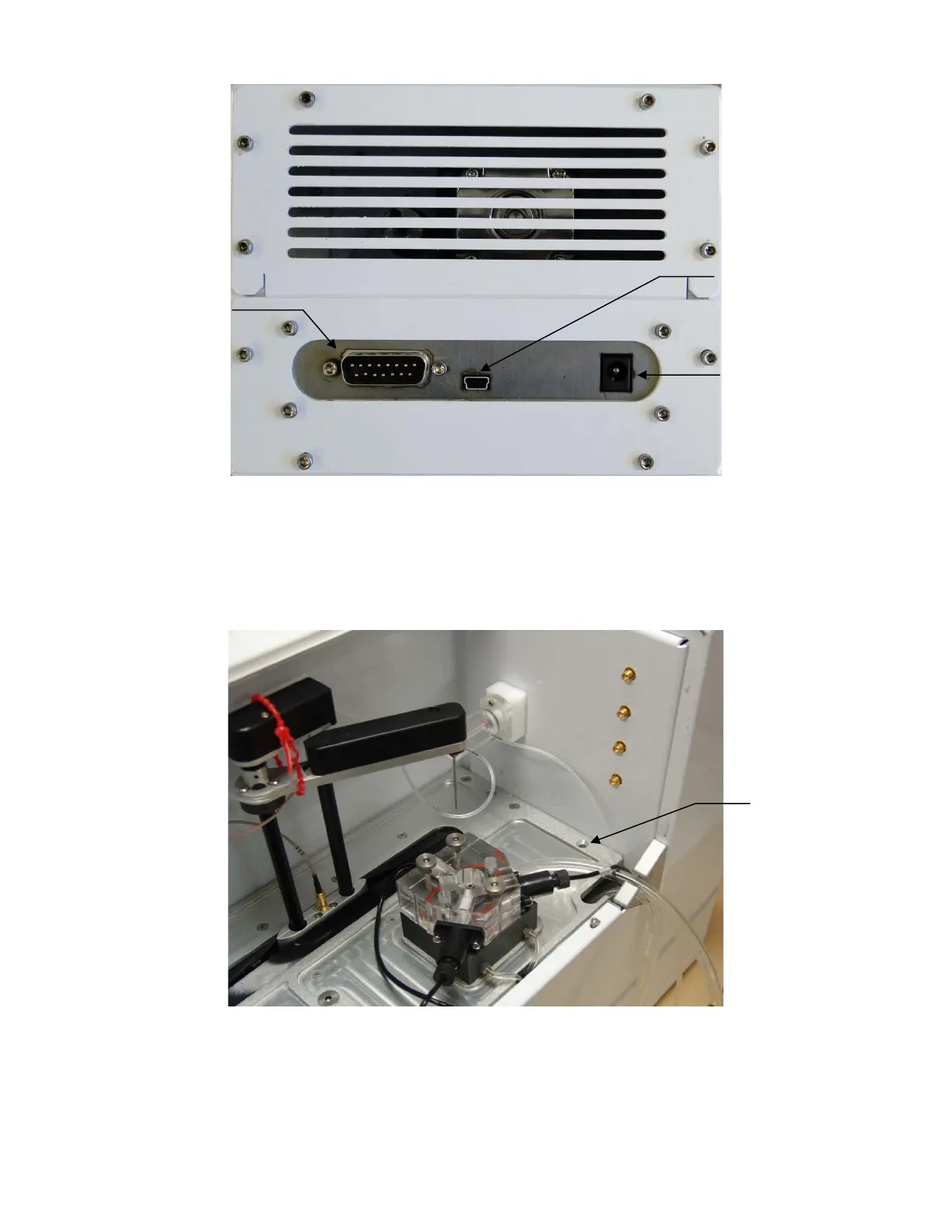

Rear panel of 2960 Online Monitor
Figure 6.2
3. Install the correct AC plug for your location onto the 2960 power supply, then plug the power supply into an AC
power outlet.
4. Connect the cable from the power supply to the power socket on the back of the 2960.
5. Using a 3/32” Allen hex wrench, remove the screw from the right rear of the 2900 Series deck as shown below.
Discard the screw.
Figure 6.3
6. Using a 9/64” Allen hex wrench and the long hex screw provided with the 2960, install the Monitor Sample Cup on
the 2900 Series deck (see figure below).
Connection
Connection
Connection
screw
