16
2. Remove access door.

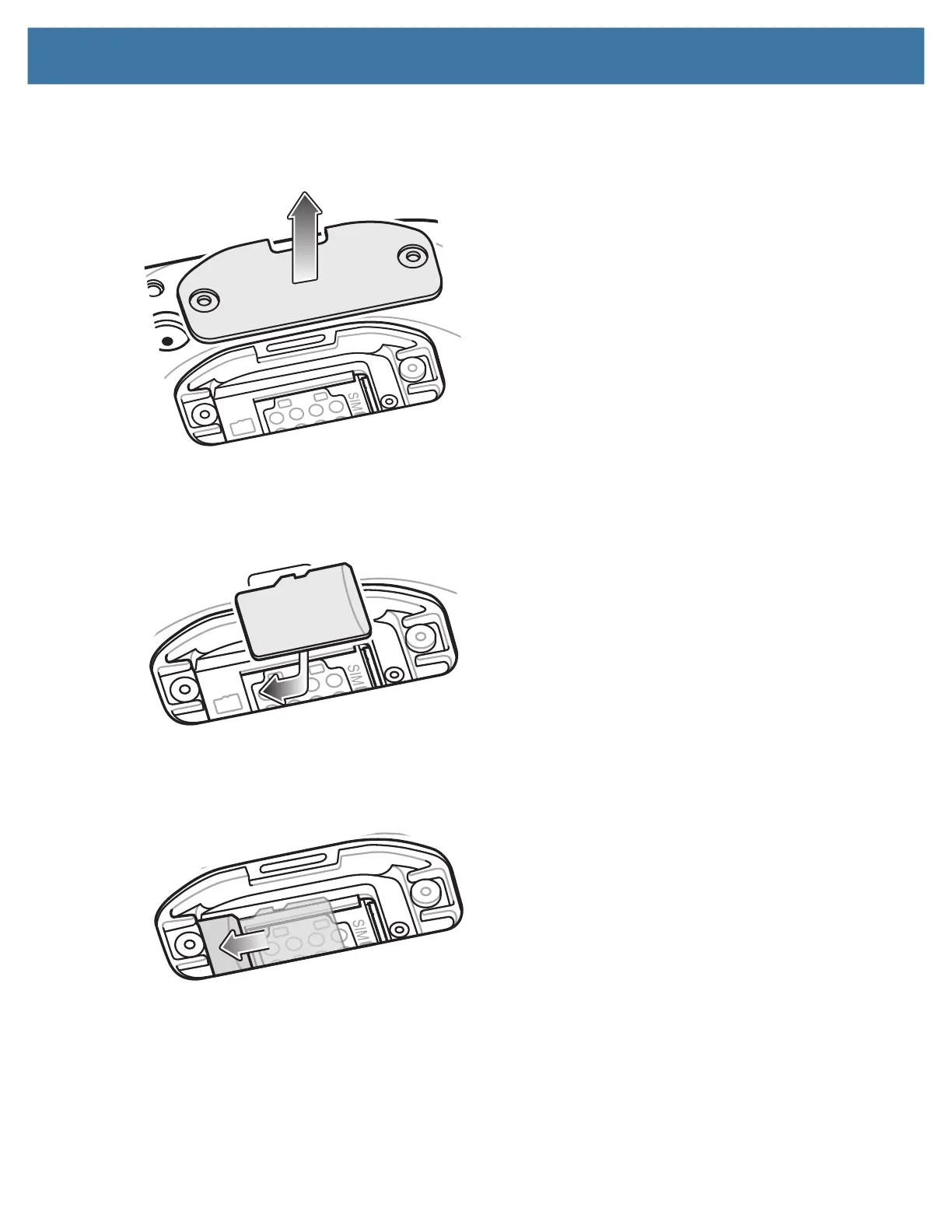

Figure 3 Remove Access Door
3. Align the microSD card with the SD card slot.
Figure 4 Align microSD Card
4. Push the microSD card into the SD card slot.
Figure 5 Push microSD Card into the SD Card Slot
5. Replace the access Door.
6. Secure the access door using the two screws.
To Next Page
