Technical Specifications
164
2-Pin I/O Connector Pin-Outs

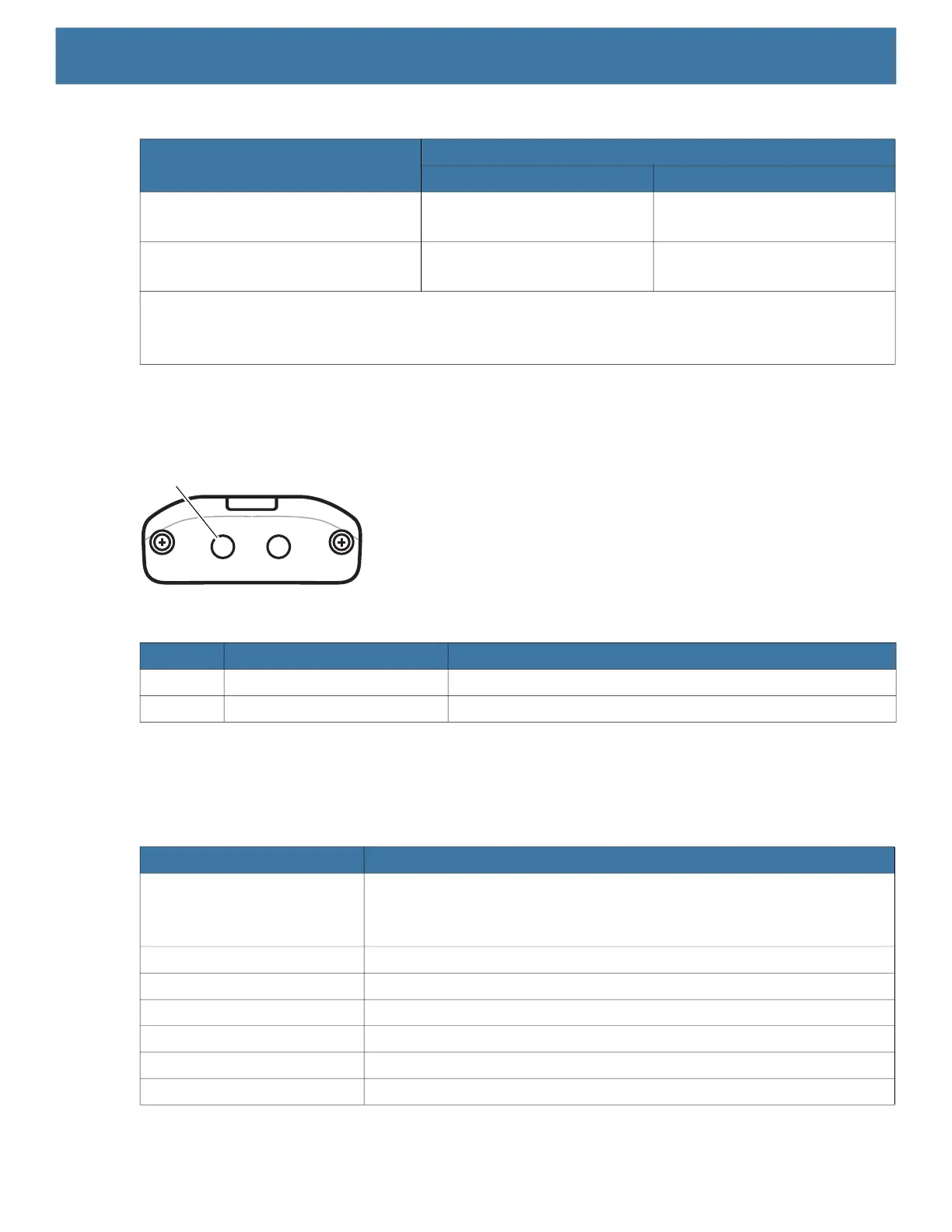

Figure 111 I/O Connector
1-Slot Base Charge Only Cradle Technical Specifications
100% UPCA 1.6 in.
4.1 cm*
21.7 in.
55.2 cm
20 mil Code 39 1.8 in.
4.6 cm*
27.5 in.
69.9 cm
*Limited by width of bar code in field of view.
Notes: Photographic quality bar code at 15° tilt pitch angle under 30 fcd ambient illumination.
Distances measured from front edge of scan engine chassis.
Table 14 SE4710 Decode Distances (Continued)
Symbol Density/ Bar Code Type
Typical Working Ranges
Near Far
Table 15 2-Pin I/O Connector Pin-Outs
Pin Signal Description
1 TRIG Trigger
2 GND Ground
Pin 1
Table 16 1-Slot Base Charge Only Cradle Technical Specifications
Item Description
Dimensions Height: 8.9 cm (3.5 in.)
Width: 9.7 cm (3.8 in.)
Depth: 13.2 cm (5.2 in.)
Weight 147 g (5.2 oz.)
Input Voltage 12 VDC
Power Consumption up to 15 watts
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
