Zebra TC8300 - I;O Connector Pin-Outs

Specifications
176
I/O Connector Pin-Outs

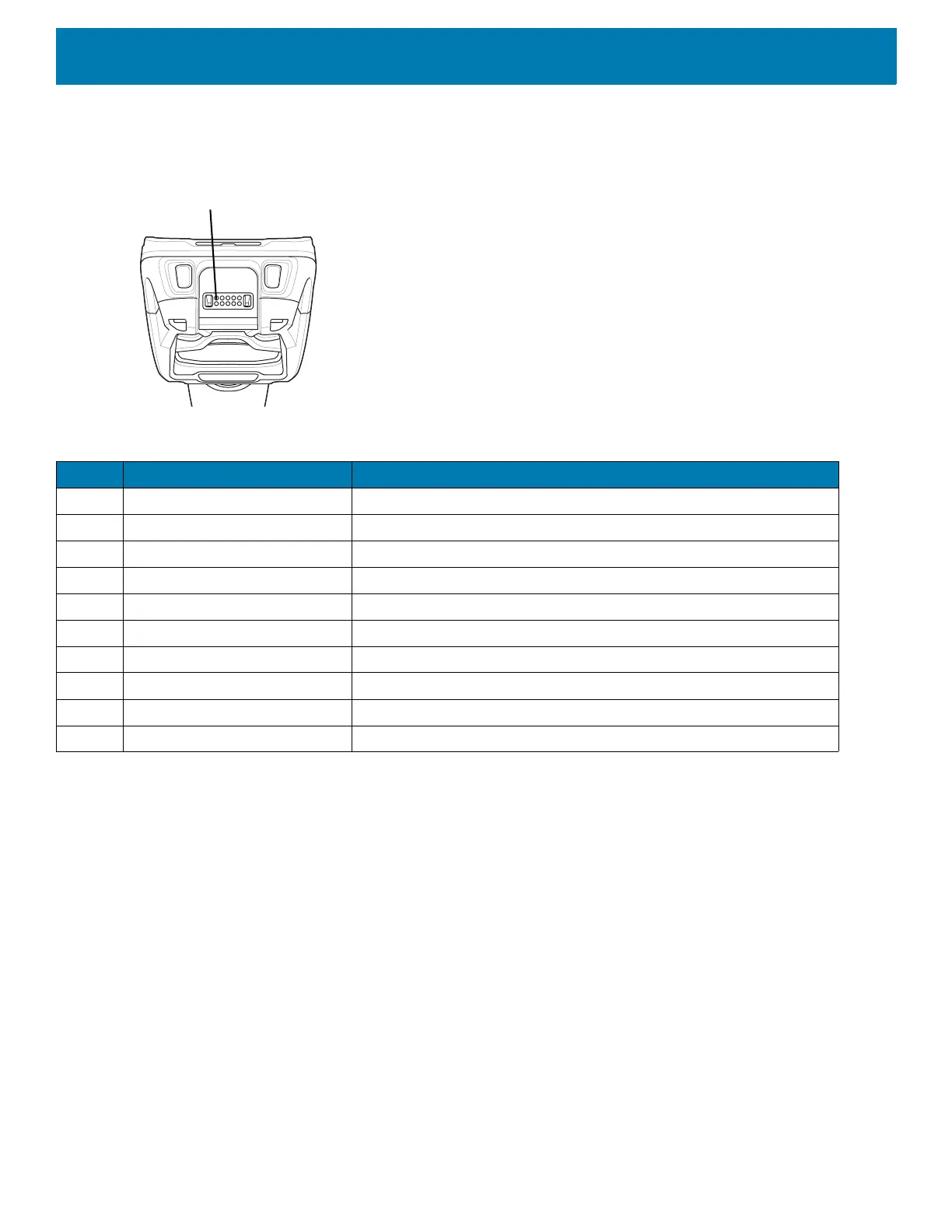

Figure 28 I/O Connector
Pin 1
Table 9 I/O Connector Pin-Outs
Pin Signal Description
1 DGND Digital ground
2 MUX_RX_HMIC External headset microphone/RX
3 POWER_IN Adapter voltage in
4 HST_PLUGDETN Headset or accessory detection
5 DGND Audio path Ground
6 USB_ID USB OTG ID pin.
7 MUX_TX_HSL External headset speaker/TX
8 USB_PWR USB VBUS Power
9 OTG_DP USB OTG D+
10 OTG_DM USB OTG D-
