Zebra TC8300 Integrator Guide

DataWedge
80
4. In the Select application screen, select the desired application from the list.
5. In the Select activity menu, selecting the activity adds that application/activity combination to the
associated application list for that profile. Selecting * as the activity results in all activities within that
application being associated to the profile. During operation, DataWedge tries to match the specific
application/activity combinations with the foreground application/activity before trying to match the general
application/* combinations.
6. Touch .

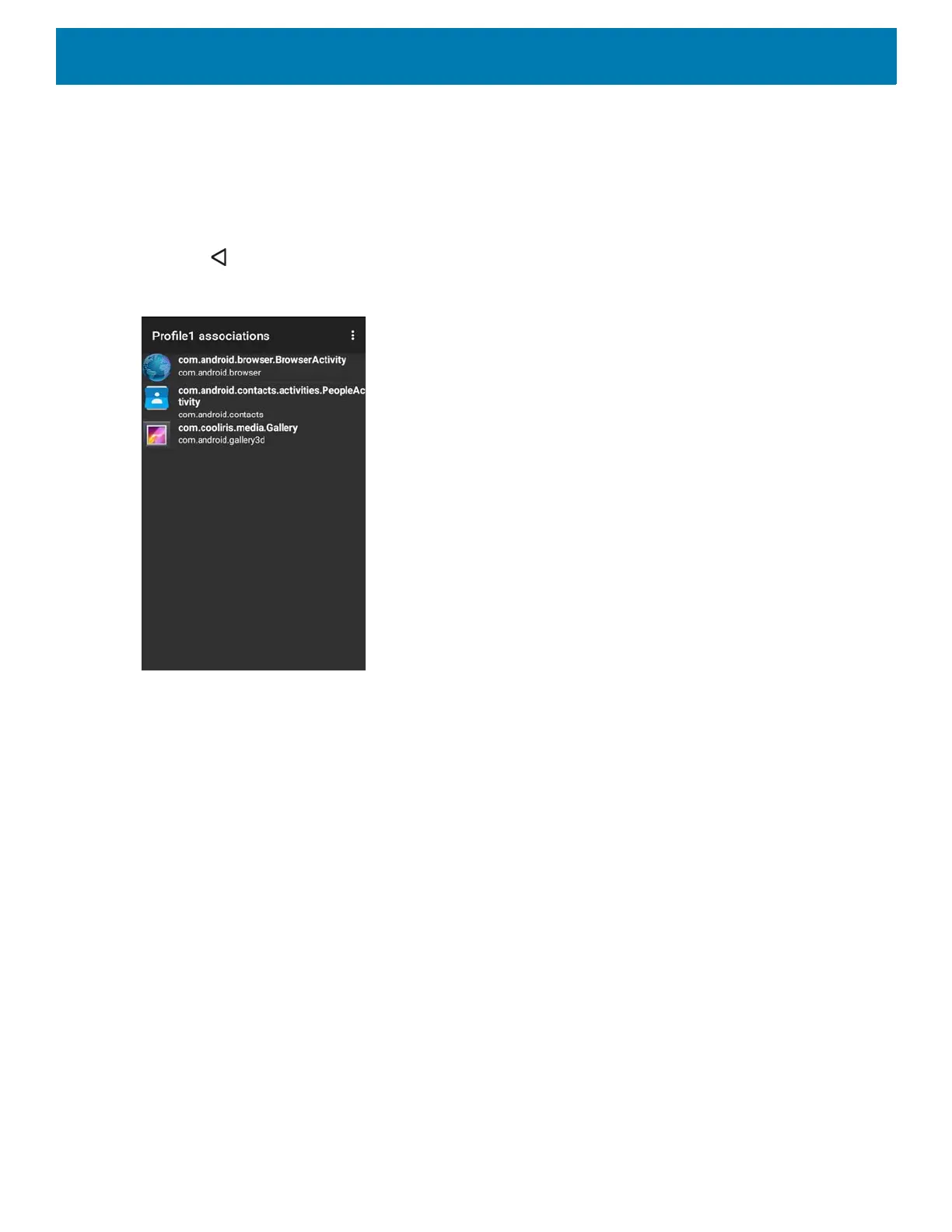

Figure 8 Selected Application/Activity
Data Capture Plus
Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a
designated part of the screen. A variable screen overlay acts like a scan button.

Zebra TC8300 Specifications

General

Display diagonal	4 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display number of colors	16.78 million colors
USB 2.0 ports quantity	1
Flash memory	128 GB
Internal memory	8 GB
Internal memory type	-
Compatible memory cards	SDXC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Number of cores	2
Processor family	A110
Processor frequency	1.7 GHz
Battery capacity	6700 mAh
Operating system version	5.1
Operating system installed	Android
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Product color	Black
Phone function	No
International Protection (IP) code	IP65
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	64 mm
Width	76 mm
Height	233 mm
Weight	- g
