Zebra TC8300 Integrator Guide

DataWedge
81

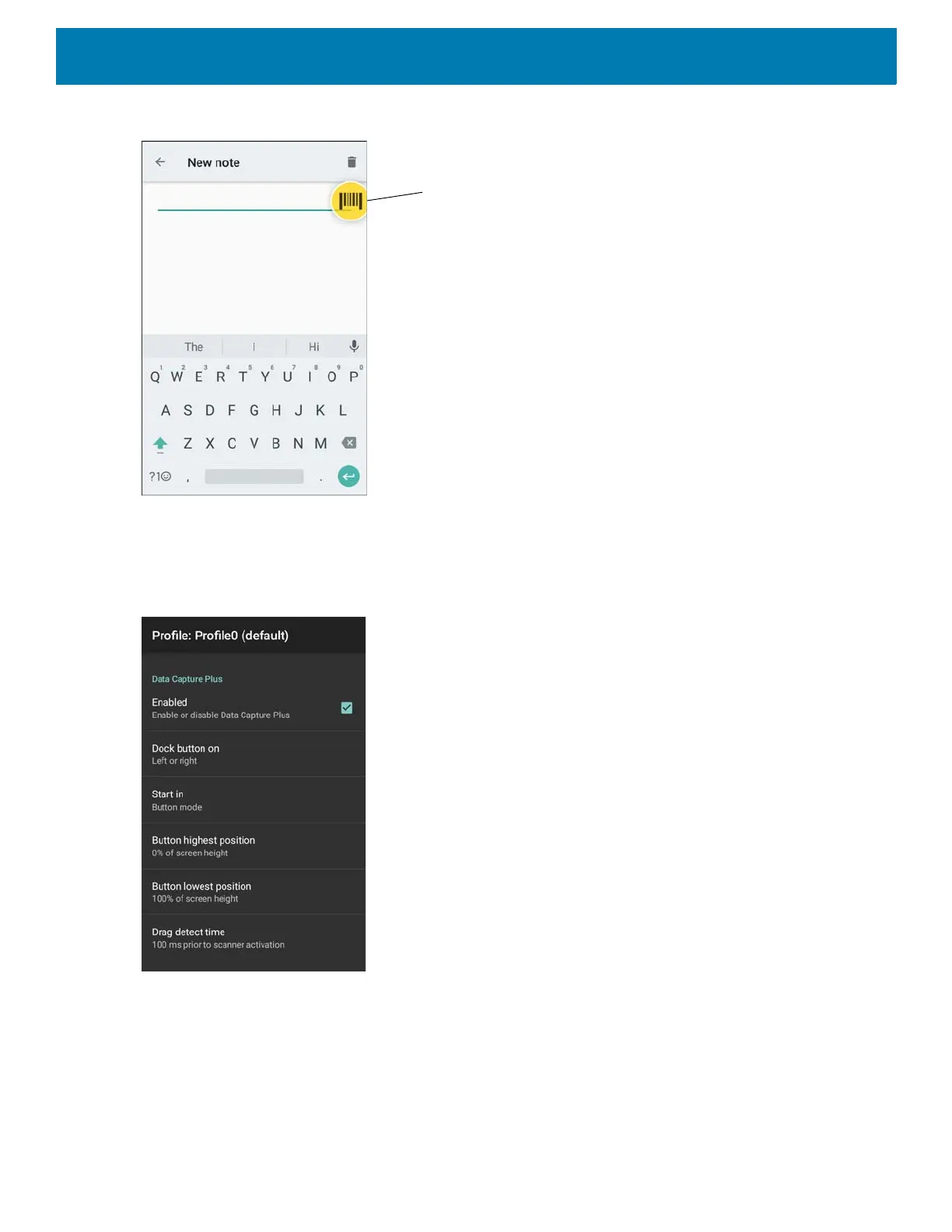

Figure 9 Minimized Data Capture Panel
The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen
once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven
additional configuration parameters.
Figure 10 Data Capture Panel Settings
• Enable - Select to enable Data Capture Plus (default - disabled).
• Dock button on - Select position of the button.
• Left or right - Allows user to place the button on either the right or left edge of the screen.
• Left only - Places the button on left edge of the screen.
• Right only - Places the button on the right edge of the screen.
DCP Button

Zebra TC8300 Specifications

General

Display diagonal	4 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display number of colors	16.78 million colors
USB 2.0 ports quantity	1
Flash memory	128 GB
Internal memory	8 GB
Internal memory type	-
Compatible memory cards	SDXC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Number of cores	2
Processor family	A110
Processor frequency	1.7 GHz
Battery capacity	6700 mAh
Operating system version	5.1
Operating system installed	Android
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Product color	Black
Phone function	No
International Protection (IP) code	IP65
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	64 mm
Width	76 mm
Height	233 mm
Weight	- g
