Zebra TC8300 Integrator Guide

Accessories
53

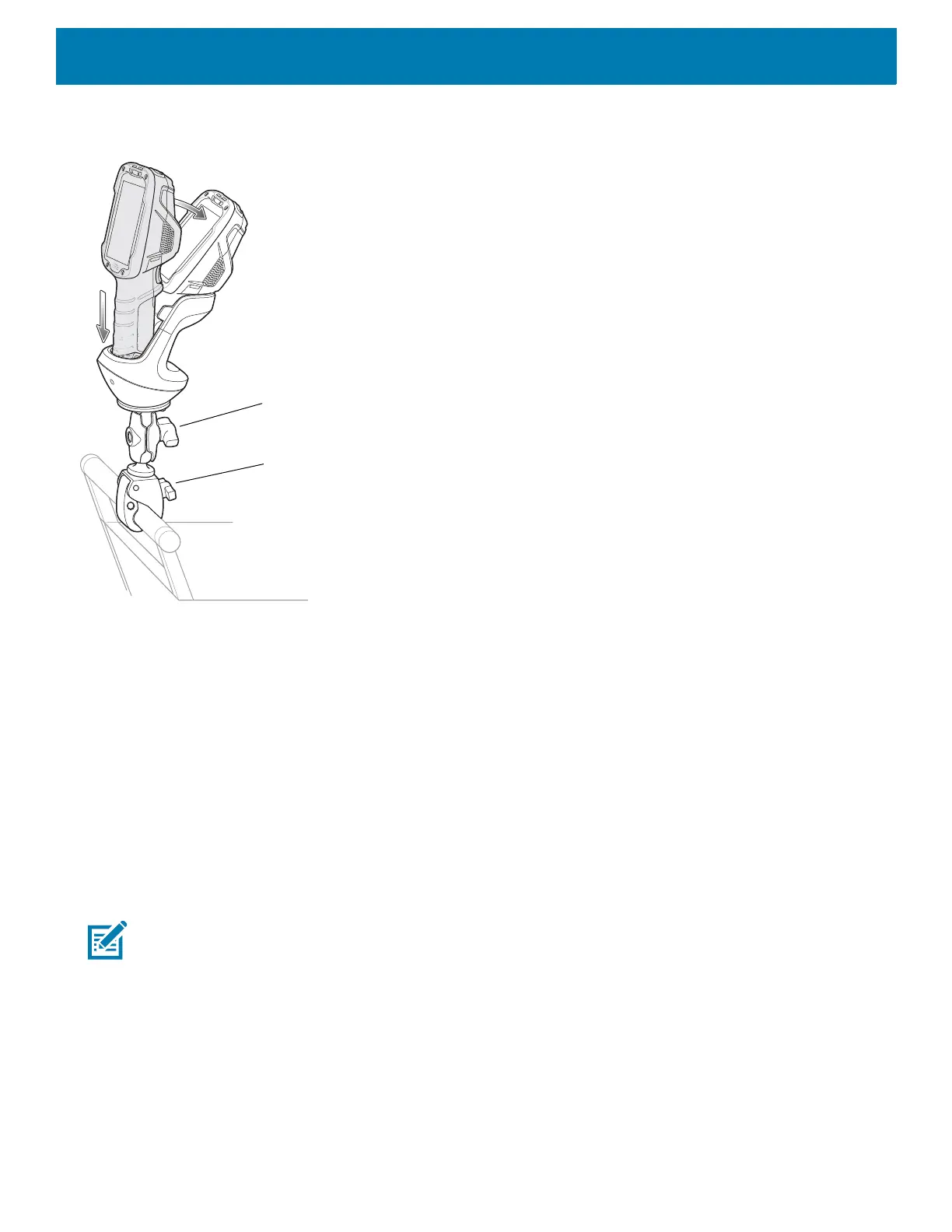

Figure 43 Cart Mount Installation on Cart Rail
5. Position the Cart Mount and tighten the claw knob and socket arm knob.
6. Insert the device handle into the Cart Mount cradle and rotate into the cradle.
5-Slot Cradle Rack Installation
Use the Rack/Wall Mount Bracket to mount a 5-slot cradle on a rack. When installing on a rack, first assemble
the bracket and cradles/chargers and then install the assembly on the rack.
1. Place the power supply in bottom tray.
2. Connect AC line cord to power supply.
3. Connect DC line cord to power supply.
4. Secure power supply and cables to bottom tray with tie wraps.
NOTE: Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply interferes with top tray.
5. Route cables through cable slots.
Claw Knob
Socket Arm Knob

Zebra TC8300 Specifications

General

Display diagonal	4 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display number of colors	16.78 million colors
USB 2.0 ports quantity	1
Flash memory	128 GB
Internal memory	8 GB
Internal memory type	-
Compatible memory cards	SDXC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Number of cores	2
Processor family	A110
Processor frequency	1.7 GHz
Battery capacity	6700 mAh
Operating system version	5.1
Operating system installed	Android
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Product color	Black
Phone function	No
International Protection (IP) code	IP65
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	64 mm
Width	76 mm
Height	233 mm
Weight	- g
