Accessories
68

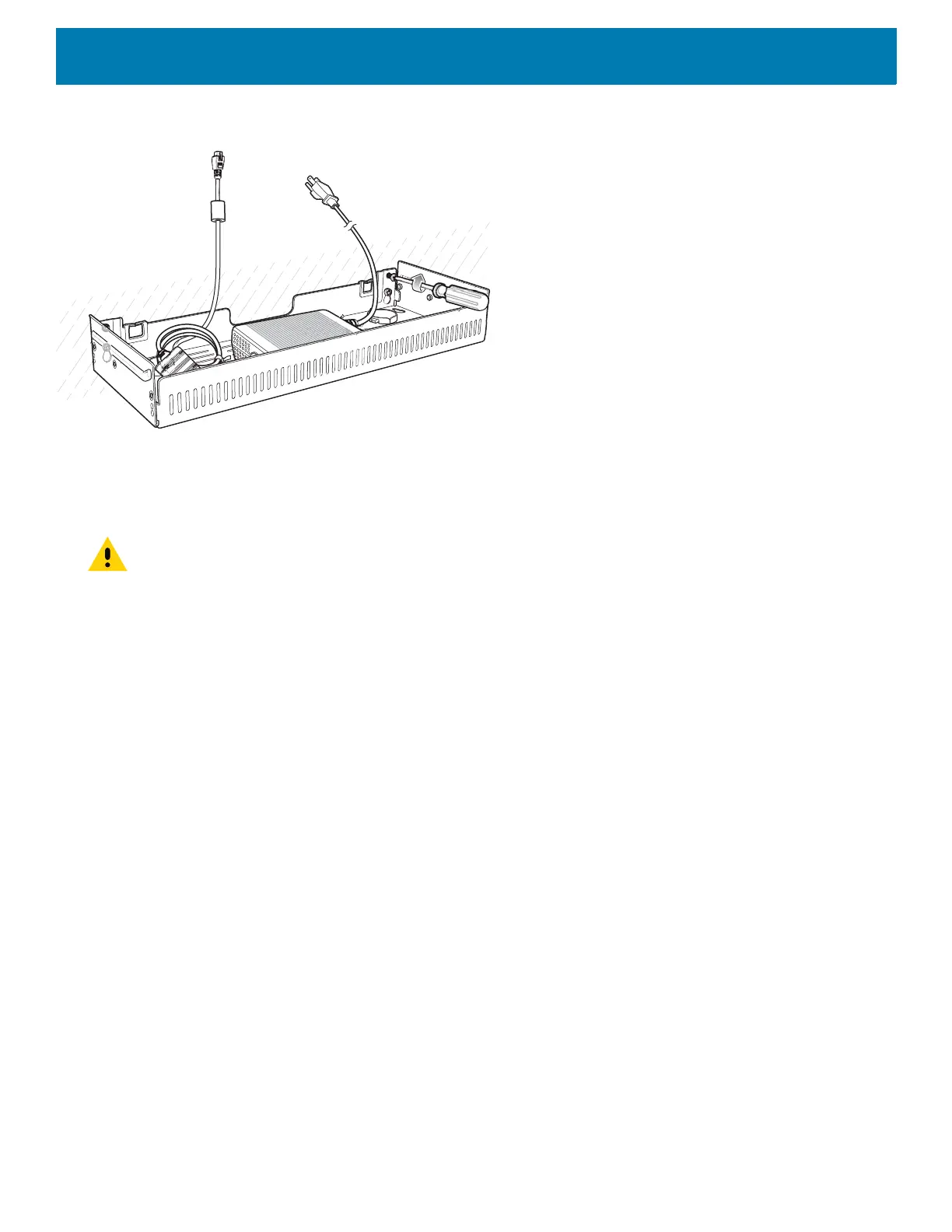

Figure 66 Horizontal Installation - Tighten Screws
7. Assemble the four 4-Slot Battery Chargers onto the bracket. See steps 7 through 11 in 4-Slot Battery
Chargers Rack Installation on page 57.
8. Route cables and connect to power source.
CAUTION: Installer should ensure that all building codes are followed when connecting the power supplies to an AC power
source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
Condensation Resistant Rear Bezel Replacement
The Condensation Resistant configurations contain a desiccant pack that must be replaced every five months.
The desiccant pack is part of the Back Bezel. Replacement Back Bezel with desiccant pack comes in a
vacuum sealed package. Do not open the package until instructed in the steps below. Install immediately after
opening.
To replace the Back Bezel:
1. Remove six screws securing the Back Bezel.
