Installation
To assemble the Cart Mount and RAM Mount:
1. Secure the RAM Mount ball base to the bottom of the Cart Mount using four screws and four washers
(provided).
2. Insert the socket arm to the ball base and claw base.
3. Slightly tighten the knob on the socket arm.

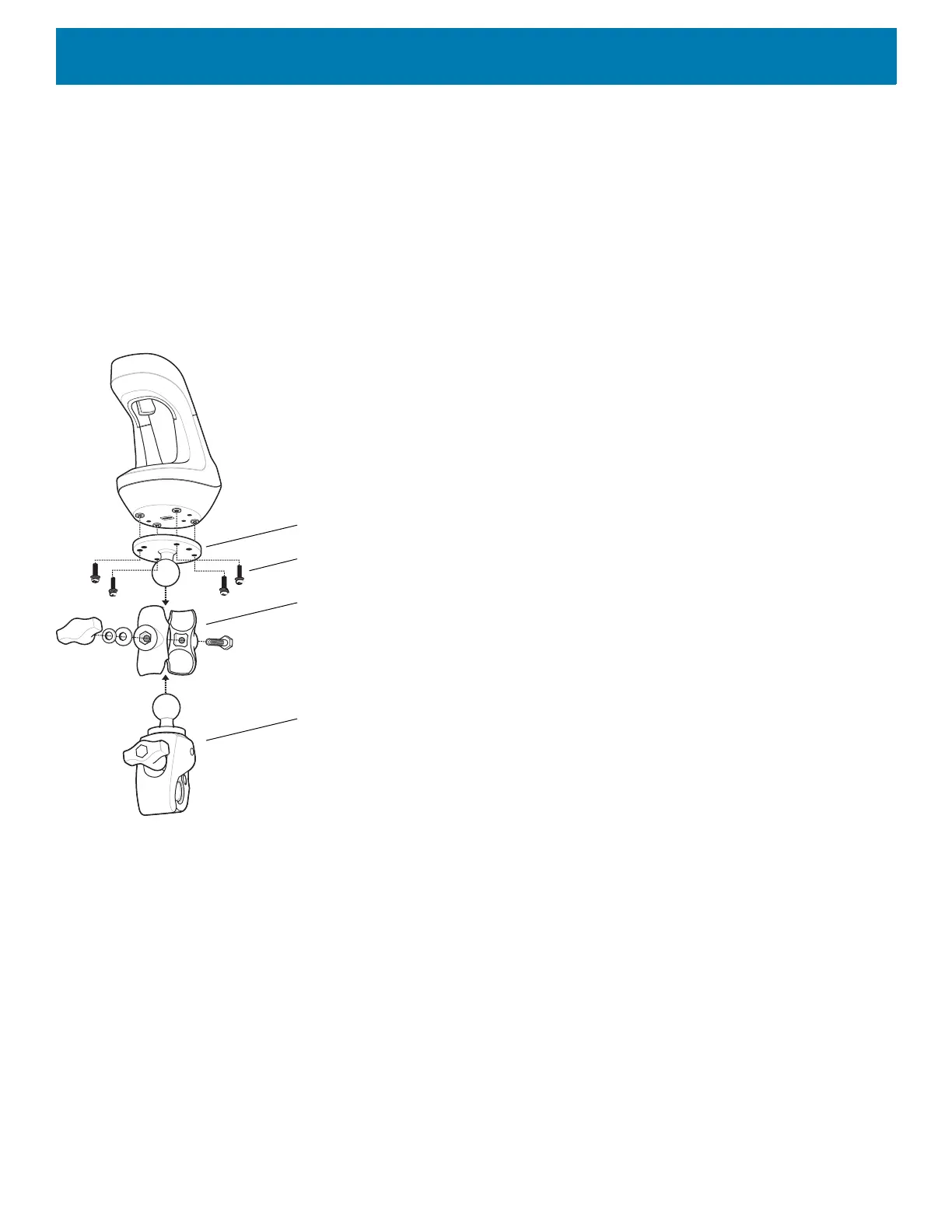

Figure 42 Cart Mount Assembly
4. Squeeze the claw base and install on a cart rail.
RAM Mount Ball Base
RAM Mount Socket Arm
RAM Mount Claw Base
RAM Mount Ball Base
