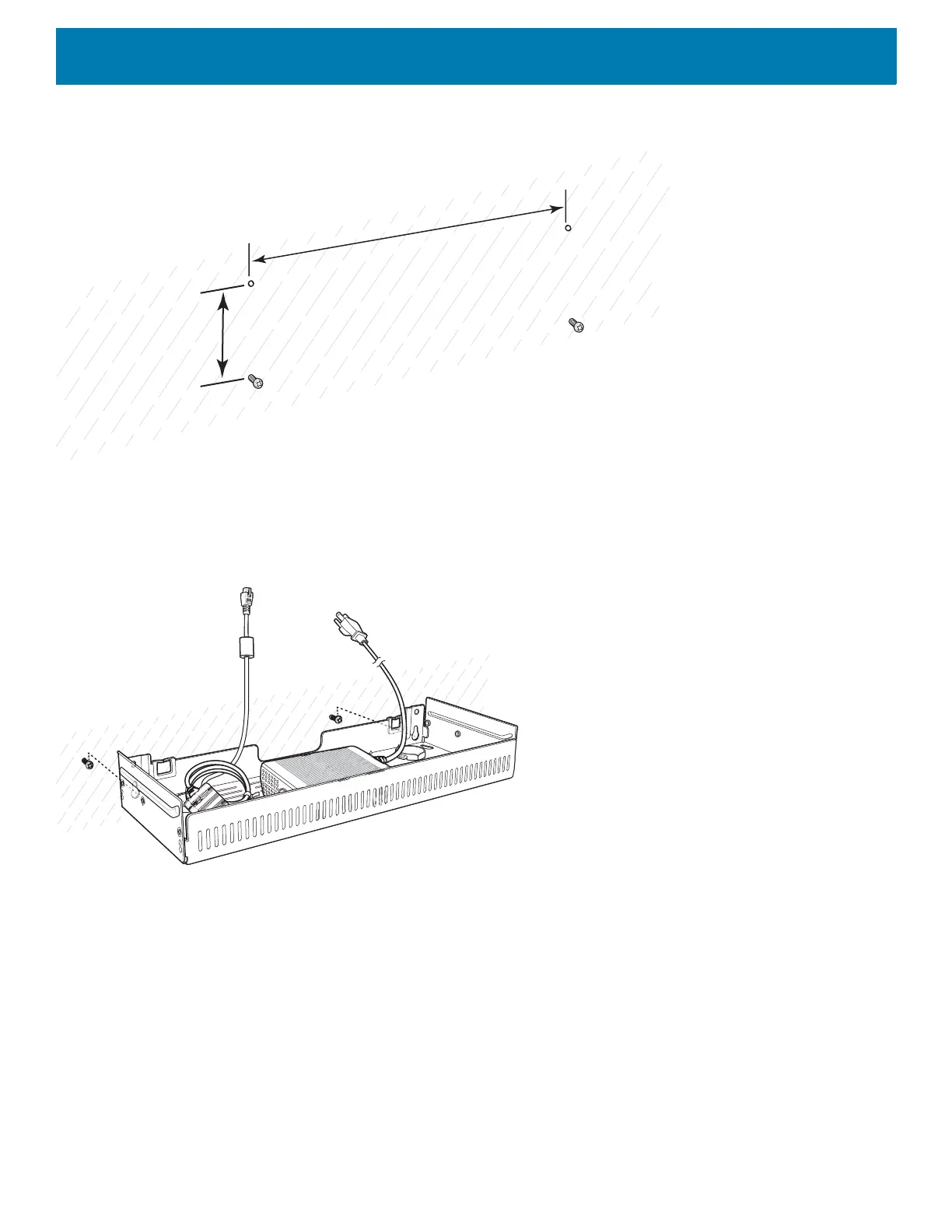

Figure 64 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
Figure 65 Horizontal Installation
5. Install two top screws.
6. Tighten all screws.
22.85 mm
398 mm
