Accessories
56

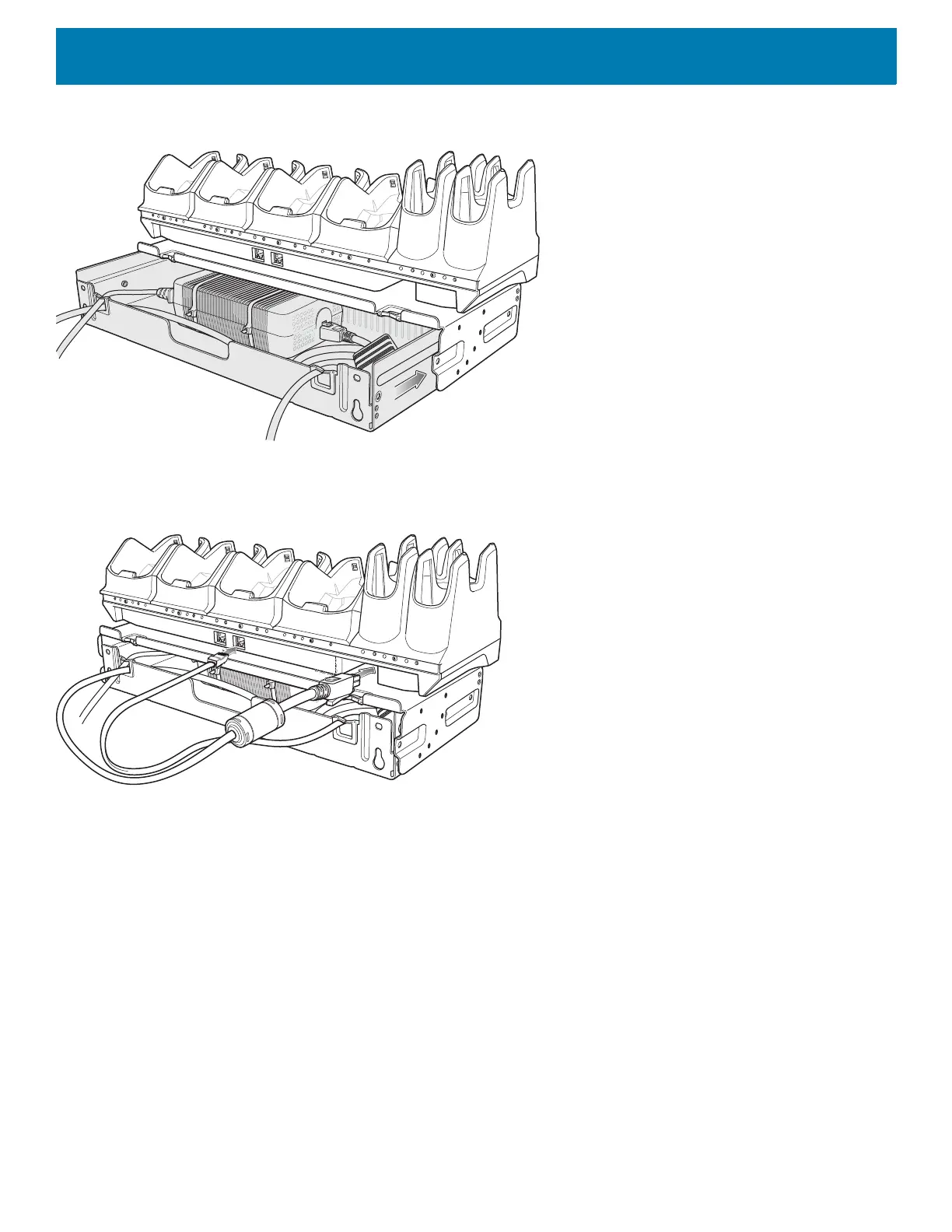

Figure 48 Slide Top Trap onto Bottom Tray
10.Connect cables to cradle.
Figure 49 Connect Cables
11.Secure top tray to bottom tray with 4 M5 screws (two on each side).
