NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 5-Slot
cradles, position the flange for vertical installation. For 4-Slot Battery Chargers, position the flange for 25°
installation.

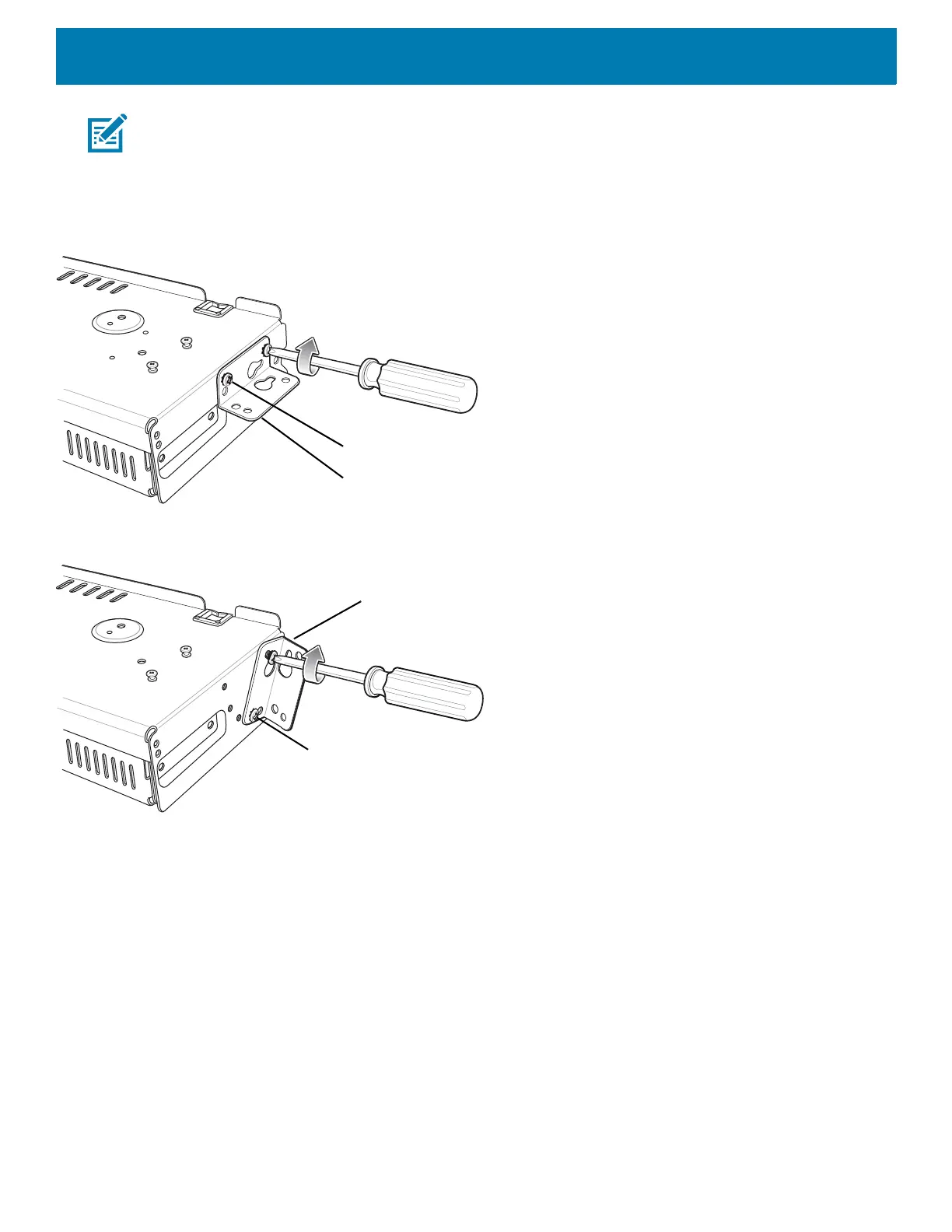

Figure 57 Flange Vertical Position (5-Slot Cradles)
Figure 58 Flange 25° Position (4-Slot Battery Chargers)
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way
from the rail.
