Accessories
65

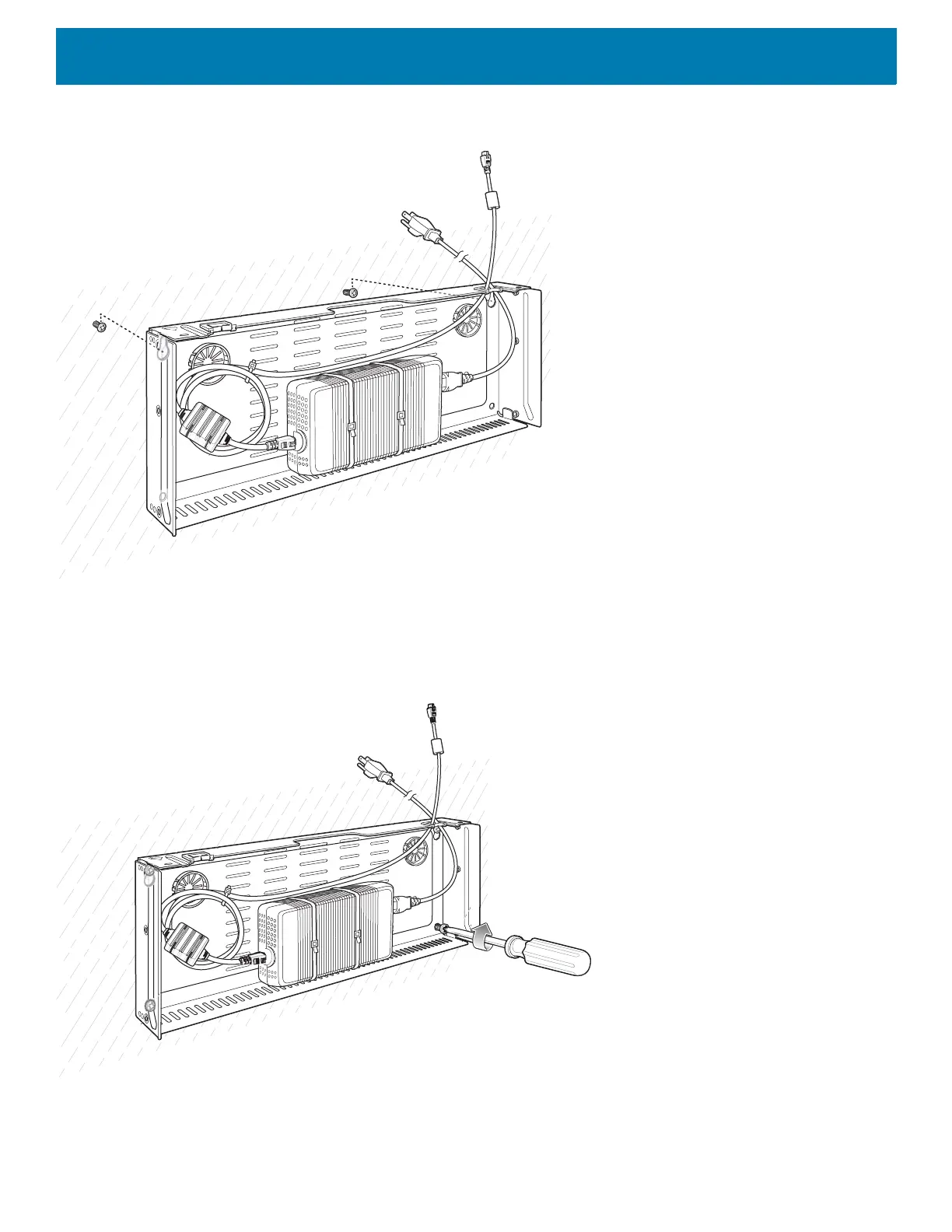

Figure 62 Vertical Installation
5. Install two top screws.
6. Tighten all screws.
Figure 63 Horizontal Installation - Tighten Screws
7. Assemble the top tray. See steps 6 through 8 in 5-Slot Cradle Rack Installation on page 53.
8. Slide the assembled top tray onto bottom tray.
