Printer Configuration and Adjustment
Adjust the Sensors
104
P1051584-002 8/23/12
Adjust the Sensors
This section describes how to adjust the sensors.
Transmissive Media Sensor
The transmissive media sensor finds “start of label” indicators, such as notches or holes in the
media or interlabel gaps. This sensor consists of a light source (positioned below the media)
and a light sensor (positioned above the media).
To position the sensor, complete these steps:
1. Refer to Figure 11. Slide the sensor position indicator on the pinch roller assembly to
move the media sensor.
2. How does the current media indicate the start of labels?

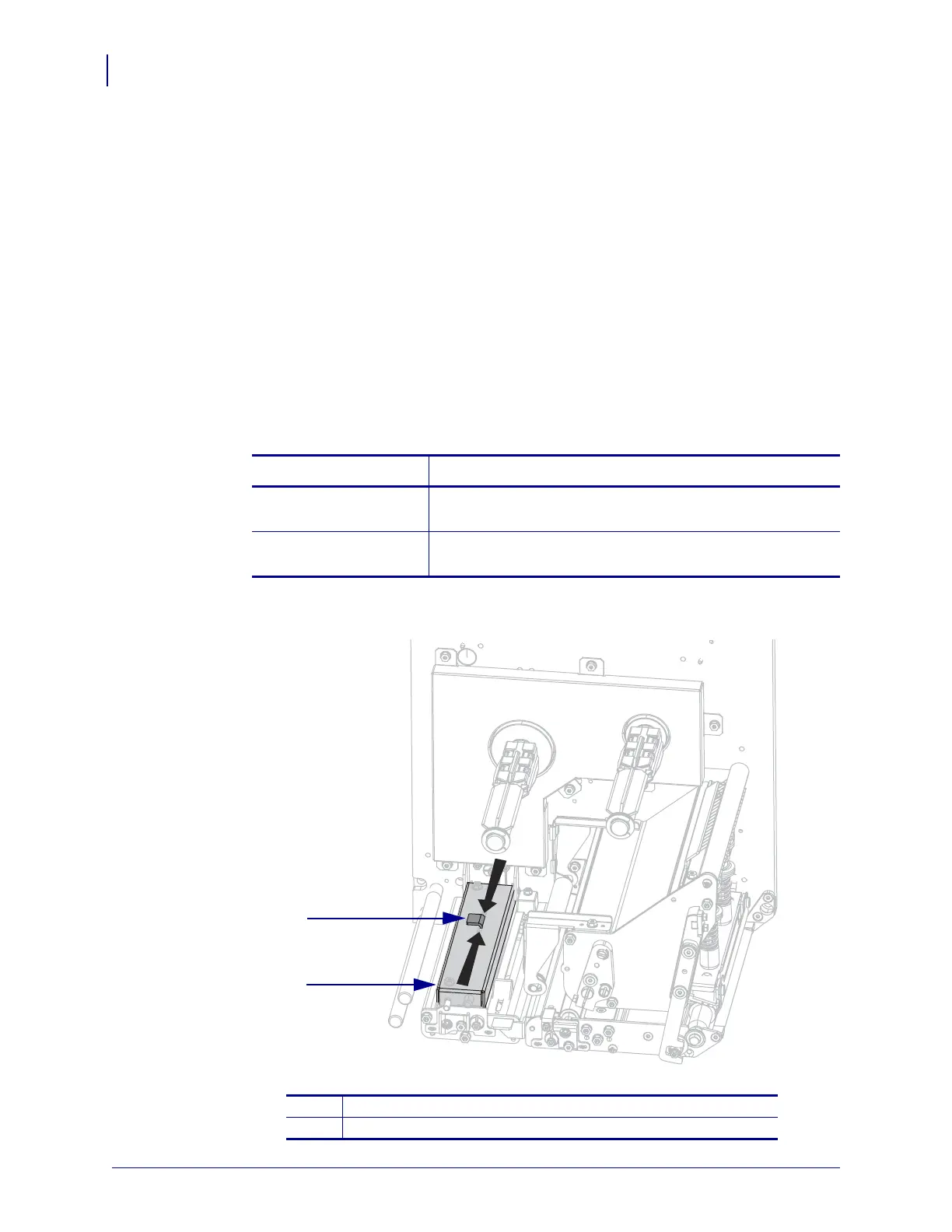

Figure 11 • Media Sensor Adjustment (Right-Hand Unit Shown)
If the media... Then...
Has notches or holes
between labels
Align the sensor with the notch or hole in the media.
Uses interlabel gaps Position the sensor approximately at the center of the media
width.
1
Sensor position indicator
2
Pinch roller assembly
