Printer Configuration and Adjustment
Toggle Positioning
106
P1051584-002 8/23/12
Toggle Positioning
Proper toggle positioning is important for proper print quality.

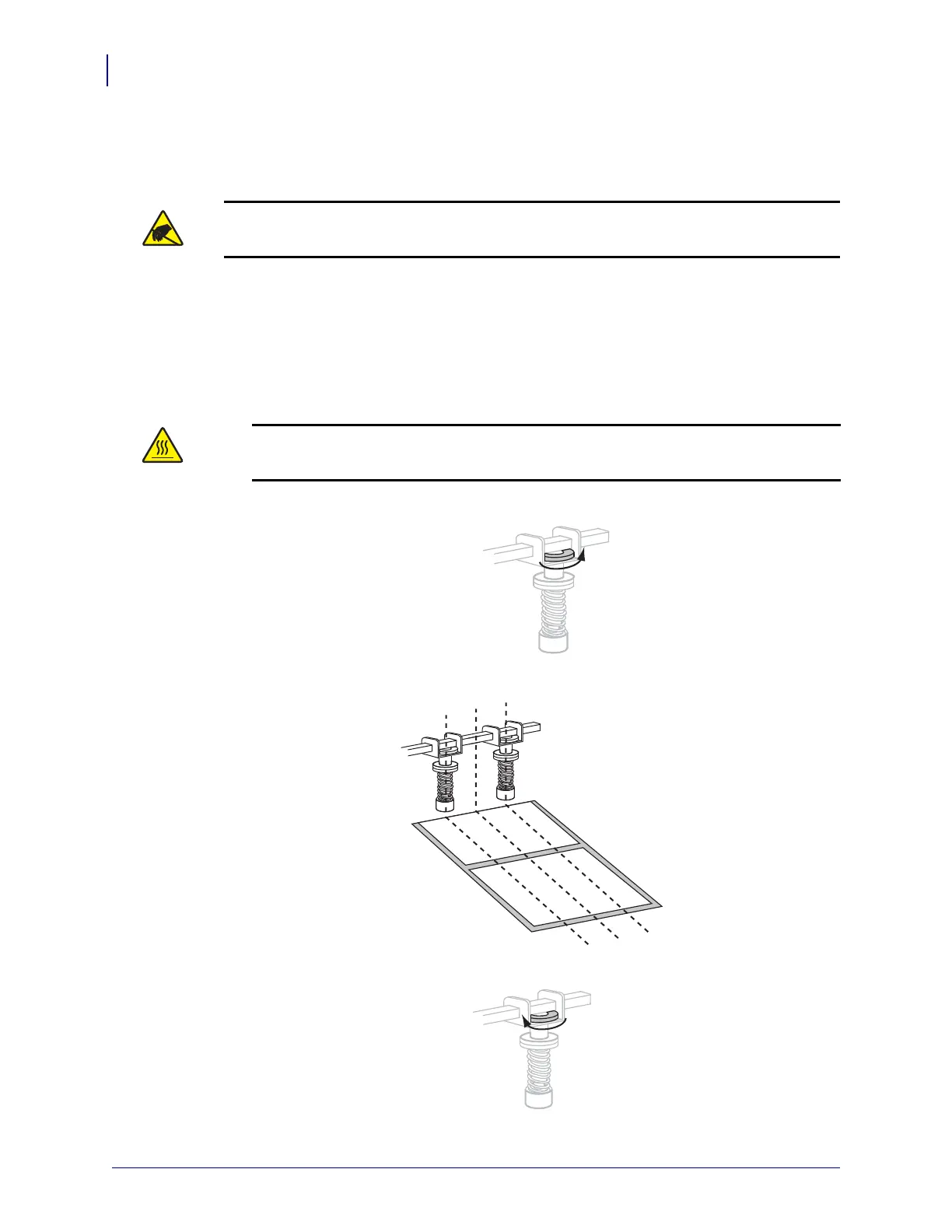

To adjust the toggles, complete these steps:
1. Print some labels at 2 in. (51 mm) per second by running the PAUSE Self Test (see PA U SE
Self Test on page 132).
2. While printing labels, use the control panel to lower the darkness setting until the labels
are printing gray instead of black (see
Print Darkness on page 73).
3.
4. Position the toggles approximately 1/4 of the way in from each edge of the media.
5. Tighten the locking nuts.
Caution • Observe proper electrostatic safety precautions when handling any
static-sensitive components such as circuit boards and printheads.
Caution • The printhead may be hot and could cause severe burns. Allow the
printhead to cool.
Loosen the locking nut at the top of each toggle assembly.
