Handling the Print Engine
This section describes how to handle your print engine.
Unpack and Inspect the Print Engine
When you receive the print engine, do the following:
1. Immediately unpack the print engine.
2. Check all exterior surfaces for damage.
3. Raise the media door, and inspect the media compartment for damage to components.
4. If you discover shipping damage during inspection, do the following:
• Immediately notify the shipping company, and file a damage report.
• Keep all packaging material for shipping company inspection.
• Notify your authorized Zebra reseller.
Remove Additional Shipping Materials
1. If your print engine includes the optional applicator port, complete this step. If it does not,
continue with
step 2.
Important • Zebra Technologies is not responsible for any damage incurred during the
shipment of the equipment and will not repair this damage under warranty.

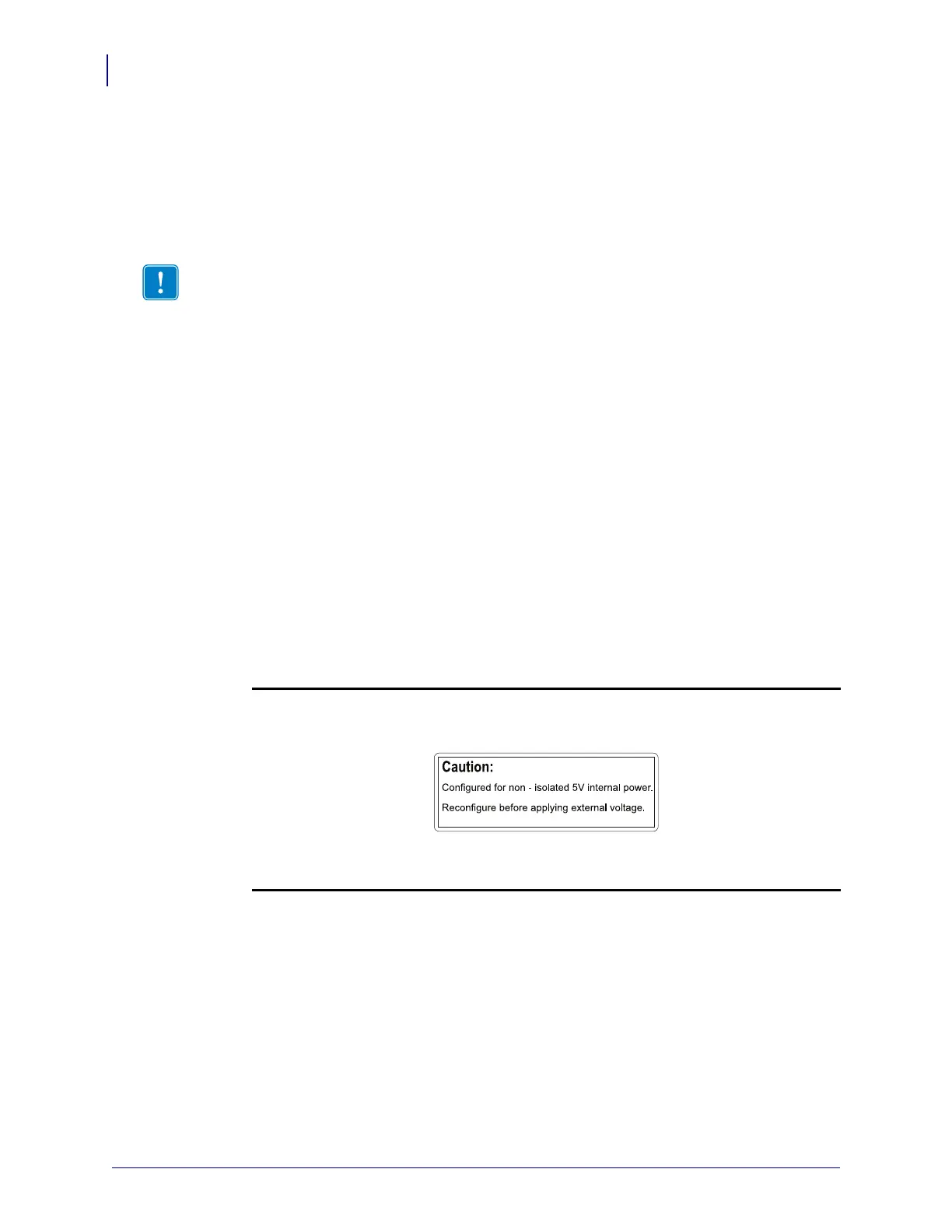

Caution • The print engine ships with the following caution label over the optional
applicator port:
Applying external power when the print engine is configured for internal power will
damage your print engine.
For +5V non-isolated mode (internal power):
a. No configuration is necessary. Remove the caution sticker from the applicator
port.
b. Continue with step 2.
For +5V to +28V isolated mode (external power):
a. The jumpers on the applicator interface board must be reconfigured. See
Applicator Interface Board Reconfiguration on page 145 for instructions.
b. Remove the caution sticker from the applicator port.
c. Continue with step 2.
