Introduction
Print Engine Components
8/23/12 P1051584-002
Print Engine Components

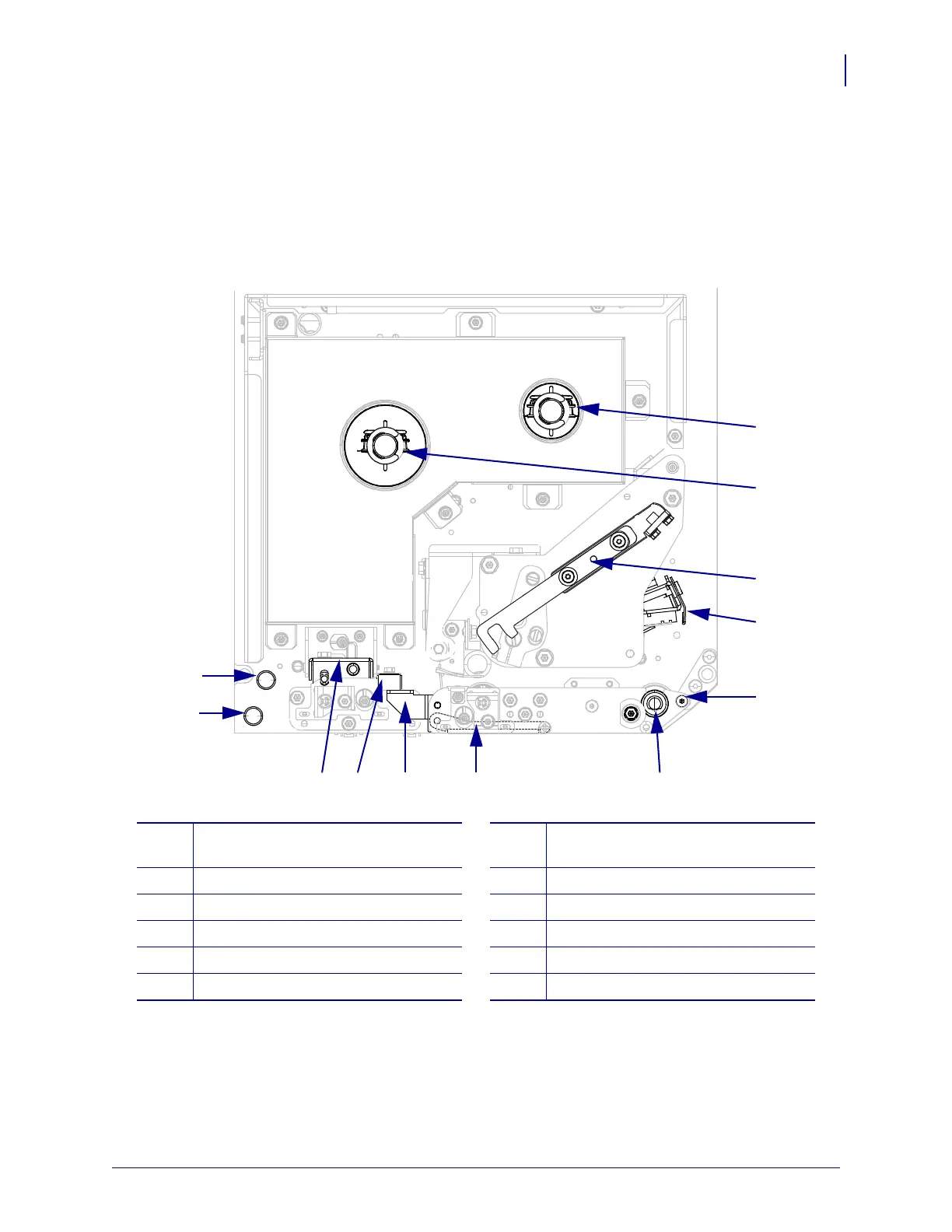

Figure 3 shows the components inside the media compartment of a right-hand print engine. A
left-hand unit contains a mirror image of these components. Familiarize yourself with these
components before continuing with the print engine setup procedure.
Figure 3 • Print Engine Components (RH model shown)
a222
1
ribbon take-up spindle
7
peel roller assembly (hidden when
closed)
2
ribbon supply spindle
8
peel roller latch
3
printhead-release latch
9
media guide
4
printhead assembly (shown open)
10
pinch roller assembly
5
peel bar
11
lower guide post
6
platen roller
12
upper guide post
3
4
910 7
5
6
12
11
8
1
2
