Zebra ZE500 User Manual

8/23/12 P1051584-002
A
Applicator Interface Board
Reconfiguration

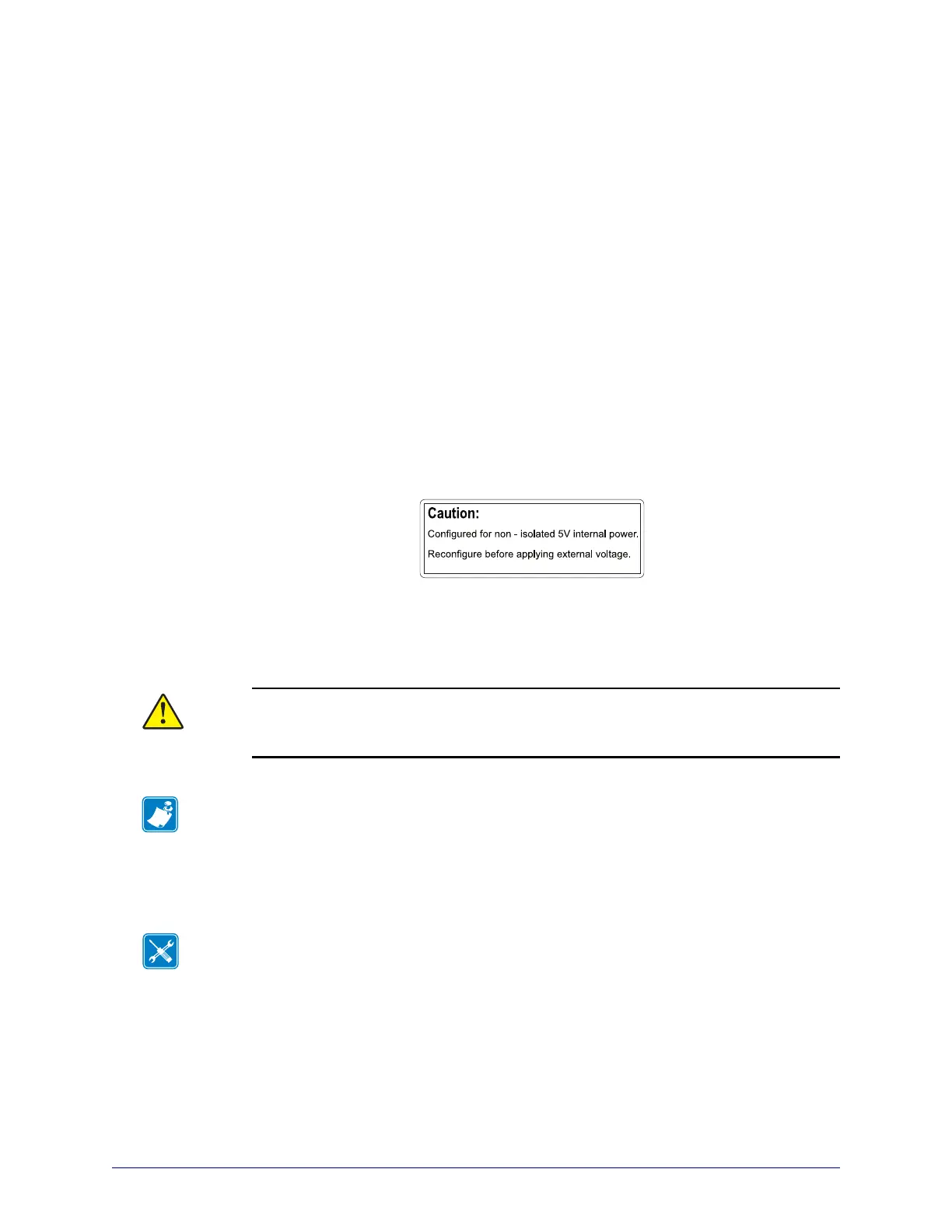

The print engine ships with the following caution label over the optional applicator port:
• For +5V non-isolated mode (internal power), no configuration is necessary.
• For +5V to +28V isolated mode (external power), the jumpers on the applicator interface
board must be reconfigured. Follow the instructions in this section.
Tools Required
Caution • Do not remove the caution label or apply external power until after the
applicator interface board is reconfigured for isolated mode. Applying external power
when the print engine is configured for internal power will damage your print engine.
Note • The graphics and steps in this procedure are for the right-hand (RH) print engine.
Steps for a left-hand (LH) print engine may be slightly different.
Tools • You may need these tools to complete this procedure:
 Phillips Screwdriver Set
 Metric Hex Key (Allen Wrench) Set
 Antistatic Wriststrap and Mat
 Needle-nose pliers
 Torx Key Set
 Flashlight

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
