Applicator Interface Board Reconfiguration
Changing Jumper Settings for Isolated Mode
8/23/12 P1051584-002

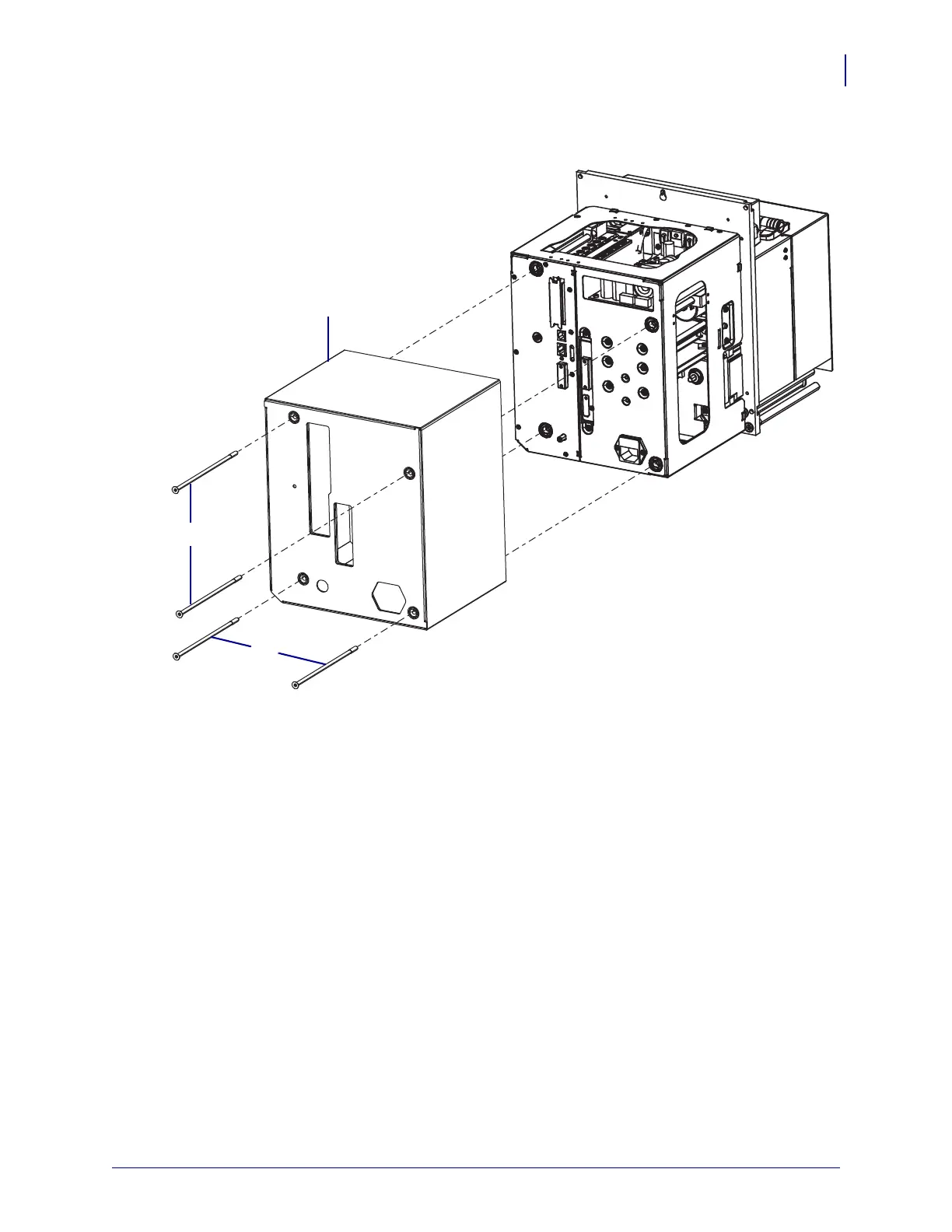

4. Remove the four long mounting screws (1) that secure the electronics cover, and then
slide the electronics cover (
2) off of the print engine.
2
1
1
