Safety measures S88 / OPMI Lumera T
Version 8.0
Page 50 G-30-1682-en

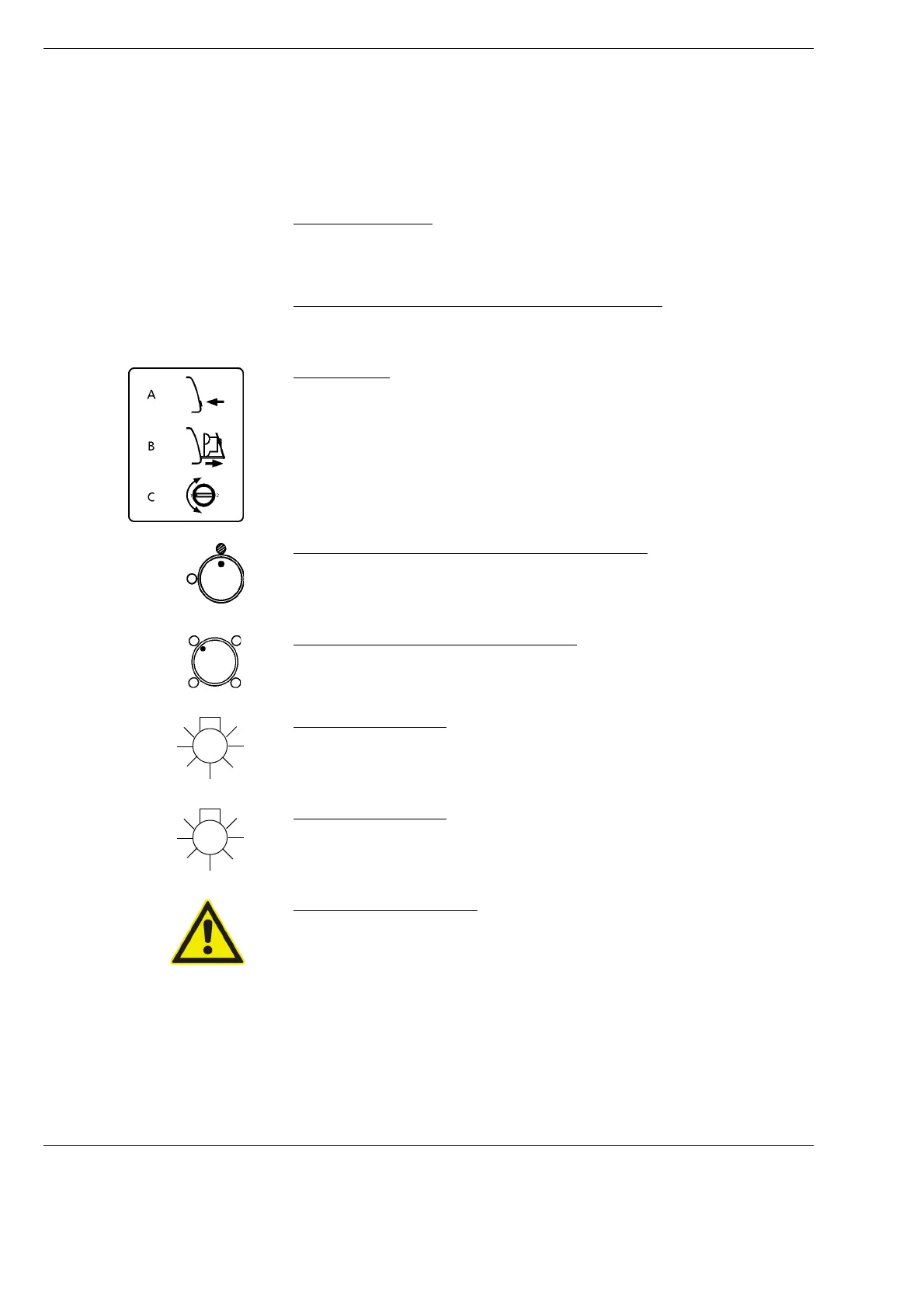

Labels on the light sources of the suspension systems
1 Lamp housing label
Lamp housing: Superlux Eye with lamp module with integrated filters.
2 "Manual switching to backup lamp" indicating label
These numerical symbols refer to switching from the standard lamp to the
backup lamp.
3 Lamp change
The plate graphically shows the three steps involved in changing the lamp.
A - Press the button
B - Pull out the lamp insert module
C - Change bulbs
4 "Filter selector for Superlux Eye light source" label
This label indicates the position of the filter wheel.
5 "Filter selector for halogen light source"
This label indicates the position of the filter wheel.
6 "Light source 2" label
7 "Light source 1" label
Identifies the lamp housing of halogen lamp no. 1.
8 "CAUTION" warning label
Warning of a potential hazard
Superlux Eye
Future
12
2
1
