Zeiss S88 - Superlux Eye with Integrated Halogen Light Source (Option)

Device overview S88 / OPMI Lumera T
Version 8.0
Page 96 G-30-1682-en
Superlux Eye with integrated halogen light source (option)
Please observe the procedure described on page 84.
The Superlux Eye with an integrated halogen light source is a combination of
the two light sources described above. Like the Superlux Eye light source, this
combination is also available with two filter versions: the HaMode filter and
the 485 nm fluorescence excitation filter.

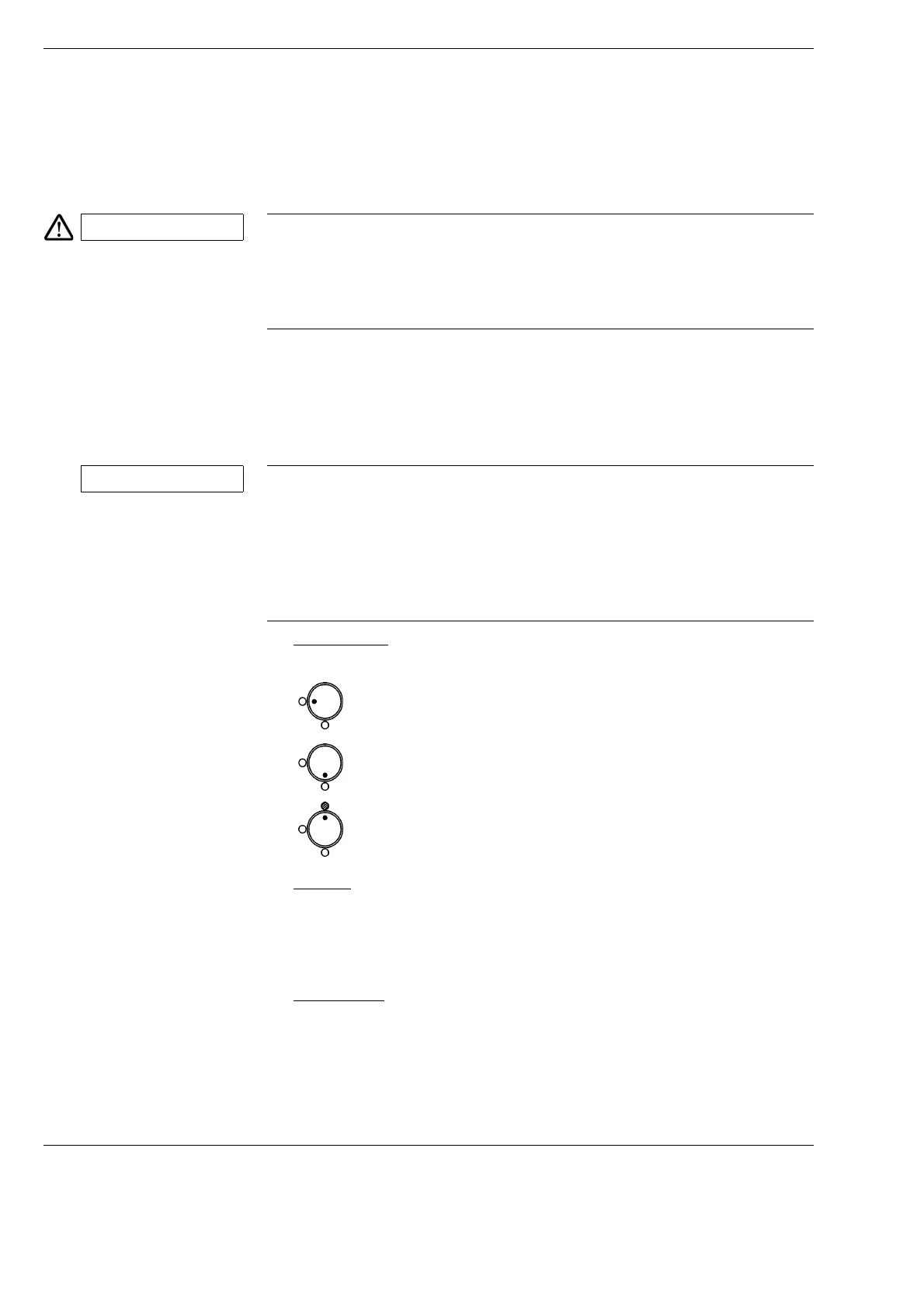

1 Filter selector
The filter selector knob has the following positions:
2 Counter
The counter records the service hours of the xenon light source.
Change the xenon lamps after a maximum operating time of 500 hours
to avoid any rupture of the xenon lamps. Then reset the counter to "0".
Use a pointed object and press it into the recess of reset button (3).
3 Reset button
The reset button resets the service hour counter to "0".
CAUTION The xenon lamp has a limited service life of 500 h!
If used beyond its maximum service life, the xenon lamp may explode.
• Please replace the xenon lamp in due time.
• Reset the service hour counter to "0" after replacing the lamp.
NOTE Overheating of the lamp module!
If ventilation grids are covered e.g. by drapes, this may lead to overheating
of the ventilation modules and deactivation of the lamp.
• Never cover the ventilation grids.
• Lamps switched off due to overheating will be automatically switched on
again when they have cooled down.
No filter
Blue barrier filter (retina protection filter):
HaMode filter (standard)
485 nm fluorescence excitation filter (option)
