40 ProCapture-T & PRoRF-T User Manual
As the above figure, Combined Verification 3 is made up of five members, and all of them come from
Access Group 9.
As the above figure, Combined Verification 4 is made up of three members coming from three different
groups -- Access Group 3, 5, 8 respectively.
Deleting a Combined Verification
To delete a Combined Verification, set all access group numbers to 0.

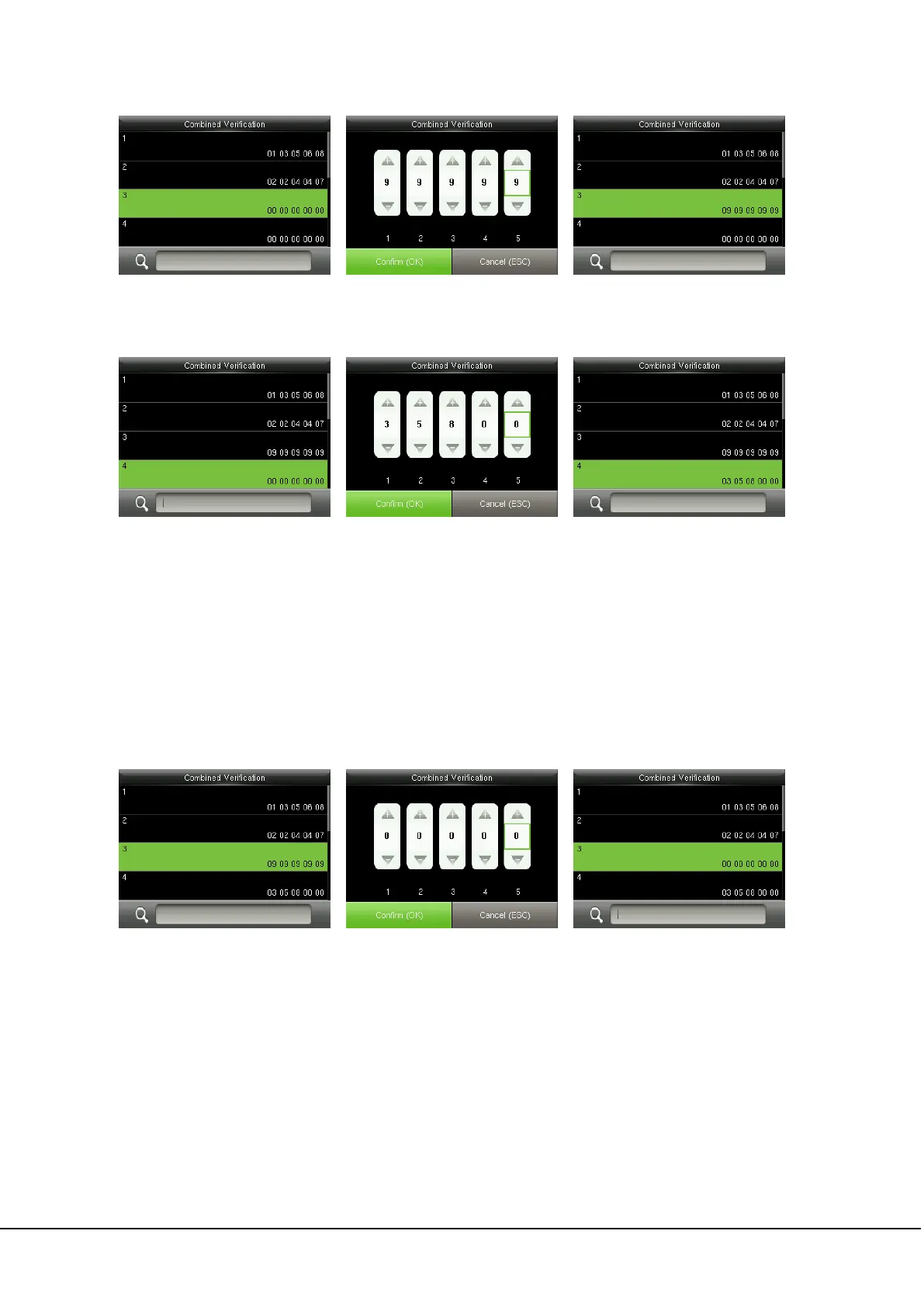

For example, to delete Combined Verification 3, please see the figures below:
If all access group numbers in Combined Verification 3 are set to 0, it will be deleted.
10.5 Anti-passback Settings
To avoid some persons following users to enter the door without verification, resulting in security
problem, users can enable anti-passback function. The check-in record must match with check- out
record so as to open the door.
This function requires two devices to work together: one is installed inside the door (master device), the

ZKTeco ProCapture-T Specifications

General

Type	Intelligent access control reader
Product color	Black
Cards capacity	10000 cards
RFID frequency	0.125 MHz
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
PC connection	RS-485/Wiegand
Supported network protocols	TCP/IP
Viewing angle, horizontal	120 °
Display type	TFT-LCD
Display diagonal	2.4 \
Operating temperature (T-T)	-10 - 50 °C
DC voltage range	12 - 12 V
Power consumption	500 mA
Flash memory	0.256 GB
Internal memory	0.128 GB
Processor frequency	1200 MHz

Weight and Dimensions

Depth	35 mm
Width	87 mm
Height	195.5 mm
