Consists of 37 bits of binary code. The 1
st
bit is the odd parity bit of the
2
nd
to 18
th
bits, while the 37
th
bit is the even parity bit of the 19
th
to 36
th
bits. The 2
nd
to 4
th
bits are the manufacturer code, the 5
th
to 16
th
bits are
the site code, and the 21
st
to 36
th
bits are the card number.
Wiegand37a EMMMFFFFFFFFFFSSSSSSCCCCCCCCCCCCCCCCO
Consists of 37 bits of binary code. The 1
st
bit is the even parity bit of the
2
nd
to 18
th
bits, while the 37
th
bit is the odd parity bit of the 19
th
to 35
th
bits. The 2
nd
to 4
th
bits are the manufacturer code, 5
th
to 14
th
bits are the
device code, 15
th
to 20
th
bits are the site code, and the 21
st
to 36
th
bits
are the card number.
Wiegand50 ESSSSSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO
Consists of 50 bits of binary code. The 1
st
bit is the even parity bit of the
2
nd
to 25
th
bits, while the 50
th
bit is the odd parity bit of the 26
th
to 49
th
bits. The 2
nd
to 17
th
bits are the site code, and 18
th
to 49
th
bits are the
card number.
Note: C denotes card number, E denotes even parity bit, O denotes odd parity bit, F denotes facility
code, M denotes manufacturer code, P denotes parity position, and S denotes site code.
6.5.2 Wiegand Output
Wiegand Output connector supports SRB, or connects the device as a slave device to another device
(master device), forming a master/slave system.

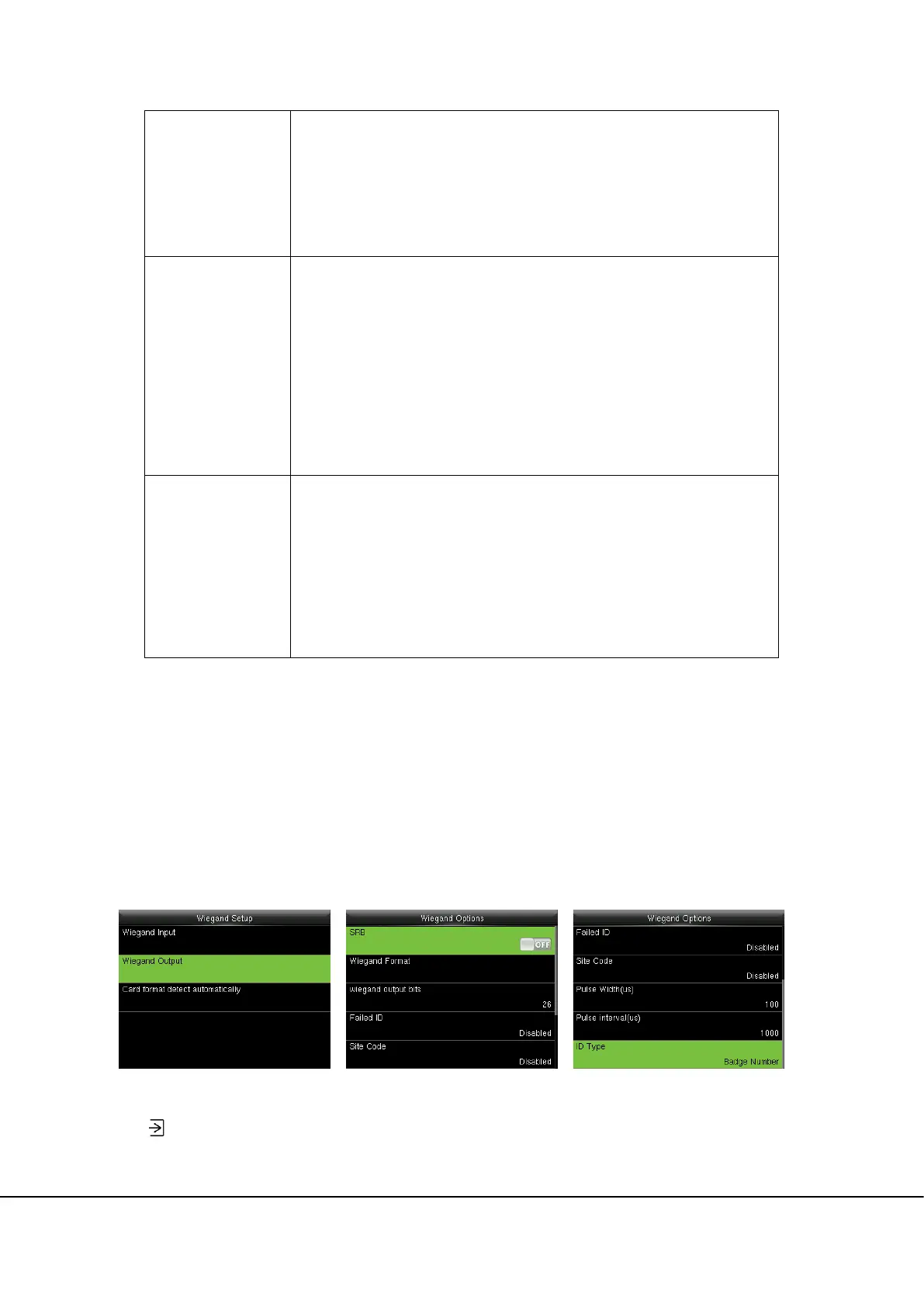

Select “Wiegadn Output” and
press
to enter
Set parameters in “Wiegand Output” interface
SRB: Select [ON] to turn the SRB function on, while choosing [OFF] can disable the function.
