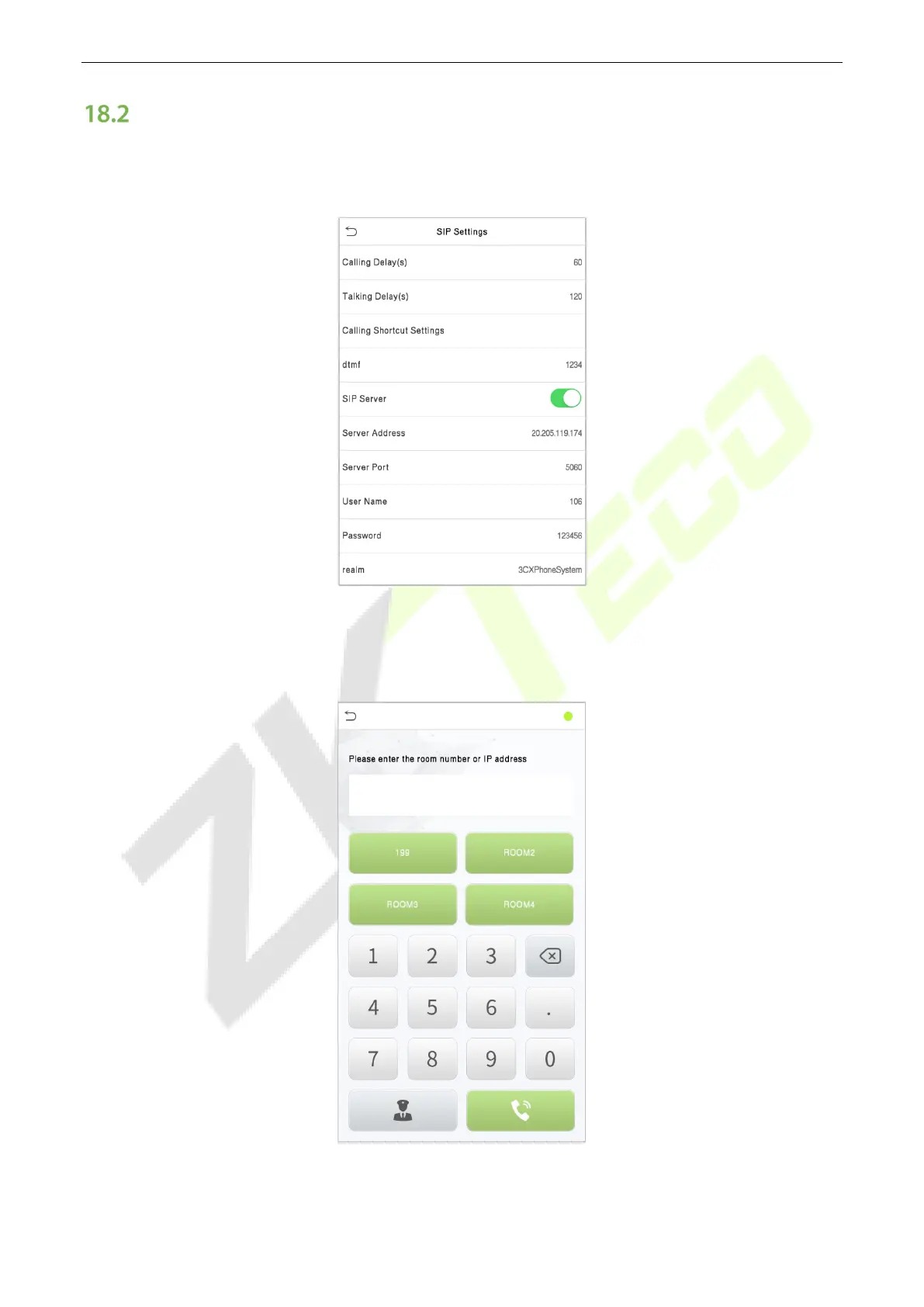

SIP Server
On SpeedFace-V5L, tap SIP Server, after the device is rebooted, enter the server-related parameters, as
shown below:
Once the SIP is set up correctly, a green dot will appear in the upper right corner of the call page to
indicate that the SpeedFace-V5L is connected to the server. You can call the account name of the indoor
station.

ZKTeco SpeedFace-V5L Series Specifications

General

Face Capacity	50, 000
Card Capacity	50, 000
Display	5-inch Touch Screen
Operating System	Linux
Certifications	CE, FCC
Communication	TCP/IP, Wi-Fi
Power Supply	DC 12V/3A
Operating Temperature	-10°C to 45°C
Operating Humidity	20% to 80%
Standard Functions	Anti-Passback, Tamper Alarm
Access Control Interface	Exit Button, Door Sensor
Face Recognition Speed	< 1s
Face Recognition Distance	0.3m-2m
Processor	1GHz Dual-Core CPU
Camera	2MP Binocular Camera
