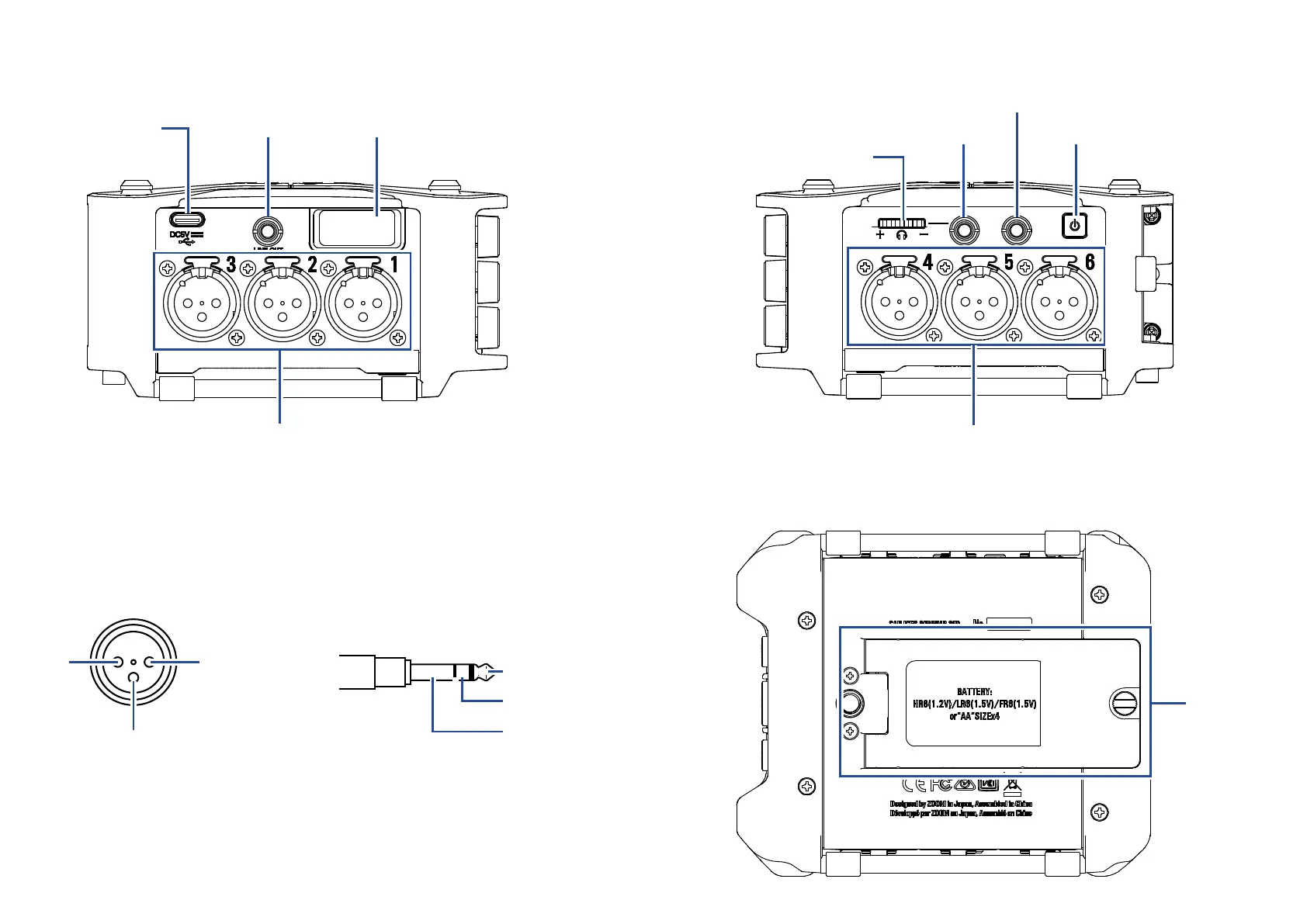

■ Left side
Inputs 1–6 TIMECODE IN/OUT
■ Right side
Inputs 1–3
USB port LINE OUT jack Zoom wireless adapter (e.g. BTA-1)
Inputs 4–6
Headphone volume
HEADPHONE jack POWER switch
TIMECODE IN/OUT jack
XLR
1：GND
2：HOT
3：COLD
12
3
TRS
TIP: Input to F6
(output from external device)
RING: Output from F6
(input to external device)
SLEEVE: GND
Battery
cover
