Connecting mics/other devices to Inputs 1–6

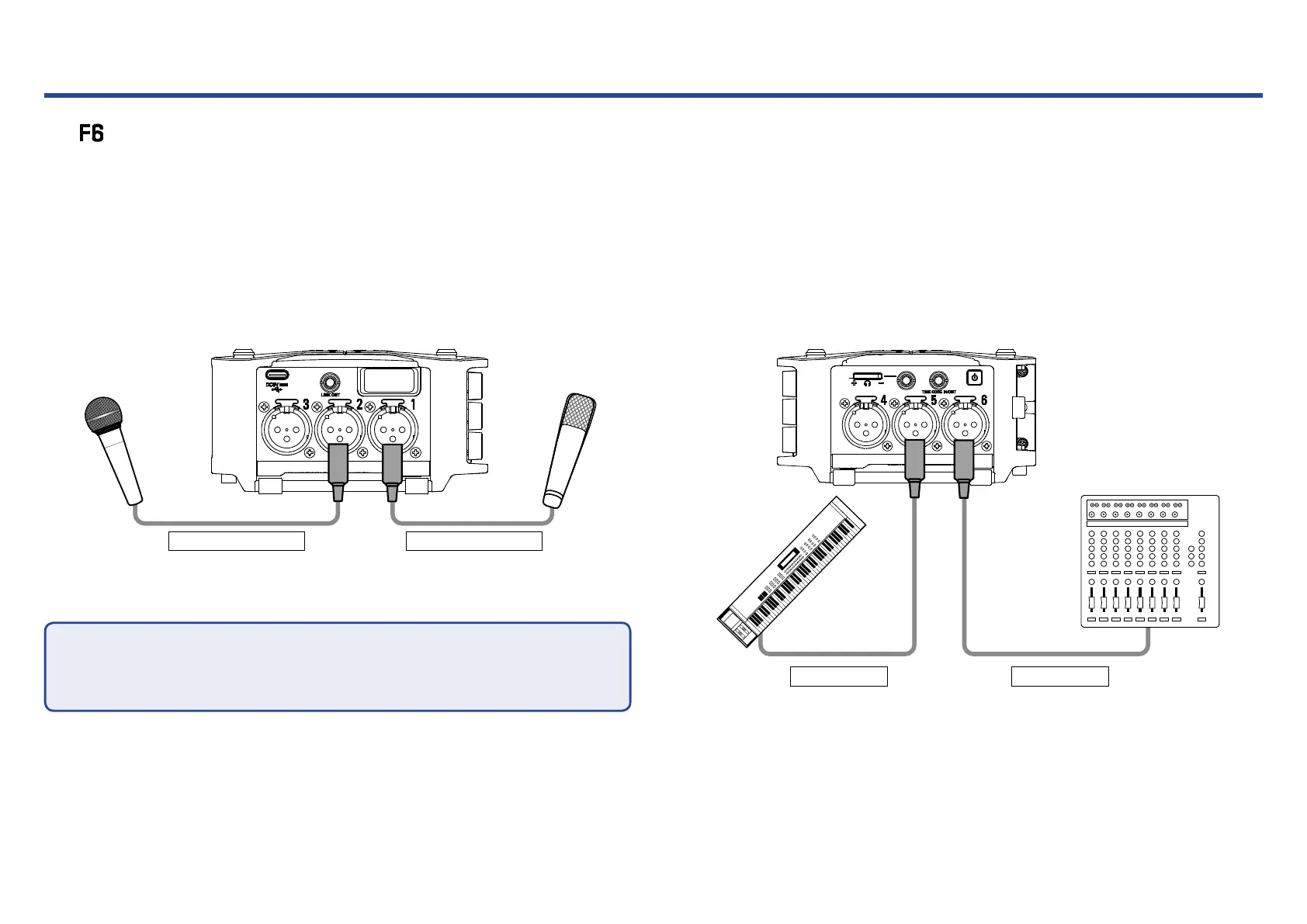

Connect dynamic and condenser mics with XLR plugs to Inputs 1–6.
Phantom power (+24 V/+48 V) can be supplied to condenser mics.
( →P.78)
Dynamic mic
(XLR cable)
Condenser mic
(XLR cable)
NOTE
When disconnecting an XLR cable, pull the XLR plug while pushing the con-
nector lock release button.
Connecting line level equipment
Connect XLR cables from keyboards and mixers directly to Inputs 1–6.
Direct input of passive guitars and basses is not supported. Connect
these instruments through a mixer or effects device.
(XLR cable)
Keyboard
(XLR cable)
Mixer
The can record 6 individual tracks that correspond to Inputs 1–6 and a stereo mix of these inputs with left and right tracks.
Mics and the outputs of instruments and audiovisual equipment, for example, can be connected to Inputs 1–6 and recorded to tracks 1–6.
Connecting mics
