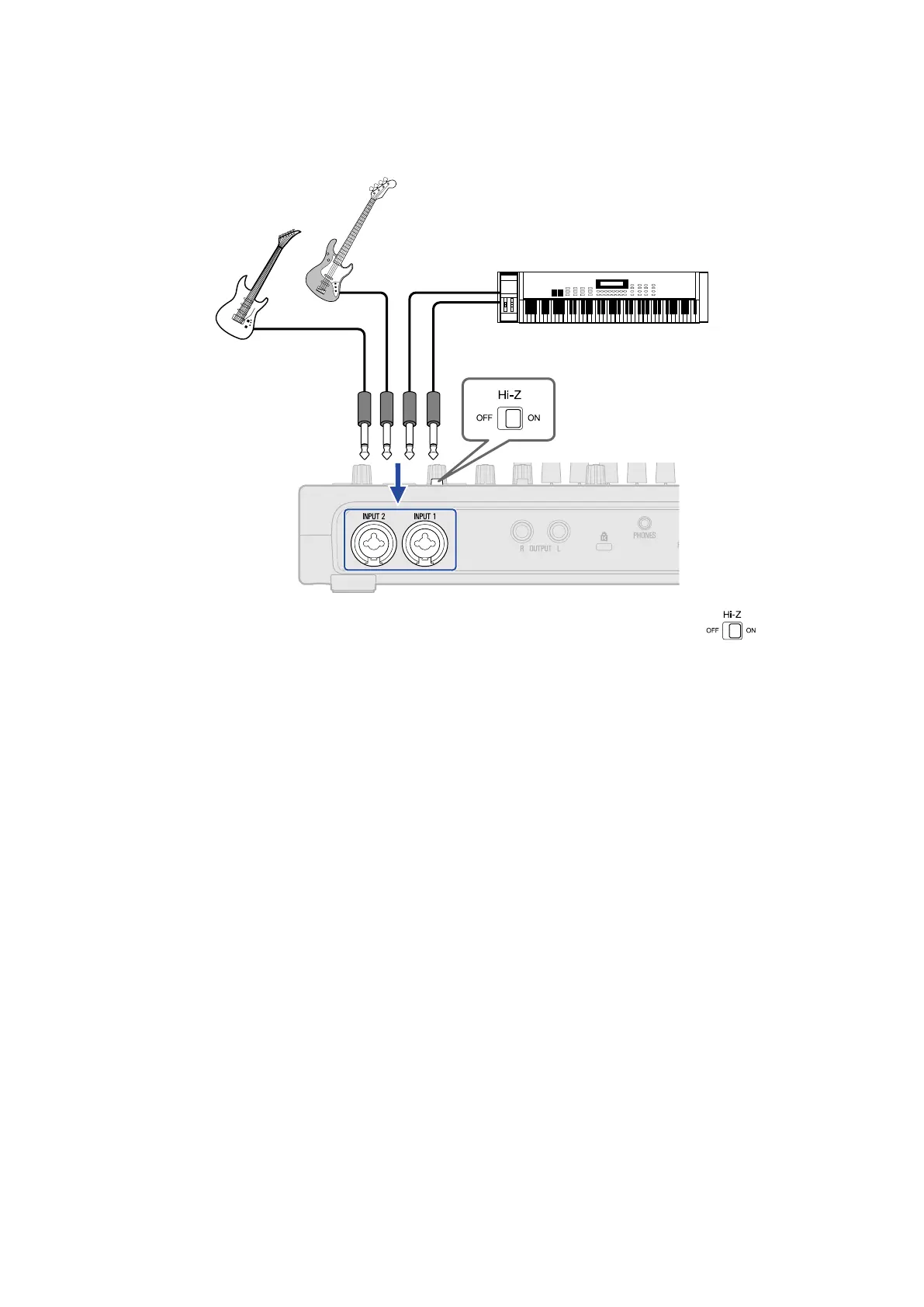

■ Connecting guitars, basses and other instruments

Guitars, basses, synthesizers and other electronic instruments can be connected to INPUT 1 and 2 using

cables with standard 1/4-inch plugs.

When directly connecting a guitar or bass with passive pickups, use INPUT 1 and set to ON.

Notes about this Operation Manual2
Table of Contents3
R12 Overview6
Terms Used in this Manual6
Functions of Parts7
Connection Example12
Touchscreen Display13
Home Screen Overview13
Control Bar Overview18
Touchscreen Operation Overview21
Making Preparations24
Inserting Microsd Cards24
Connecting Output Devices25
Supplying Power26
Turning the Power On/Off28
Setting the Date and Time (First Time Starting Up)30
Opening Projects32
Creating New Projects33
Opening Projects38
Changing Project Settings40
Opening the Screen Where Various Project Settings Can be Made40
Changing Project Tempos41
Changing Project Time Signatures42
Setting the Click (Metronome)43
Setting Tracks for Output as MASTER and CLICK Signals47
Changing the Snap Setting49
Using the Tuner50
Selecting the Tuner Type51
Setting the Standard Pitch of the Tuner52
Using Flat Tunings52
Recording53
Recording Process53
Making Input Settings54
Making Track Settings63
Using Effects69
Editing Patch Memories73
Recording79
Using Internal Rhythm Loops81
Using the Synthesizer84
Selecting the Synth Sound84
Recording86
Playing Projects87
Editing Projects89
Editing Regions89
Editing Waveforms (Audio/Rhythm Regions)105
Editing Notes (Synth Regions)110
Editing Tracks115
Using Markers121
Mixing Projects127
Checking Track Levels127
Muting Tracks128
Listening to Selected Tracks Only (Soloing)129
Adjusting the Volume130
Adjusting the Panning, EQ and Effects of Tracks132
Mixing down133
Managing Projects134
Folder and File Structure on Microsd Cards134
Folder and File Structure on USB Flash Drives136
Opening the Project Option Menu138
Changing Project Names140
Duplicating Projects141
Checking Project Information142
Deleting Projects143
Rendering Projects as WAV Files144
Saving Projects to USB Flash Drives146
Importing Projects from USB Flash Drives147
Using as an Audio Interface149
Installing Drivers149
Connecting Computers, Smartphones and Tablets150
Making Audio Interface Settings153
Using as a Control Surface156
Enabling Control Surface Use156
Making DAW Settings156
R12 Functions157
Playing Back Projects in Order (Sequential Play)158
Creating Playlists158
Editing Playlists161
Deleting Playlists163
Changing Playlist Icon Colors164
Playing Playlists165
Using Guitar Lab169
Connecting to a Computer169
Using MIDI Keyboards172
Connecting MIDI Keyboards172
Setting the Auto Power off Function173
Setting the Date and Time174
Setting the Type of Batteries Used176
Adjusting the Brightness of the Touchscreen177
Setting the Touchscreen Backlight178
Managing Microsd Cards179
Checking Microsd Card Information179
Testing Microsd Card Performance180
Formatting Microsd Cards182
Using as a Card Reader184
Restoring Default Setting Values187
Managing the Firmware189
Checking the Firmware Versions189
Updating189
Appendix190
Troubleshooting190
Block Diagram191
MIDI Implementation Chart192
Specifications193

Brand	Zoom
Model	MultiTrak R12
Category	Recording Equipment
Language	English
