Cutter with material transport and CE
57
8.3.1 Cutter with material transport
Two drilling templates are included in the scope of delivery. These are used to mark the drill holes on
the bases of the cutter.
The number and labeling indicate the cutter size and side to which the drilling template applies.
The printed line that goes all the way through facilitates the right-angled alignment to the cutter covers
and the longitudinal pipe of the cutter extension.
Number Cutter Position
5210809 G3 with CE and material transport
M, L, XL, 2XL, 3XL
Front left and rear right
5210771 G3 with CE and material transport
M, L, XL, 2XL, 3XL
Front right and rear left

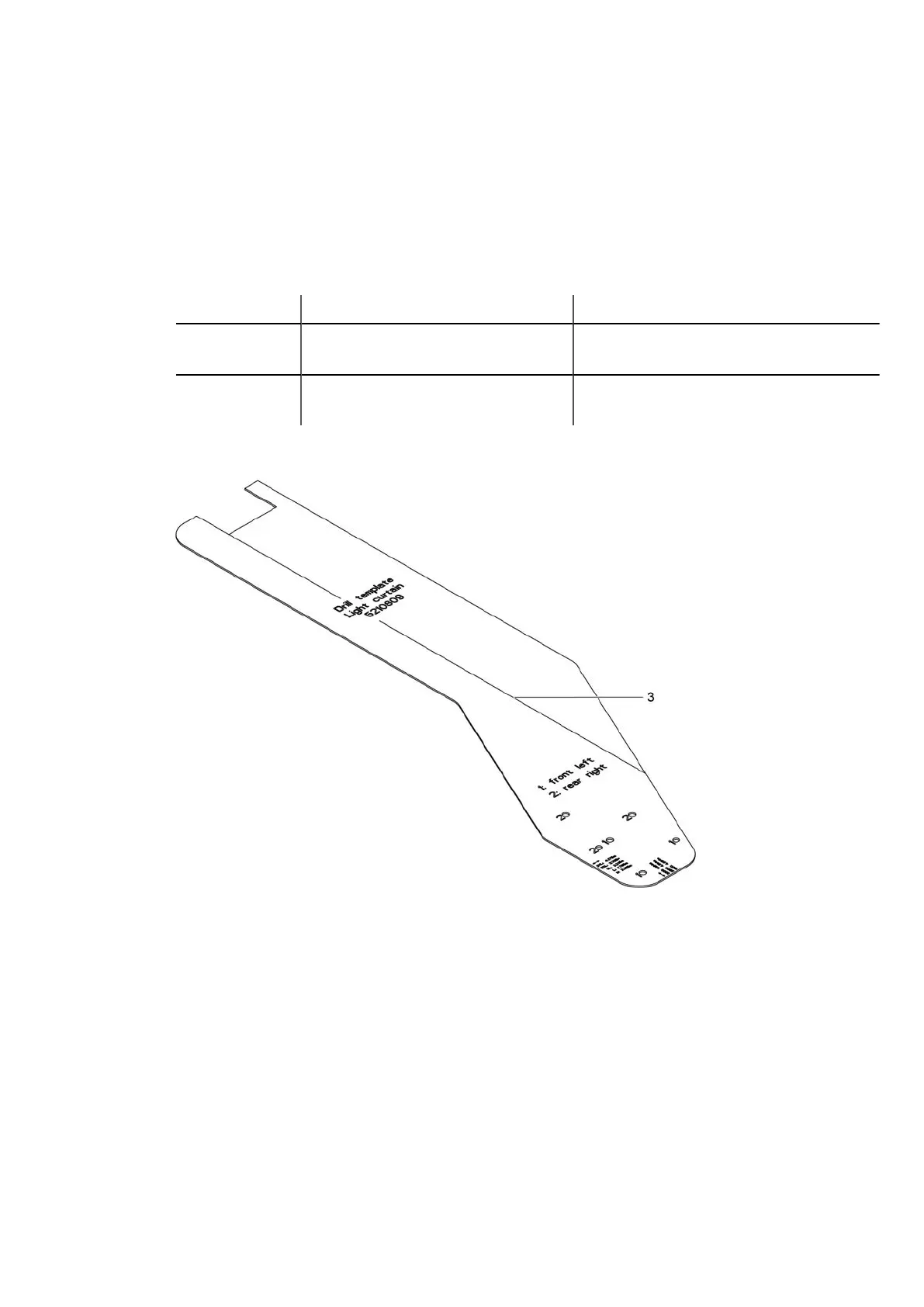

Example of a drilling template
1 Drill holes for front right
2 Drill holes for rear left
3 Support line for alignment
Reference dimension on the drilling template
