Cutter with material transport and CE
59
Segment anchors used pcs.
M12 segment anchor (HST anchoring bolt M12 x 115/20) 12
Note:
If the segment anchor protrudes too far after placing, there will be a space issue when assembling
the pillars.
• The minimum depth of the drill hole is 95 mm.
• After driving in the segment anchor, there should be a maximum overhang of approx. 30 mm.
A Drill the holes at the marked points.
B Remove the drilling dust from the holes.
C Drive in the segment anchor to the required depth.
D Remove the nuts and washers and put them aside.

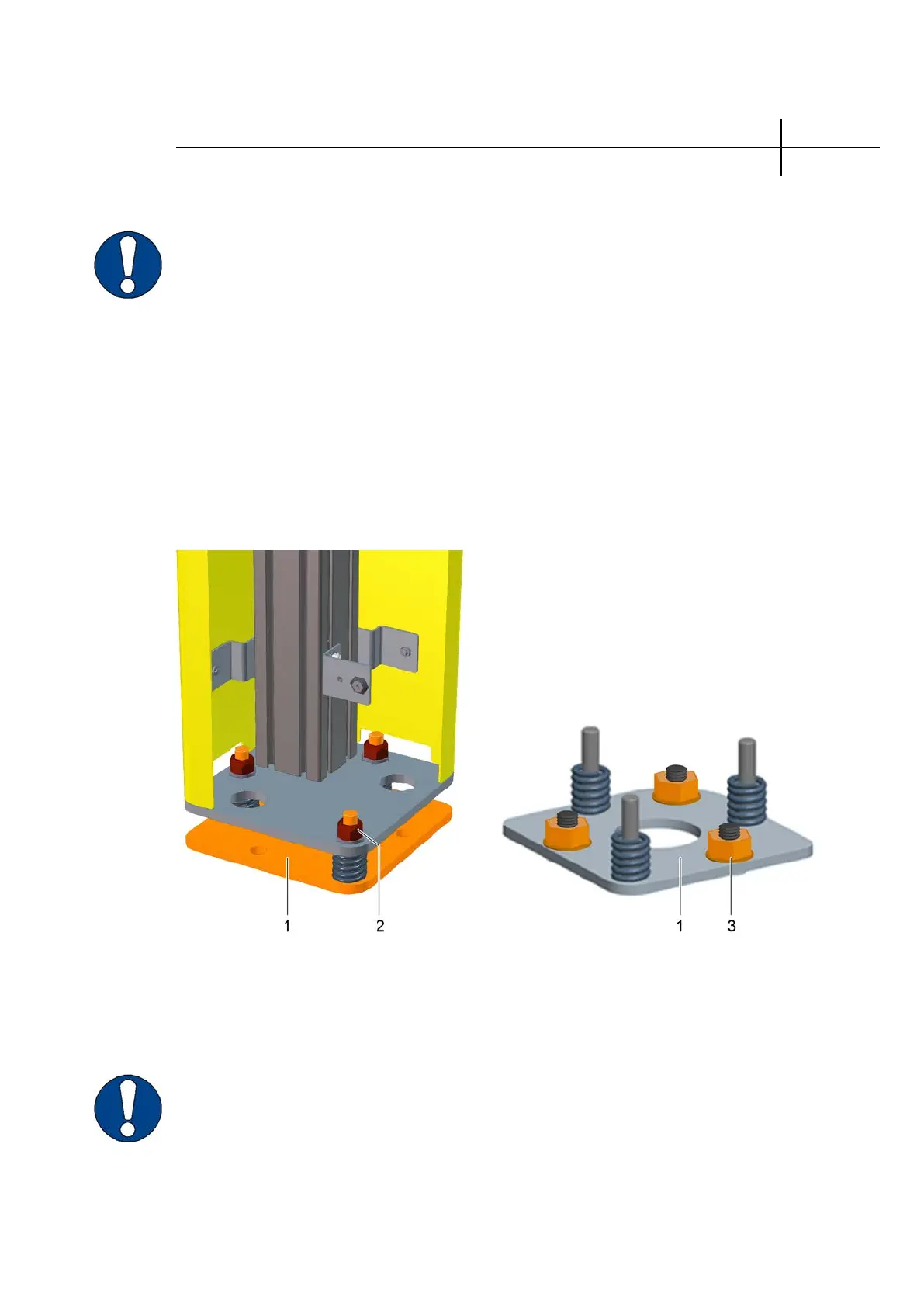

8.3.3 Mounting the base plates on the segment anchors
1 Base plate 3
2 Pillar nut
Nut and washer of the segment anchor
Note:
Alignment of the base plate:
• The corner with the large radius must always point outwards.
Shimming of the base plate:
