Cutter with material transport and CE
65

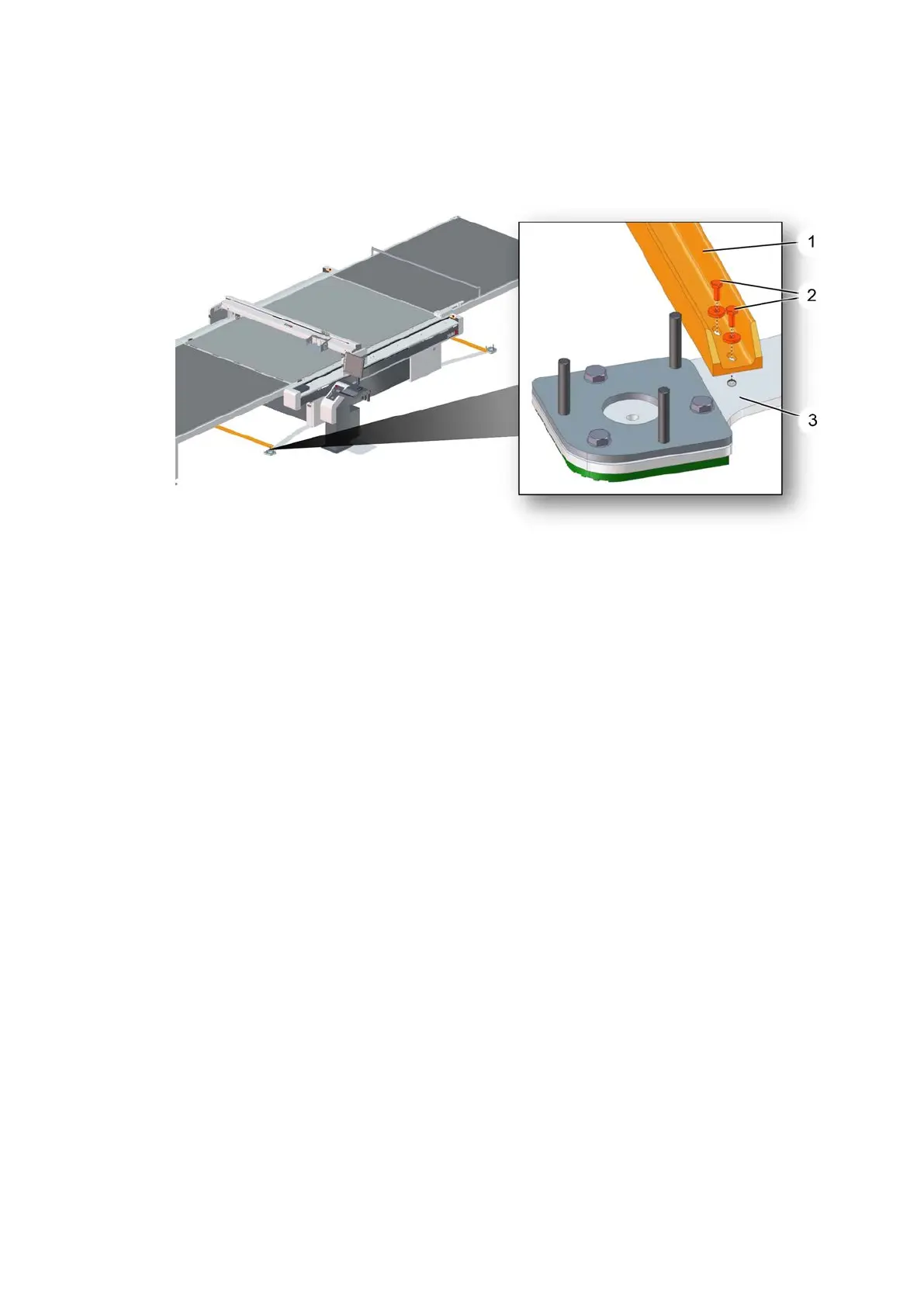

8.4.3 Attaching the cross braces to the auxiliary brackets
Attaching the cross braces stabilizes and centers the auxiliary brackets.
1 U-profile
2 Washers and screws (8x)
3 Auxiliary bracket
A Place the U-profile on the auxiliary brackets.
B Place a screw on the left and on the right and align the auxiliary brackets.
C After alignment, position the second screws on the left and on the right.
D If necessary, align the auxiliary brackets again and tighten the screws.
E Repeat the process on the other side.
