Setting up the light curtain
75
Red light grid (type 450L-E)

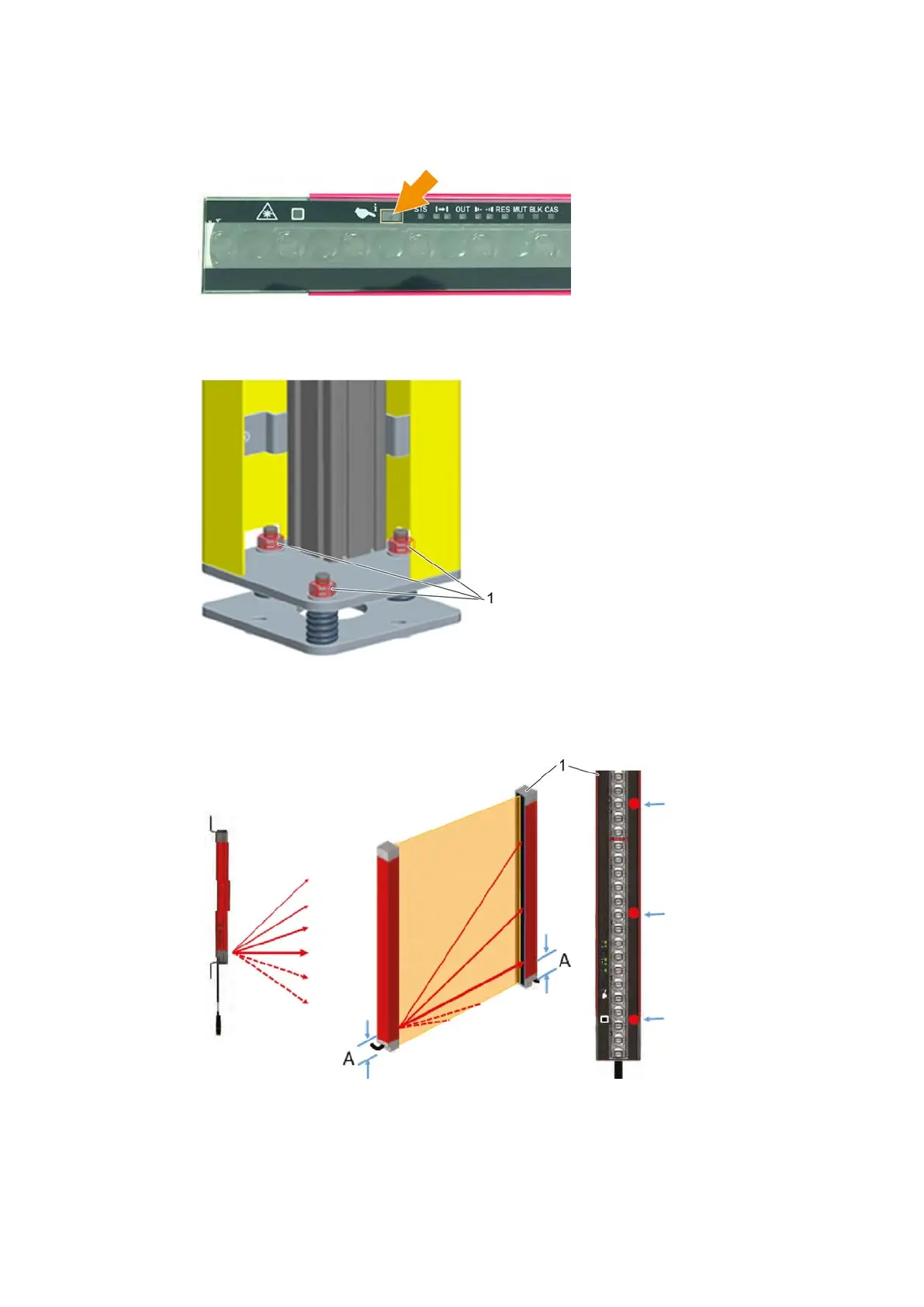

A On the transmitter, press the optical key next to the status indicator.
A laser grid with 6 laser beams is emitted from the transmitter.
B Turn the M12 nuts (1) over the springs of the pillar to adjust the inclination of
the pillar. The inclination of the light grid pillar or the mirror can be adjusted.
C Adjust the inclination until the laser points on the receiver (1) point to the black surface as shown.
The distance (A) between the laser output (square on the transmitter) and the laser point (laser
symbol on the receiver) opposite the housing must be the same.
