Setting up the light curtain
76

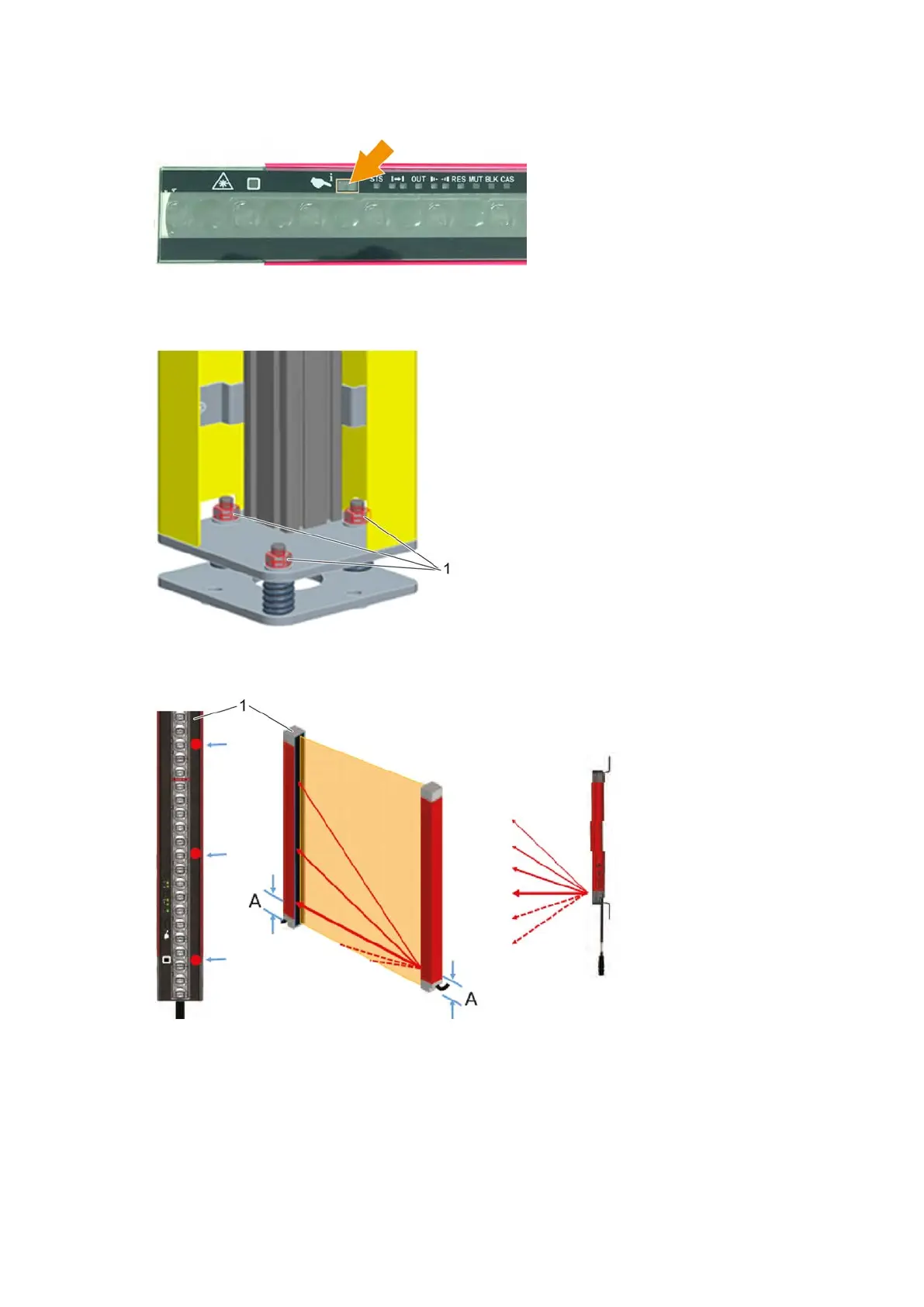

D On the receiver, press the optical key next to the status indicator.
A laser grid with 6 laser beams is emitted from the receiver.
E Turn the M12 nuts (1) over the springs of the pillar to adjust the inclination of
the pillar. The inclination of the light grid pillar or the mirror can be adjusted.
F Adjust the inclination until the laser points on the transmitter (1) point to the black surface
as shown. The distance (A) between the laser output (square on the receiver) and
the laser point (laser symbol on the receiver) opposite the housing must be the same.
