Setting up the light curtain
77
10.2.1 Removing the external covers
Tip:
On some pillars, the clamping screws for adjusting the light barrier transmitter/receiver are located
behind the inner cover.

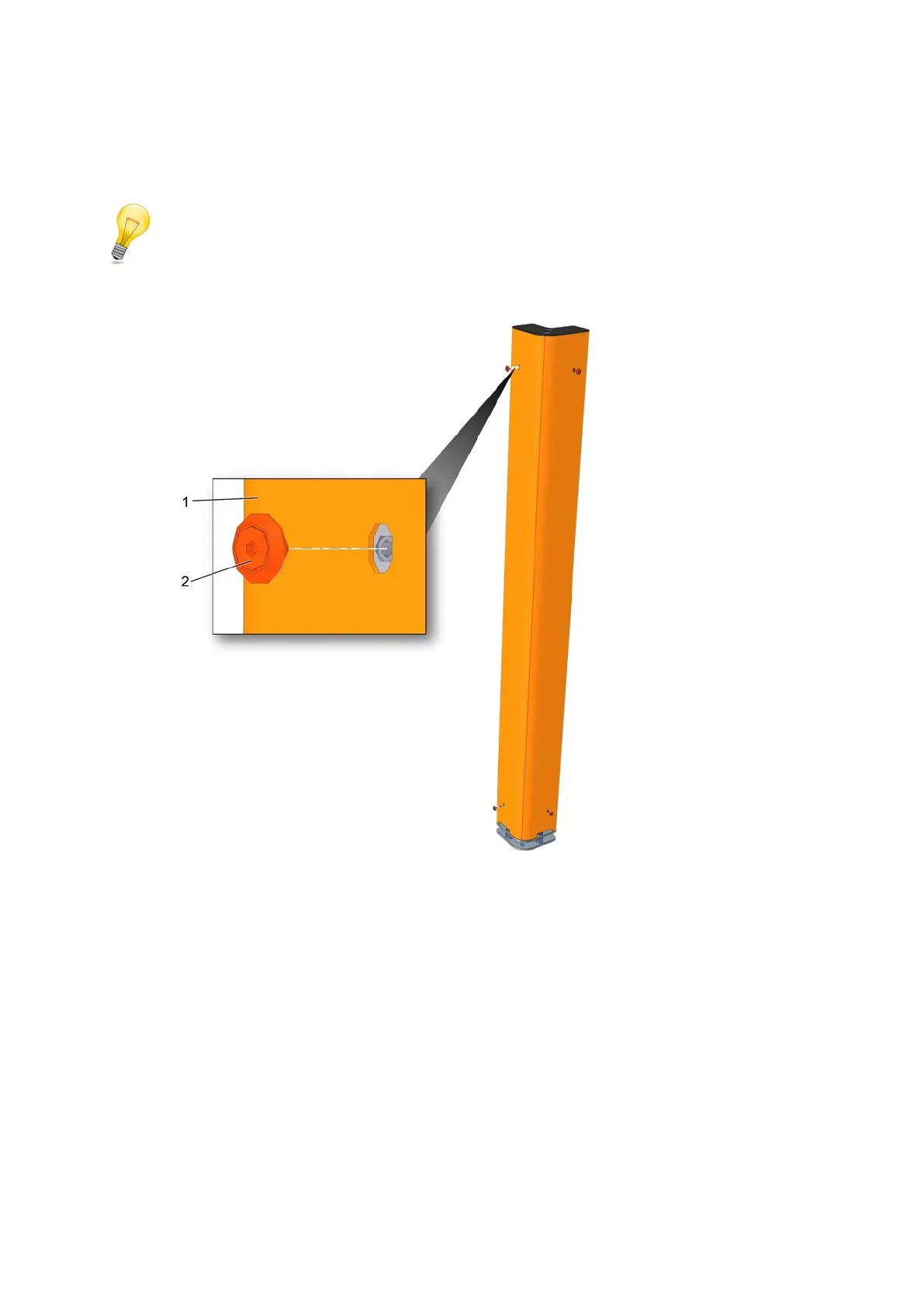

1 Cover
2 Screw with washer
A Remove the screws from the cover (4x).
B Remove the external cover of the pillar.
C Put the cover aside.
D Repeat the process on the other corners.
