Setting up the light curtain
81
10.2.4 Alignment with 2 deflection mirrors
Tip:
Start the alignment on cutter front left.
Always slightly tighten the elements after alignment.
A small deviation of the laser point from the target is permissible (see Aligning the light curtain on
page 74).

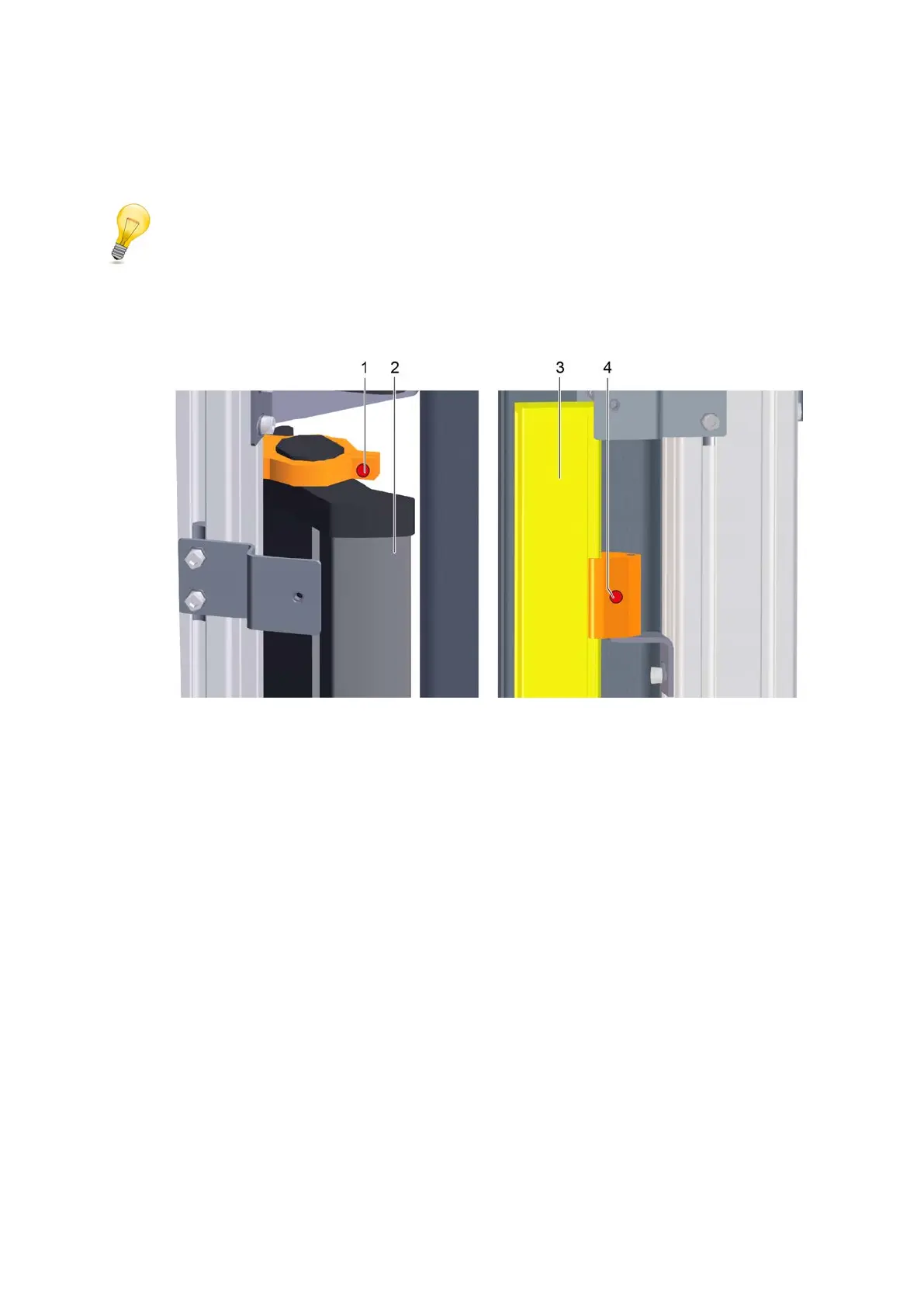

1 Clamping screw 3 Light barrier transmitter/receiver
2 Mirror 4 Clamping screw
Explanation for aligning the light barrier transmitter, receiver, and mirror:
• To align the mirror, slightly loosen the clamping screws (1) (2x).
• To align the light barrier transmitter/receiver, slightly loosen the clamping screws (4) (2x).
