7.7 Status Screen in Easy Mode
In the Network Map screen, click Status to view read-only information about the Router.

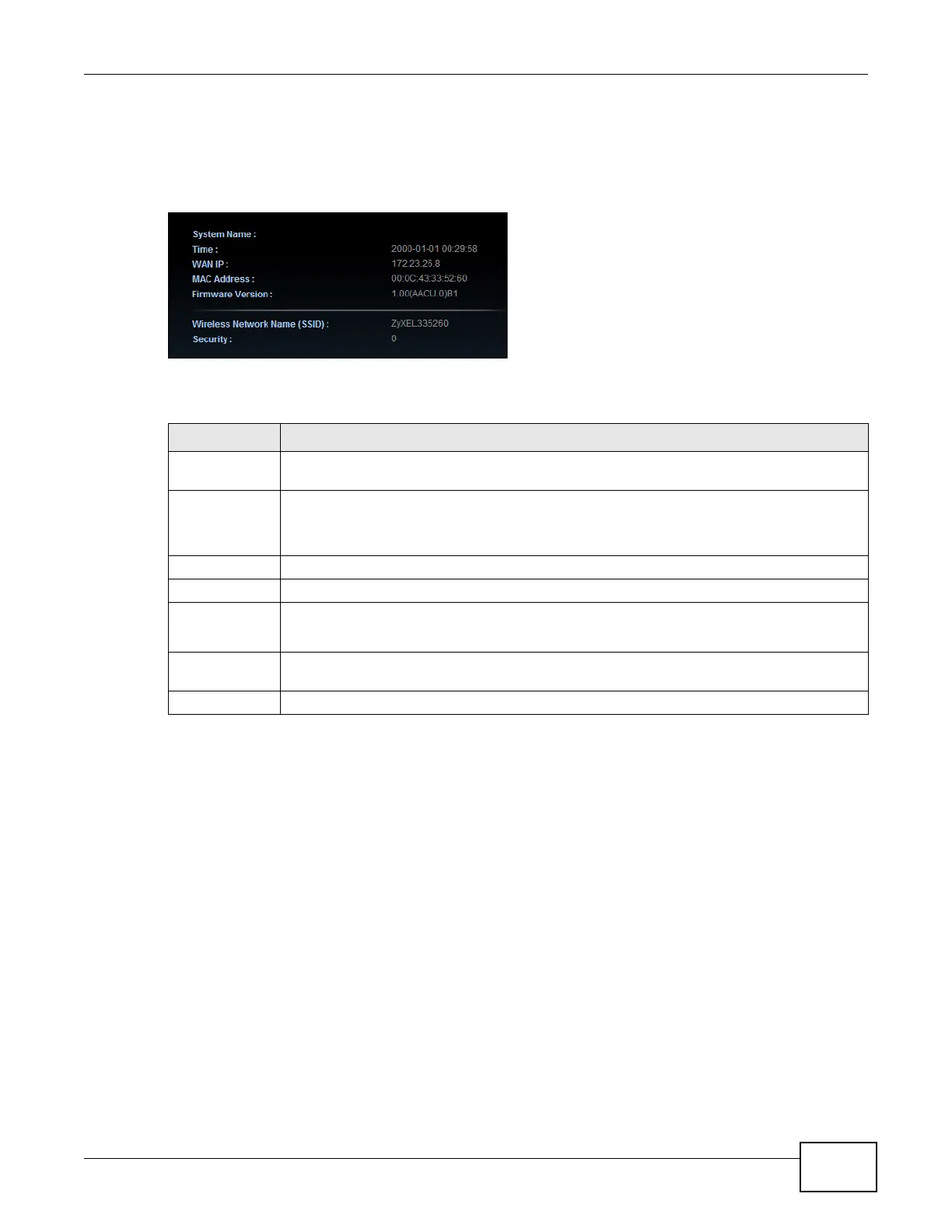

Figure 43 Status Screen in Easy Mode
The following table describes the labels in this screen.
Table 28 Status Screen in Easy Mode
ITEM DESCRIPTION
Name This is the name of the Router in the network. You can change this in the Maintenance >
General screen in Section 25.3 on page 179.
Time This is the current system date and time.
The date is in YYYY:MM:DD (Year-Month-Day) format. The time is in HH:MM:SS
(Hour:Minutes:Seconds) format.
WAN IP This is the IP address of the WAN port.
MAC Address This is the MAC address of the Router.
Firmware
Version
This shows the firmware version of the Router.
The firmware version format shows the trunk version, model code and release number.
Wireless
Network Name
This shows the SSID of the wireless network. You can configure this in the Wireless Security
screen (Section 7.6.6 on page 58; Section 12.3.1.1 on page 102).
Security This shows the wireless security used by the Router.
