Pannoramic 250 1.15 User’s Guide 5 Troubleshooting and Maintenance
5.3.2 Replacing fuses of the main power switch
1. Switch off the main power supply and disconnect the power cable (see section 1.1.4 Main
parts of the Base Unit).
2. The fuse compartment is located next to the main power supply switch at the back side of
the Pannoramic 250.
3. Release lock (1) by pushing the lever to the left, so the insert (2) can be pulled out.

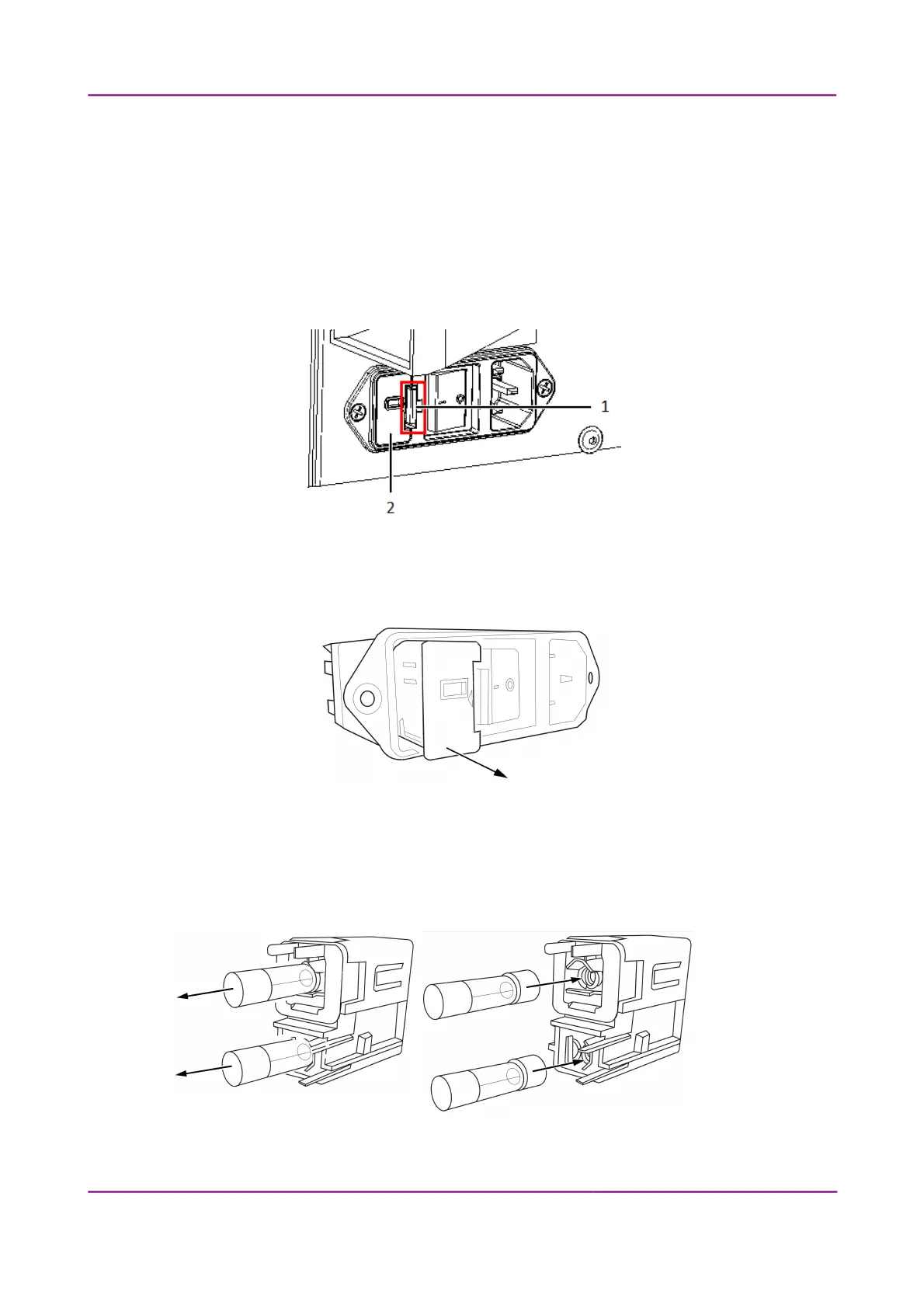

Figure 78 – Fuse compartment
4. Remove insert from the compartment.
Figure 79 – Removing the fuse insert
5. Replace fuses, put the insert back into its mounting, and push it inwards until you hear a
snap, so the lever locks.
Figure 80 – Replacing the fuses
March 13, 2012 – Rev. 1 3DHISTECH Ltd.
121(135)
