3DHISTECH Pannoramic 250 - Main Parts of the Base Unit; System Overview

Pannoramic 250 1.15 User’s Guide 1 Product Description
1.1.4 Main parts of the Base Unit
The following figures show the main parts of the base unit.

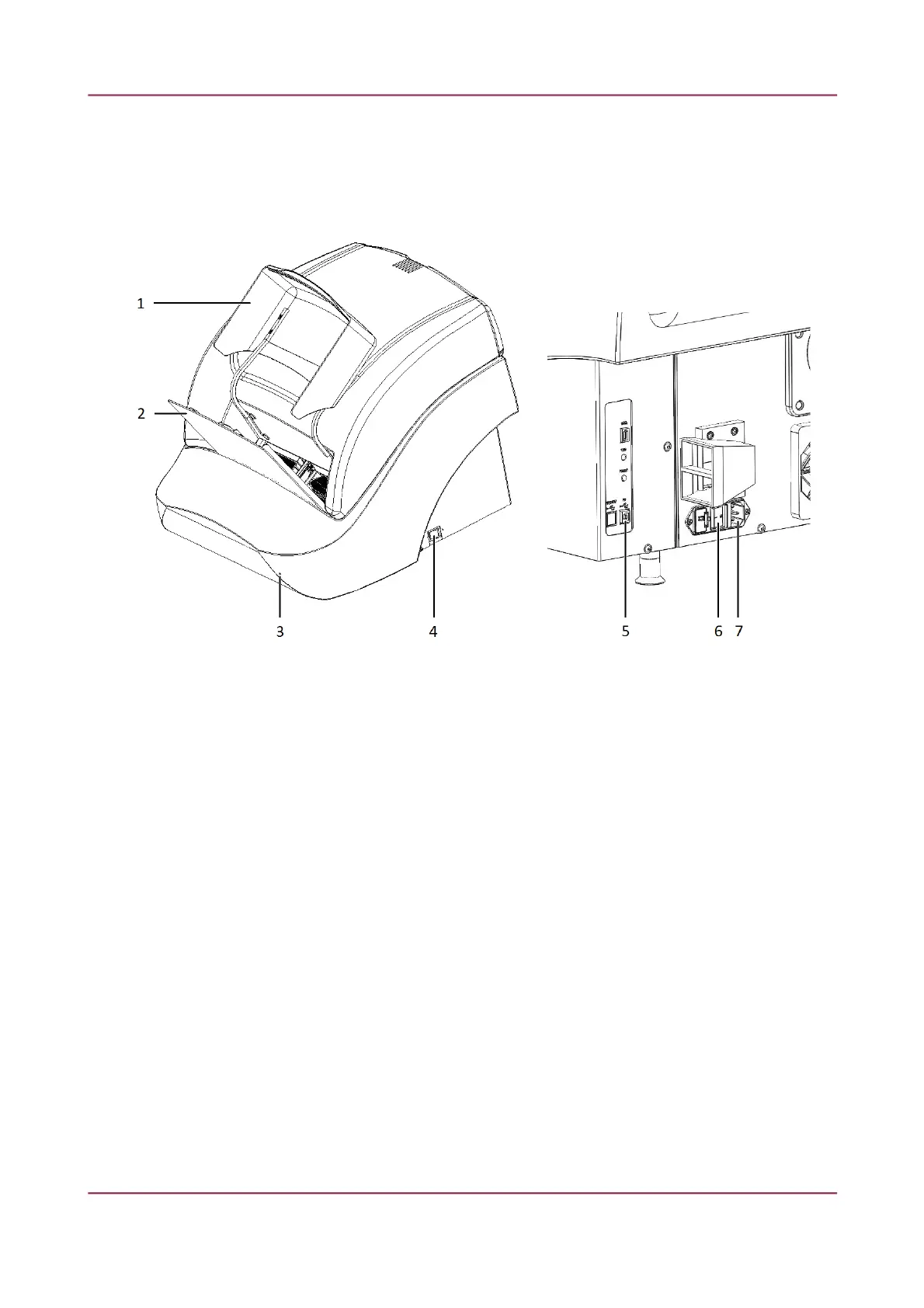

Figure 2 – Main parts of base unit
1. Protective FL cover
2. Input and output stack for magazines
3. Cover release hole
4. Power supply switch
5. USB port
6. Main power switch
7. Power supply cable connector
1.2 System Overview
The standard scope of delivery of the product includes the following hardware and software
components.
