SmartStrap™ Connection
The CTC Smart Strap
™
Model C1100 supports
Inactive Pair testing only and requires a separate,
good control pair. A Wideband Module Model
C1110W is required for Wideband Autotest. At the

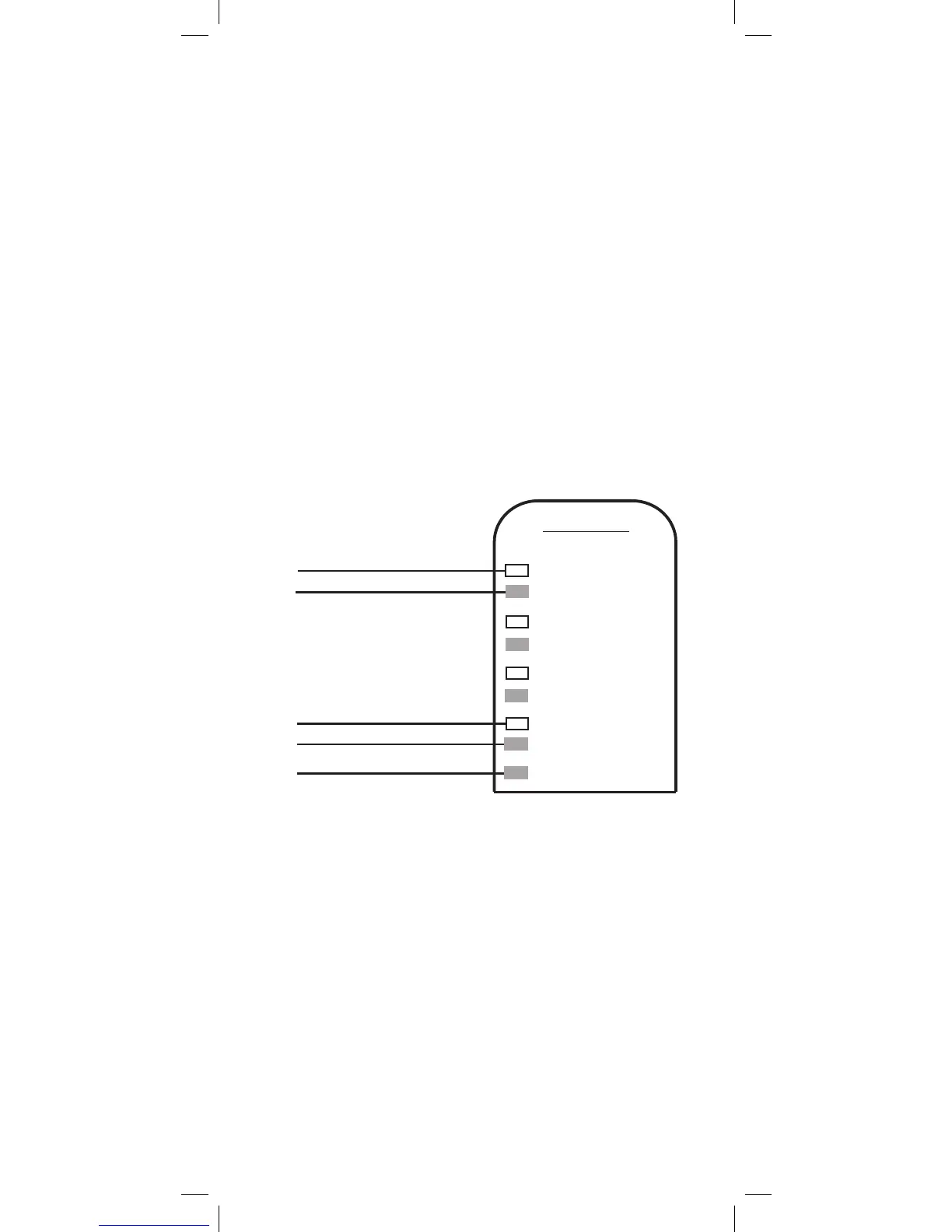

far end of the cable, connect the Control Pair (Pair
0) T and R terminals to the separate control pair
in the cable. Connect the test pair tip conductor to
the T terminal of Pair 1 (or higher) on the Smart
Strap module and the test pair ring conductor to the
R terminal of the same pair. Connect the Ground
terminal to ground. Turn on the Smart Strap. Refer
to the CTC Smart Strap
™
Operator’s Manual for
more information.
