ADSL Connecting

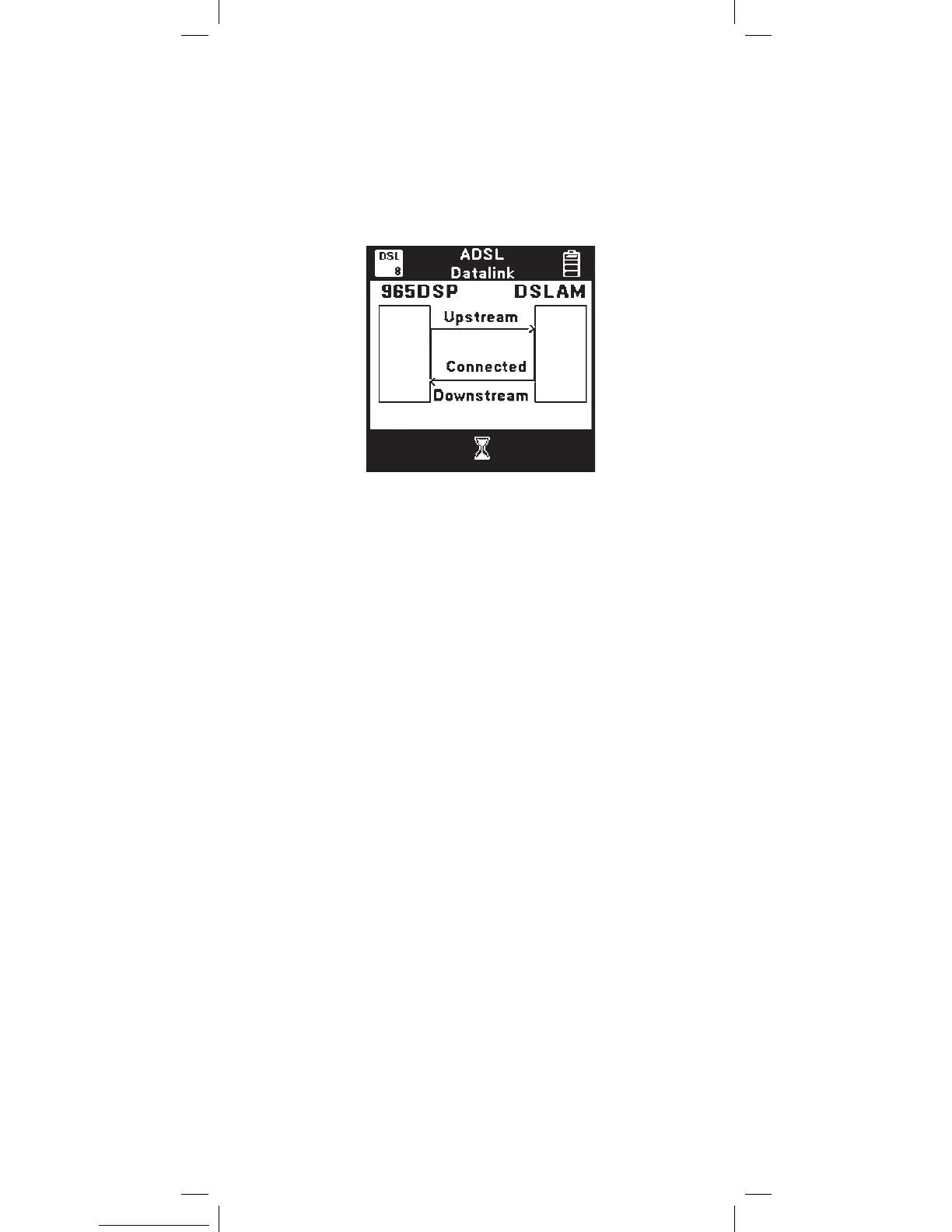

The 965DSP displays this screen while it is
connecting with the DSLAM.
Status messages about the connection process are
displayed as they occur.
The hourglass indicator at the bottom of the screen
is displayed as the connection process proceeds.
Connection states include:
Starting: The ADSL modem in the 965DSP is
initializing
Searching: The ADSL modem in the 965DSP is
attempting to locate the DSLAM
Linking: A DSLAM is present, and the
965DSP is synchronizing with it
Connected: The 965DSP has completed the
connection process and has achieved
‘showtime’
Failed: The modem connection process failed
When the modems have connected, the 965DSP
proceeds directly to a connection status screen.
If a connection failure occurs, a warning screen
displaying a text or numeric message indicating the
failure mode is displayed.
ADSL Pass/Fail
When the connection process is complete, the
965DSP displays the Pass/Fail screen
only if
Thresholds are enabled (see ADSL Setup).
