75

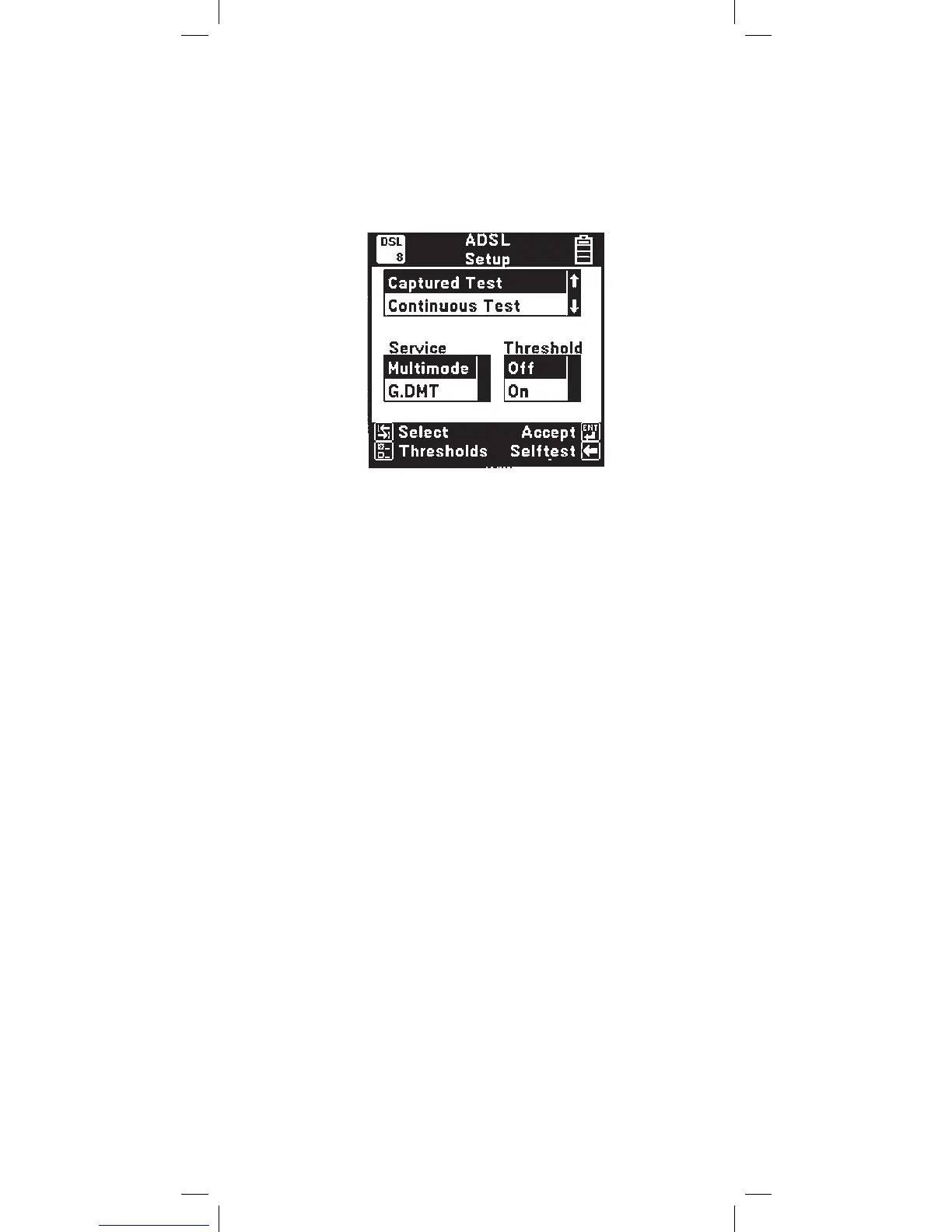

ADSL Setup
Use ADSL setup to select the desired test type,
ADSL service type, and to enable or disable Pass/Fail
thresholds. Use the [Tab] key to move between fields
and the [Up]/[Down] arrows to select an option.
Select Captured Test to set up a link, measure the
line performance, and drop the line automatically to
save battery life. The data screens in Captured Test
mode are ‘snapshots’ of the line performance when
the connection completes.
Select Continuous Test to stay on the line for up
to ten minutes to see if any problems start after
the line has been up for awhile. In Continuous
Test mode the screens are all ‘live’ and display
continuously updated data.
Select the desired ADSL Service: G.DMT (full
rate), G.Lite (splitterless), ANSI (frequency division
multiplexing mode), or Multimode (automatically
selects the same mode as the DSLAM).
Select Threshold On or Off to enable or disable
automatic Pass/Fail thresholds in Captured Test
mode only. Use the Thresholds key to edit the
threshold levels.
Press the Selftest key to run a diagnostic test on the
ADSL modem in the 965DSP.
Threshold Setup
Use this feature to set the acceptable data rate and
capacity factor for the ADSL service grade that
you are providing. The ADSL connect rate in each
direction has to meet or exceed the value in the
corresponding Rate field to pass. Enter the
