78

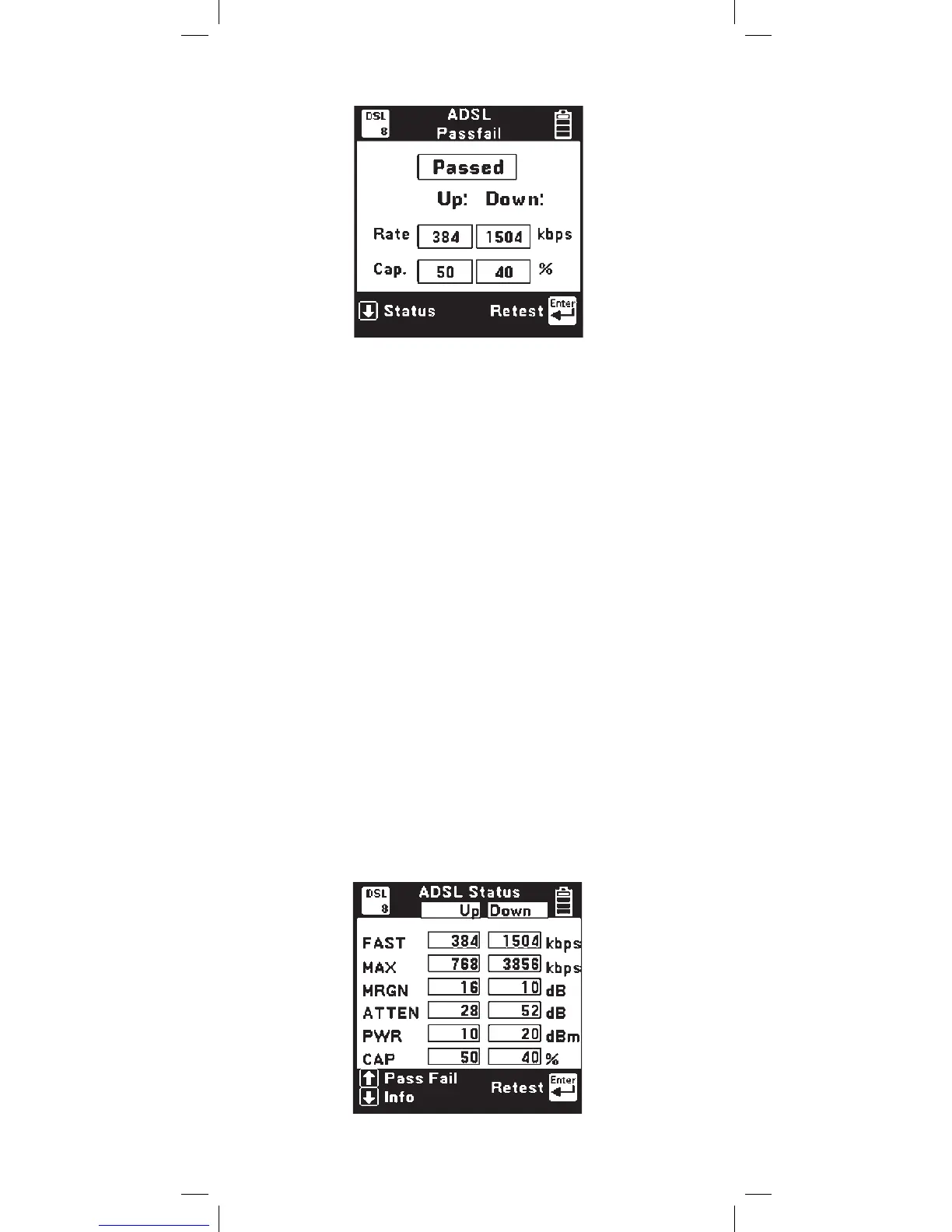

Otherwise, the Status screen below is displayed.
Only the achieved Upstream and Downstream
line rates and capacity values are shown. The pair
PASSED if the line rates were greater than or equal
to the threshold rates and the capacity values were
less than or equal to the threshold capacities.
Press Status key to display more ADSL modem
connection information.
ADSL Status
The 965DSP displays all of the available information
about the ADSL modem connection on three
separate screens. The Status screen displays the
line and channel operational data. ADSL data can
be carried on a fast channel (maximum speed, but
no data correction) and an interleaved channel
(lower speed, but more data integrity). Although
both channels can exist on the same connection, in
practice only one is used. The type of channel is
selected by the DSLAM. The 965DSP displays the
data rate of this channel as well as other performance
data for both data directions as indicated below.
