Peak

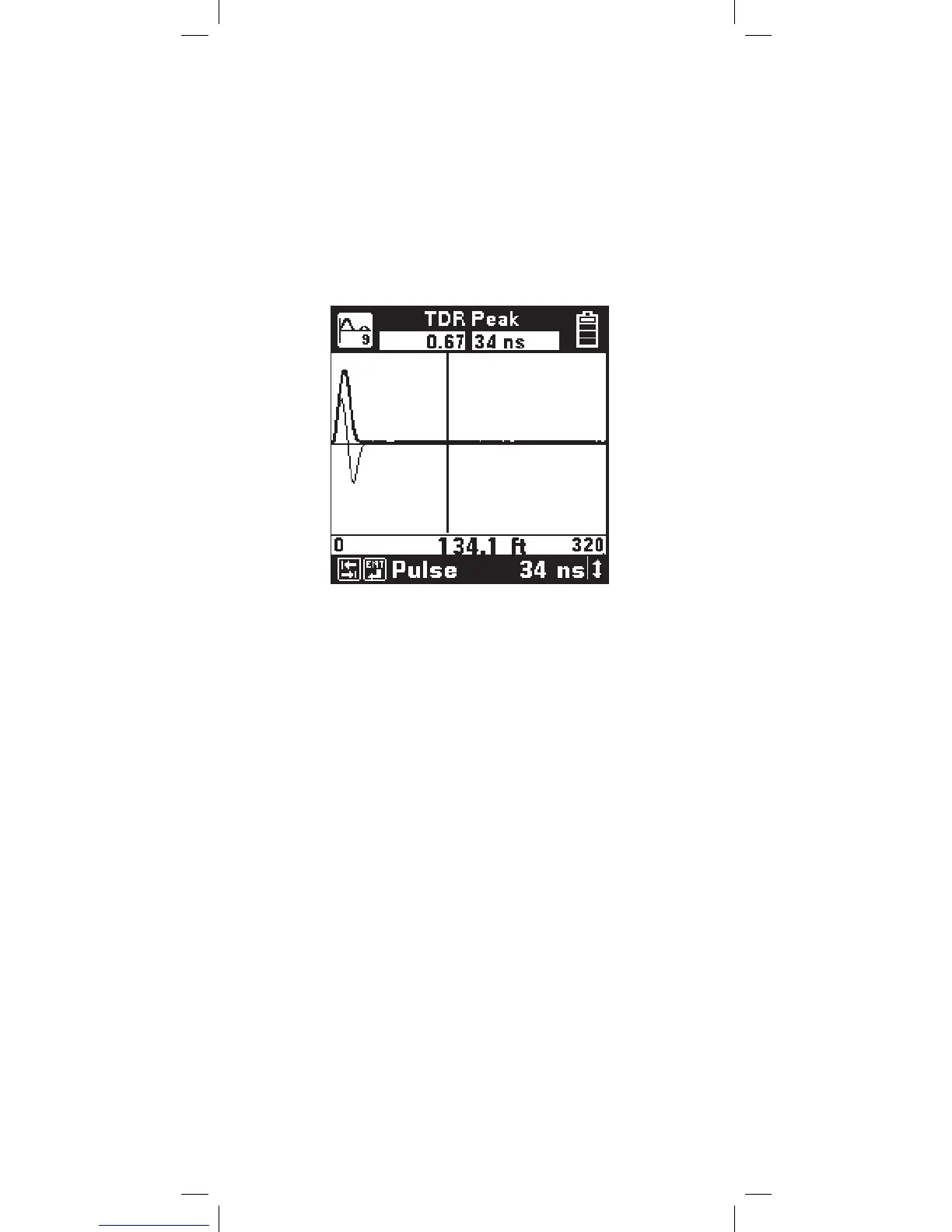

Use the TDR Peak mode to capture events that may
be intermittent. This mode continuously detects and
displays the maximum and minimum traces that
occur from the time that the mode is first selected.
The ‘live’ trace is also displayed continuously. As a
new maximum or minimum trace is detected, it will
replace the previous one on the display.
If the pair being tested is stable (no intermittent
faults), then the minimum, maximum and “live”
traces should appear as a single trace.
If any of the control values are changed, the peak
histories will be erased and new values will begin to
display.
