3M 965DSP User Manual

131

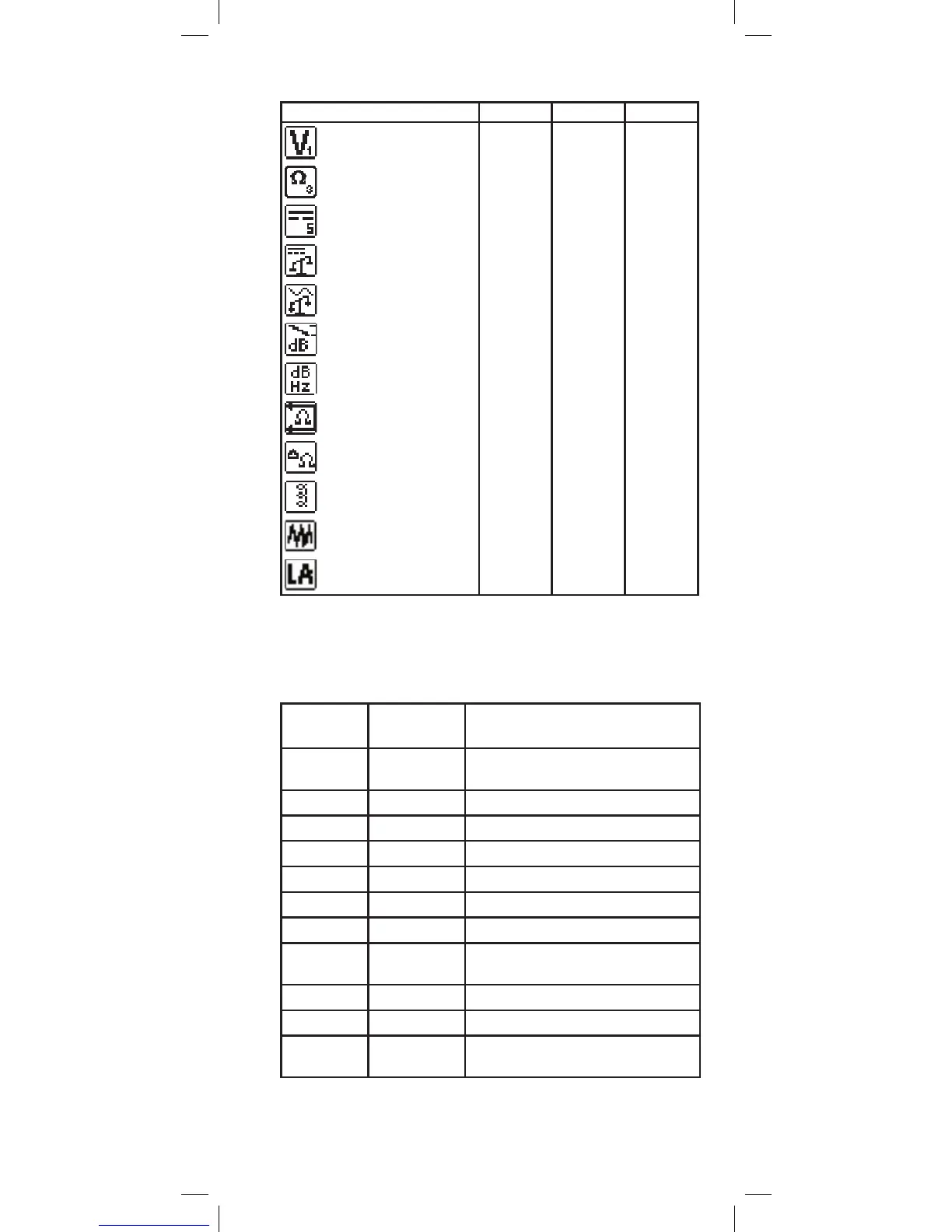

Test Basic Full Pass/Fail
Vdc Yes Yes No
Ohms Yes Yes Yes
Opens Yes Yes Yes
Capacitive Balance Yes Yes Yes
Long. Balance Yes Yes Yes
Sweep Loss No Yes Yes
Single Tone Loss Yes No Yes
Loop Resistance Yes No Yes
Resistive Balance No Yes Yes
Load Coil Yes Yes Yes
Wideband Noise* Yes Yes Yes
Loop Attenuation** Yes Yes Yes
* Only available in H2/4ACC, HDSL2 and HDSL4 service types
(965DSP/SA series)
** Only available in HDSL2 and HDSL4 service types
Wideband Test (with FED/FED II)
Service
Type
Single Freq.
(kHz)
Sweep Freq. (kHz)
POTS 1004 (Hz)
404, 804, 1004, 1204, 2004, 2804,
3004 (Hz)
50 kB 28* 20, 28, 32, 40, 48, 82
64 kB 32* 20, 28, 32, 40, 48, 82
ISDN 40* 20, 28, 32, 40, 48, 60, 70, 82
HDSL 196* 20, 30, 50, 70, 90, 110, 130, 196, 400
T1 772* 200, 400, 500, 700, 772, 1024
E1 1024* 200, 400, 500, 700, 772, 1024
ADSL 138*, 1100*
20, 30, 50, 69, 90, 110, 138, 276, 400,
600, 800, 1000, 1100
H2/4ACC** 196 50, 80, 130, 196, 250, 300, 350
H4RACC** 50, 90, 130 20, 30, 50, 70, 90, 110, 130, 196, 400
H4NACC**
50, 90, 130,
196
20, 30, 50, 70, 90, 110, 130, 196, 400
*Changeable by user
**965DSP/SA series only
Inactive & Wideband Loss Frequencies
