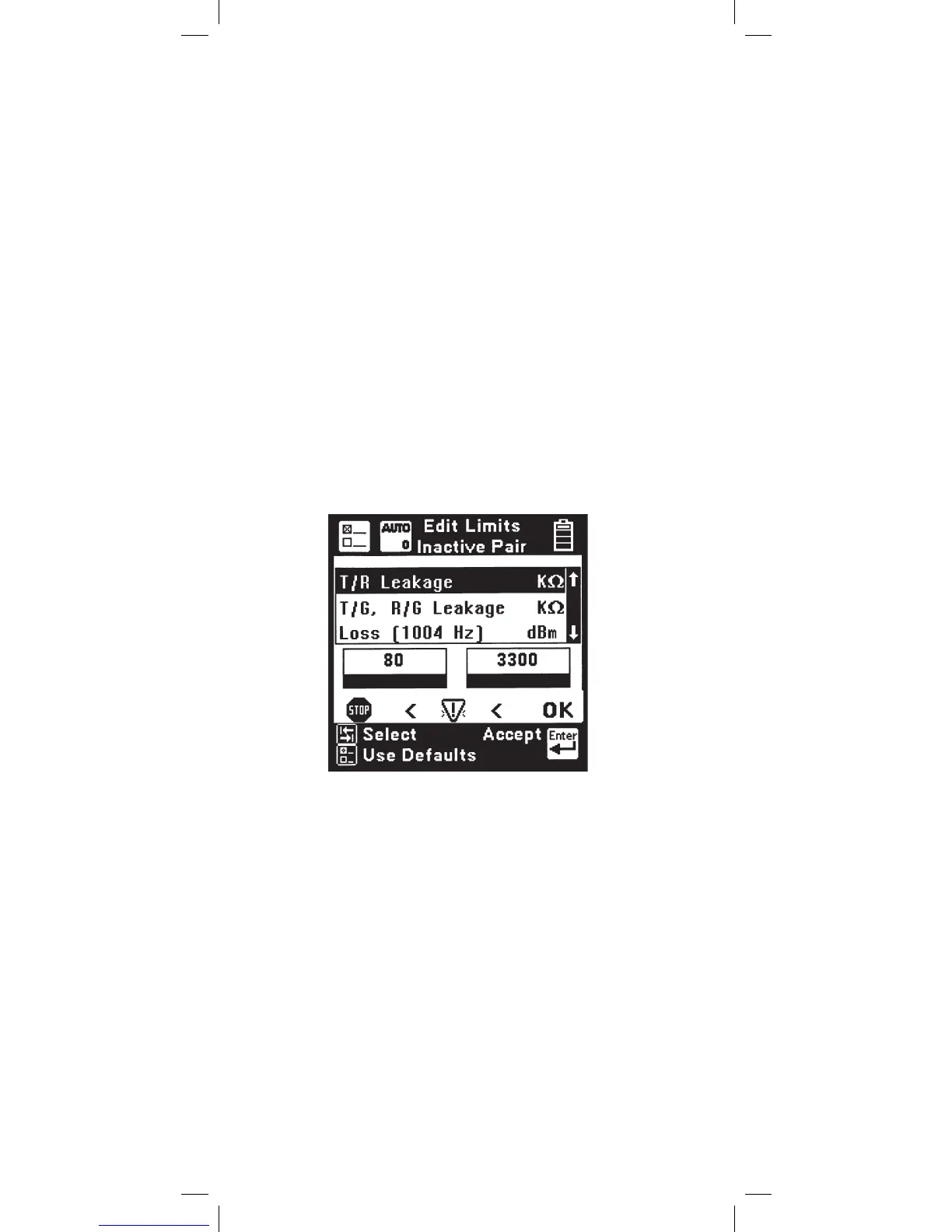

When the Inactive Pair, Active Pair or specific
Wideband service is selected, the Threshold Limits
screen will be displayed. This screen displays a list
of measurements performed in the selected Autotest
and the corresponding pass/fail limits for each
measurement.
The limits indicate the values at which the
measurement result passes (OK), is marginal (Yield
Sign) or is unacceptable (Stop Sign). The lower limit
threshold value is shown in the box on the left, the
upper limit in the box on the right.
If the test result value passes or is unacceptable, the
pass/fail result will correspond to the symbol under
the box (either Stop or OK). If the test result value is
between the upper or lower limit, the pass/fail result
will be marginal (Yield Sign).
Use the [Up] and [Down] keys to highlight the
desired test. Use the [Tab] key to move the cursor
to the limit value and enter the new value using the
blue keys. Press the [Setup] key to restore the factory
default values for the selected test. Press the [Enter]
key to accept the changes or the [Return] key to
ignore all changes and return to the Threshold Setup
screen. If invalid limits are entered, a warning screen
will be displayed. Press the [Enter] key to return to
Edit Limits screen and make appropriate changes to
the limits.
