ABB ACS800-17LC - Connection Diagram - Parallel Inverter Modules Feed One Motor

Electrical installation
95

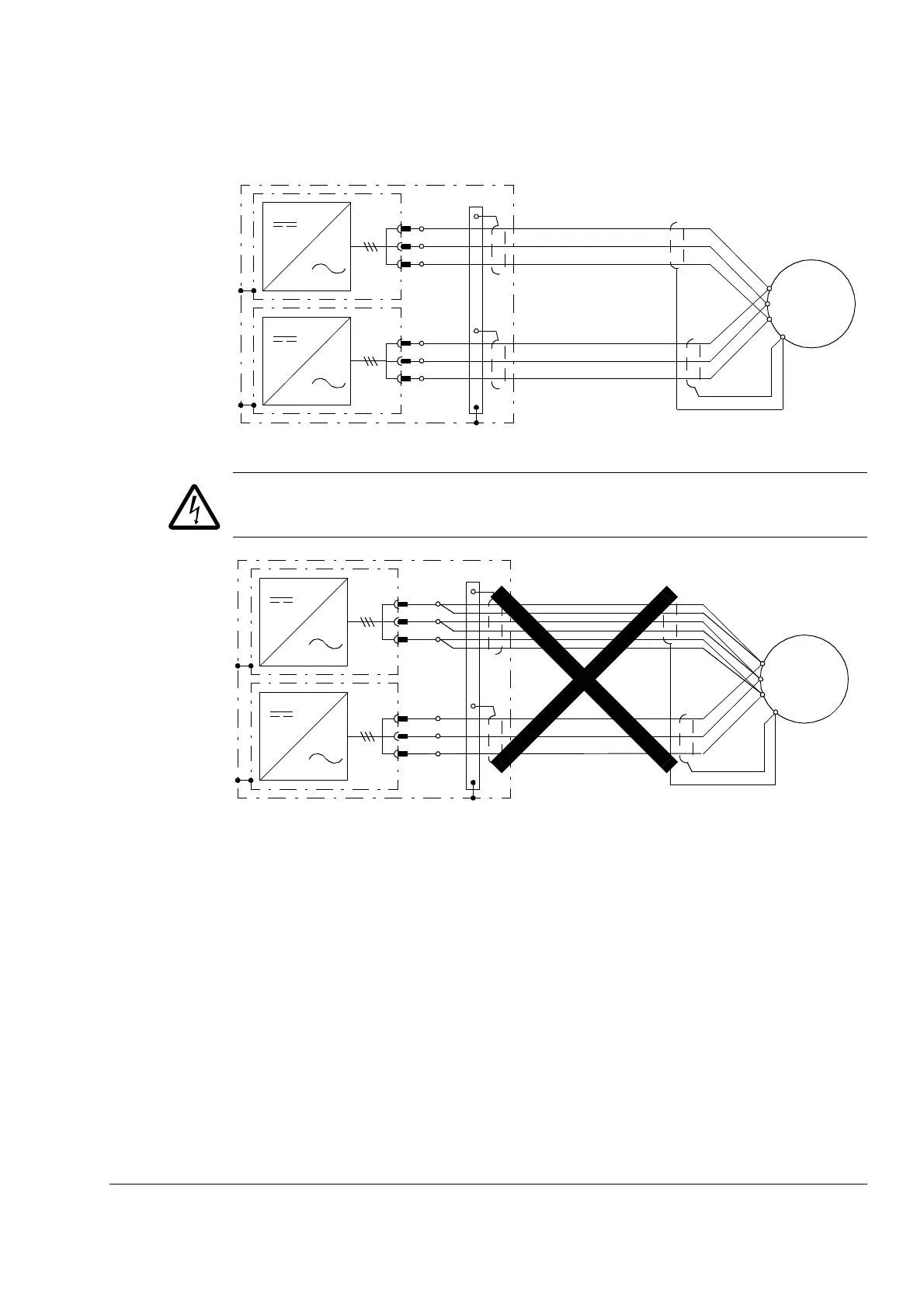

Connection diagram – parallel inverter modules feed one motor
WARNING! The cabling from all inverter modules to the motor must be physically
identical considering cable type, cross-sectional area, and length.
U2
V2
W2
PE
U2
V2
W2
M
3~
U1
W1
V1
PE
Inverter module cubicle
PE
Inverter module cubicle
U2
V2
W2
U2
V2
W2
M
3~
U1
W1
V1
PE
