Mechanical installation
61
Alternative 2 – Using the holes inside the cabinet
The cabinet can be fastened to the floor using the fastening holes inside the cabinet,
if they are accessible. The recommended maximum distance between the fastening
points is 800 mm (31.5”).
If there is not enough working space behind the cabinet for mounting, replace the
lifting lugs at the top with L-brackets (not included) and fasten the top of the cabinet
to the wall.

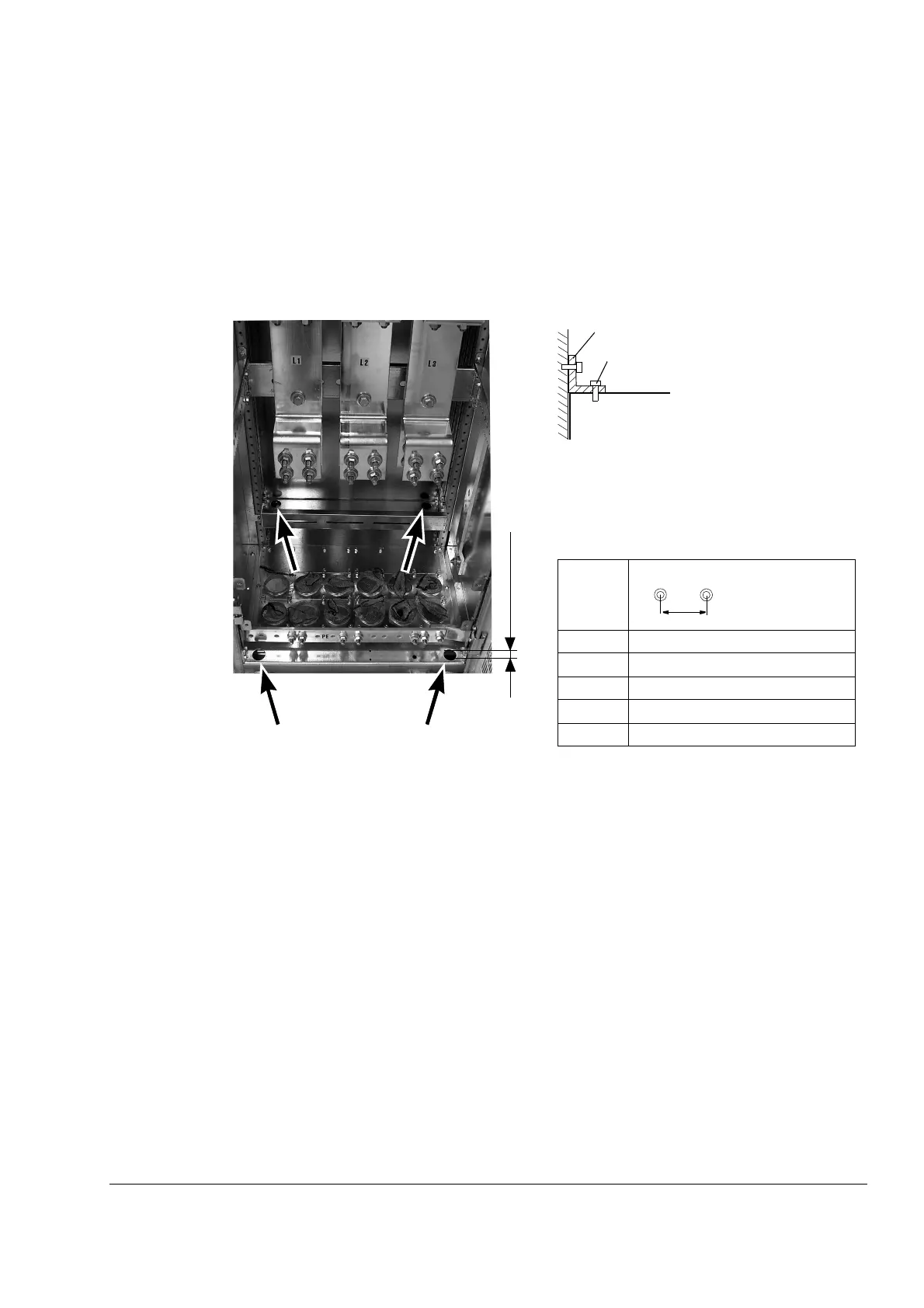

Fastening holes inside the cabinet (arrowed)
25 mm (0.985”)
Distances between the bottom fastening holes
Bolt size: M10 to M12 (3/8” to 1/2”)
Cubicle
Width
Distance between holes
300 150 mm (5.9”)
400 250 (9.85”)
600 450 (17.7”)
700 550 (21.65”)
800 650 (25.6”)
Fastening the cabinet at the top when floor
mounting from back is not possible (side view)
L-bracket
M16 screw
Cabinet top
