36 Quick start-up guide

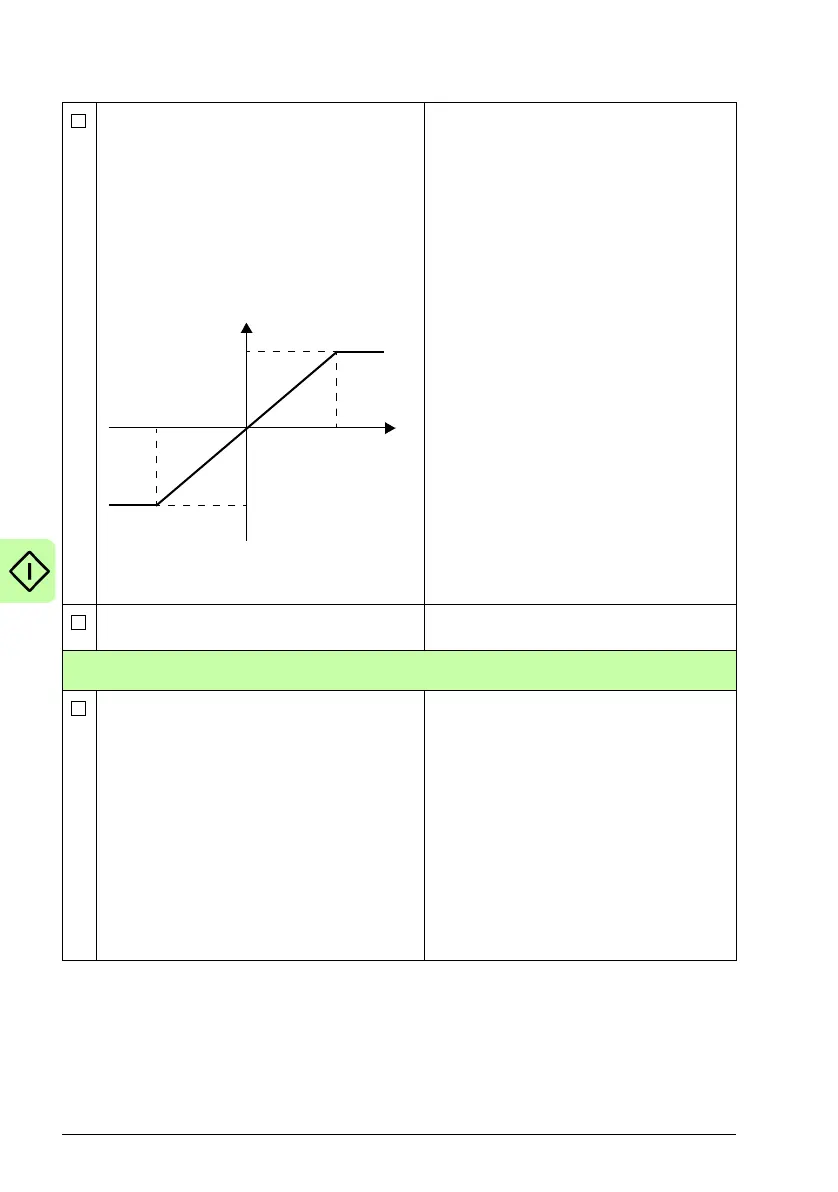

Configure analog outputs if used for drive
control:
Parameter 13.12 – select the source for
analog output AO1 (by default, motor speed
in rpm).
Parameters 13.17 and 13.18 – set low and
high source signal values that correspond to
the actual analog output values defined in
parameters 13.19 and 13.20.
13.12 AO1 source
13.17 AO1 source min
13.18 AO1 source max
13.19 AO1 out at AO1 src min
13.20 AO1 out at AO1 src max
Set desired source for the fault reset
command.
31.11 Fault reset selection
4 – Scaling settings
Set the maximum frequency value used to
define the acceleration ramp rate.
The initial frequency value is used to define
deceleration ramp rate (see parameter group
28 Frequency reference chain). The
frequency acceleration and deceleration
ramp times are therefore related to this value
(not to parameter 30.14 Maximum
frequency). Also defines the 16-bit scaling of
frequency-related parameters. The value of
this parameter corresponds to 20000 in
fieldbus, master/follower etc.
communication.
46.02 Frequency scaling
Source signal
AO (mA)
13.18
13.20
13.19
13.17
